Gocycle G2 KICKSTAND Assembly Manual

Hide thumbs Also See for G2 KICKSTAND:

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Assembly Manual
A
G
: G2 K
SSEMBLY
UIDE
ICKSTAND
Version 1.0
Installation of the G2 Kickstand

Advertisement

loading
Need help?

Need help?

Do you have a question about the G2 KICKSTAND and is the answer not in the manual?

Questions and answers

Related Manuals for Gocycle G2 KICKSTAND

Summary of Contents for Gocycle G2 KICKSTAND

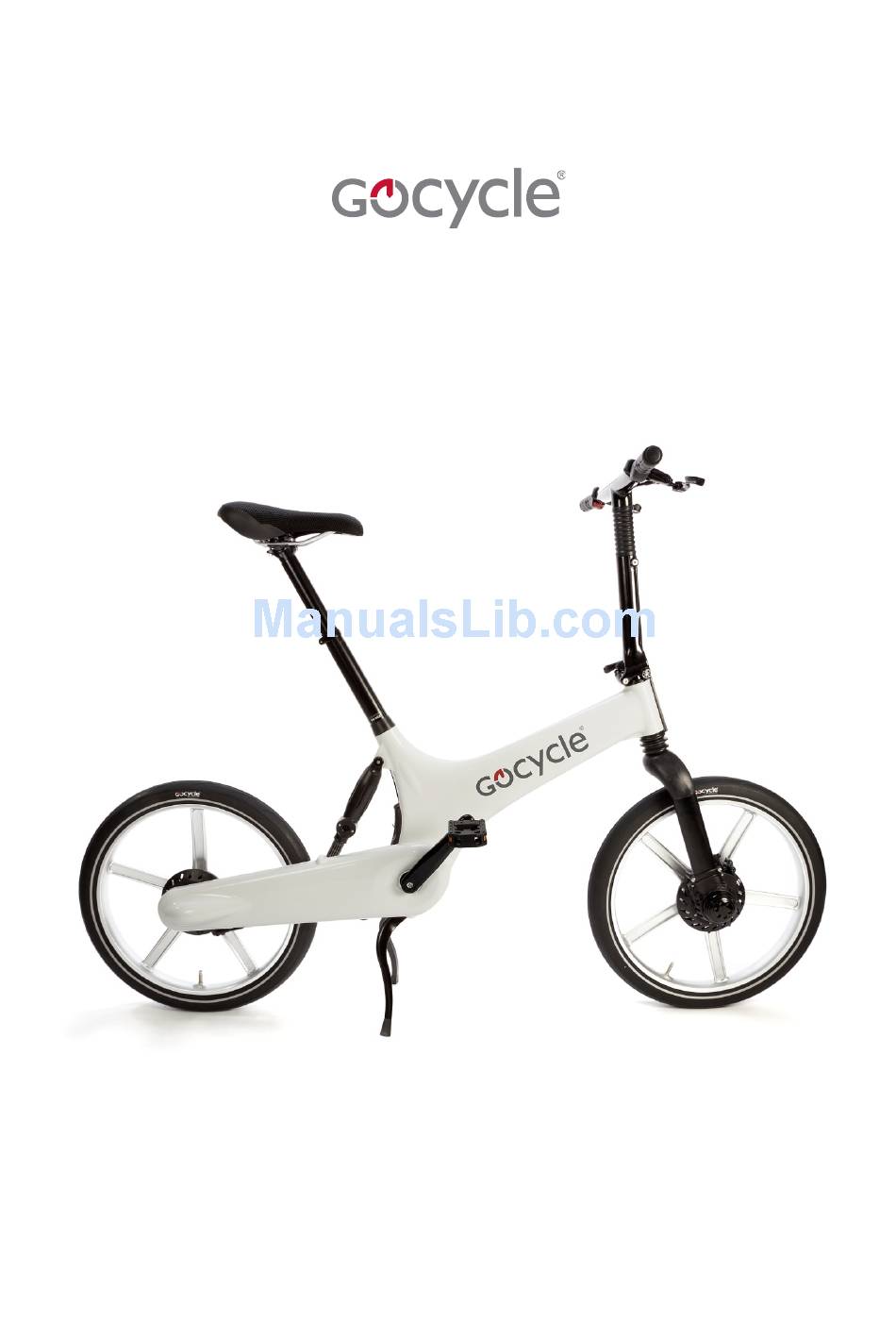

  • Page 1 : G2 K SSEMBLY UIDE ICKSTAND Version 1.0 Installation of the G2 Kickstand...

  • Page 2: Table Of Contents

    Assembly Guide: G2 Kickstand ONTENTS Overview ......................1   Parts List ......................1   Tool List ......................1   Battery Removal ................... 2     Kickstand Preparation ..................5     Kickstand Installation ..................6     Kickstand Adjustment ................... 10  ...

  • Page 3: Overview

    Assembly Guide: G2 Kickstand VERVIEW This assembly guide details installation of the G2 Kickstand. If you have any questions, or require any further assistance, please contact techsupport@gocycle.com. ARTS To successfully complete the procedure you will require the following parts: Part Code...

  • Page 4: Battery Removal

    SOFT, NON-MARKING SURFACE, E.G. CARPET, TO AVOID DAMAGE TO THE GOCYCLE DASHBOARD DISPLAY 1.1. For ease, invert the Gocycle so that it rests on its handlebars and saddle. Remove the PitstopWheels. 1.2. Ensure that the battery pack is in sleep (See Owner’s...
  • Page 5 Assembly Guide: G2 Kickstand 1.4. Remove both the black and red Anderson connectors from within the frame and unplug one at a time, as shown. 1.5. Locate the other Anderson connectors and unplug. 1.6. Ensure all cables are unplugged and none are trapped before continuing.
  • Page 6 Assembly Guide: G2 Kickstand 1.8. Completely remove the battery from the frame. © Karbon Kinetics Limited. All Rights Reserved.

  • Page 7: Kickstand Preparation

    Assembly Guide: G2 Kickstand 2. K ICKSTAND REPARATION 2.1. Inspect the stud location hole for any overspray of paint. If the hole is clear and free from paint, continue to step 3.1. 2.2. Affix tape to an 8mm drill bit positioned no more than 10mm from the tip.

  • Page 8: Kickstand Installation

    Assembly Guide: G2 Kickstand 3. K ICKSTAND NSTALLATION 3.1. Use the supplied stud installation wire and insert it through the stud locating hole. Leave a short length of wire protruding from the stud locating hole and a long length protruding from the rear of the frame, as shown.
  • Page 9 Assembly Guide: G2 Kickstand 3.4. Thread the stud installation wire through the Stand Rubber (A) and install over the stud as shown. 3.5. Open the legs of the G2 Kickstand (E), as shown. Thread the installation wire through the Kickstand body and install over the Kickstand Stud.
  • Page 10 Assembly Guide: G2 Kickstand 3.6. Now install the M8 SS Wave Spring (C) over the stud as shown. 3.7. Install the M8 Thin Nut SS (D) over the stud as shown. 3.8. Finger-tighten the installed M8 nut onto the Kickstand stud.
  • Page 11 Assembly Guide: G2 Kickstand 3.9. Insert the 3mm Allen key into the Kickstand Stud as shown. Use a 13mm spanner to tighten the nut. DO NOT TURN THE ALLEN KEY. Note: Tighten the nut until the wave spring is flat and the Kickstand does not rotate side to side.

  • Page 12: Kickstand Adjustment

    Assembly Guide: G2 Kickstand 4. K ICKSTAND DJUSTMENT You can adjust the speed at which the Kickstand closes if required. 4.1. Locate the bolts on the Kickstand main body. 4.2. Each bolt on each leg of the Kickstand must be adjusted independently using a 6mm Allen key.

  • Page 13: Battery Replacement

    Assembly Guide: G2 Kickstand 5. B ATTERY EPLACEMENT 5.1. Carefully insert the G2 battery into the frame. Ensure not to trap the two main power cables. 5.2. Before re-plugging the connectors ensure the battery pack is in See the SLEEP mode.
  • Page 14 Assembly Guide: G2 Kickstand 5.5. Ensure the connectors are fully closed as shown. 5.6. Carefully and neatly push the two Anderson connectors back into the Gocycle frame. 5.7. Re-attach the Battery Splash Cover and insert the battery securing screw. © Karbon Kinetics Limited. All Rights Reserved.
  • Page 15 IMPORTANT NOTE: THE ASSEMBLY STEPS MUST BE CARRIED OUT IN ORDER. FAILING TO DO SO MAY RESULT IN DAMAGE TO THE GOCYCLE. If you have any further queries or comments, please contact Gocycle Technical Support: techsupport@gocycle.com © Karbon Kinetics Limited. All Rights Reserved.
