GoMax Electronics CV-09 User Manual

Ypbpr/vga to vga converter/switch with audio
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CV-09
YPbPr/VGA to VGA Converter/Switch
with Audio
User Manual
Made in Taiwan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CV-09 and is the answer not in the manual?

Questions and answers

Related Manuals for GoMax Electronics CV-09

Summary of Contents for GoMax Electronics CV-09

  • Page 1 CV-09 YPbPr/VGA to VGA Converter/Switch with Audio User Manual Made in Taiwan...
  • Page 2 However, like all electronic equipments, the CV-09 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 3 Introduction The CV-09 takes and switches two video and stereo audio sources and displays one of them on a VGA monitor, plasma, LCD or a projector in high resolution formats. The CV-09 accepts both VGA and YPbPr inputs, and it converts YPbPr inputs into VGA outputs. Therefore, with only a press of the switch button, you can freely select between your PC and game consoles, such as PS3, Wii, XBOX, XBOX360, and DVD player.

  • Page 4: Package Content

    Fully compatible and ideal for DVD players and game consoles  Buffered VGA output for 60m (200ft) long range transmission  Handy stereo audio switch Package Content  1x CV-09  1x 5V 2A power adapter  1x User Manual Technical Specifications ...

  • Page 5: Front Panel

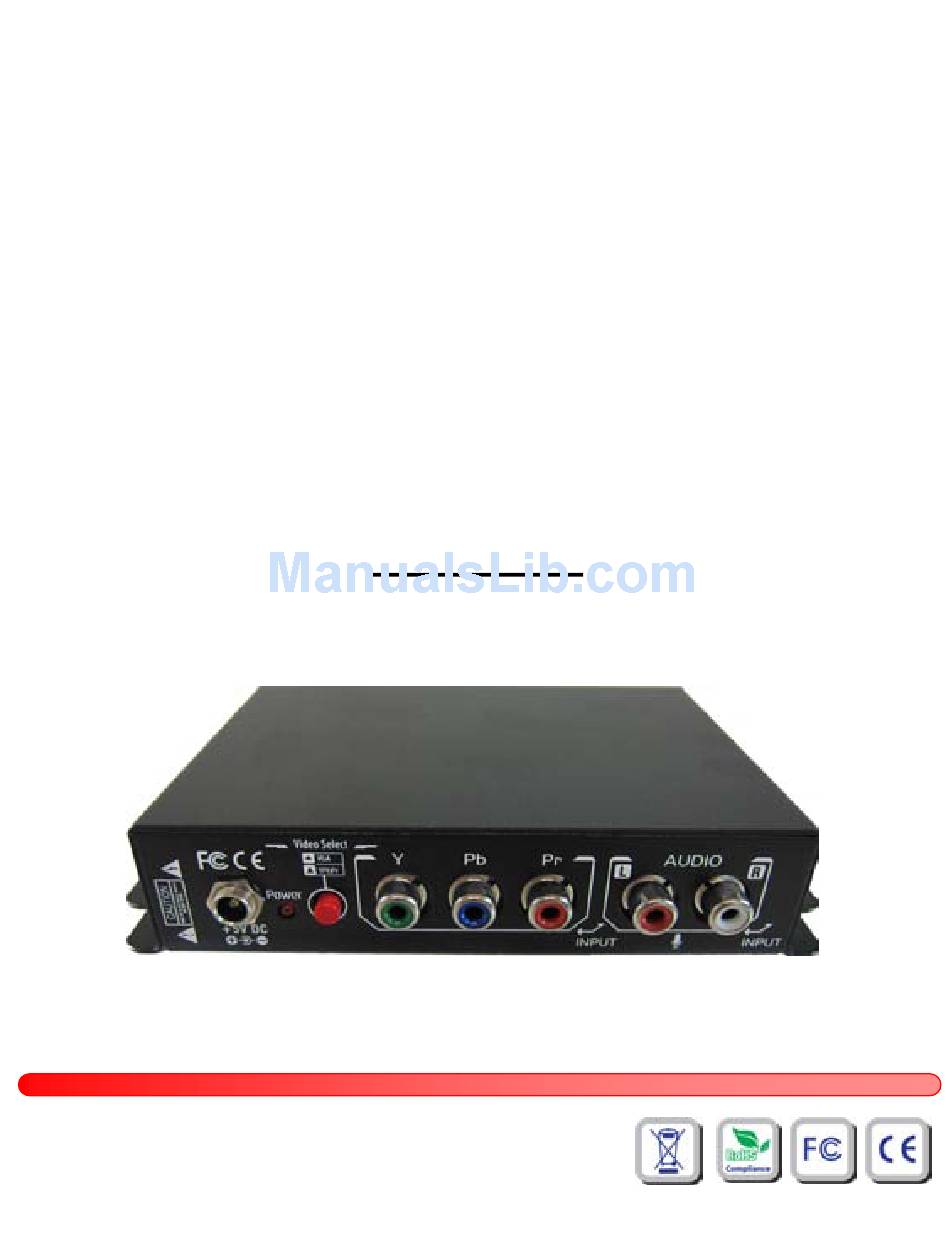

    Panel Descriptions Front Panel 1. Power jack 4. YPbPr component video input 2. Power LED indicator 5. YPbPr stereo audio input 3. VGA/YPbPr switch button ( : switch to YPbPr source; : switch to VGA source) Rear Panel 6. PC stereo audio earphone jack output 8.
  • Page 6 Audio in. 3. Plug in 5V DC power cord to the power jack, and power up the device. 4. Enjoy the convenience of CV-09! You can select VGA or YPbPr source at your will by pressing the switch button.
  • Page 7 Limited Warranty The SELLER warrants the CV-09 YPbPr/VGA to VGA Converter/Switch with Audio to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surges.
