Summary of Contents for GoMax Electronics SW-3108

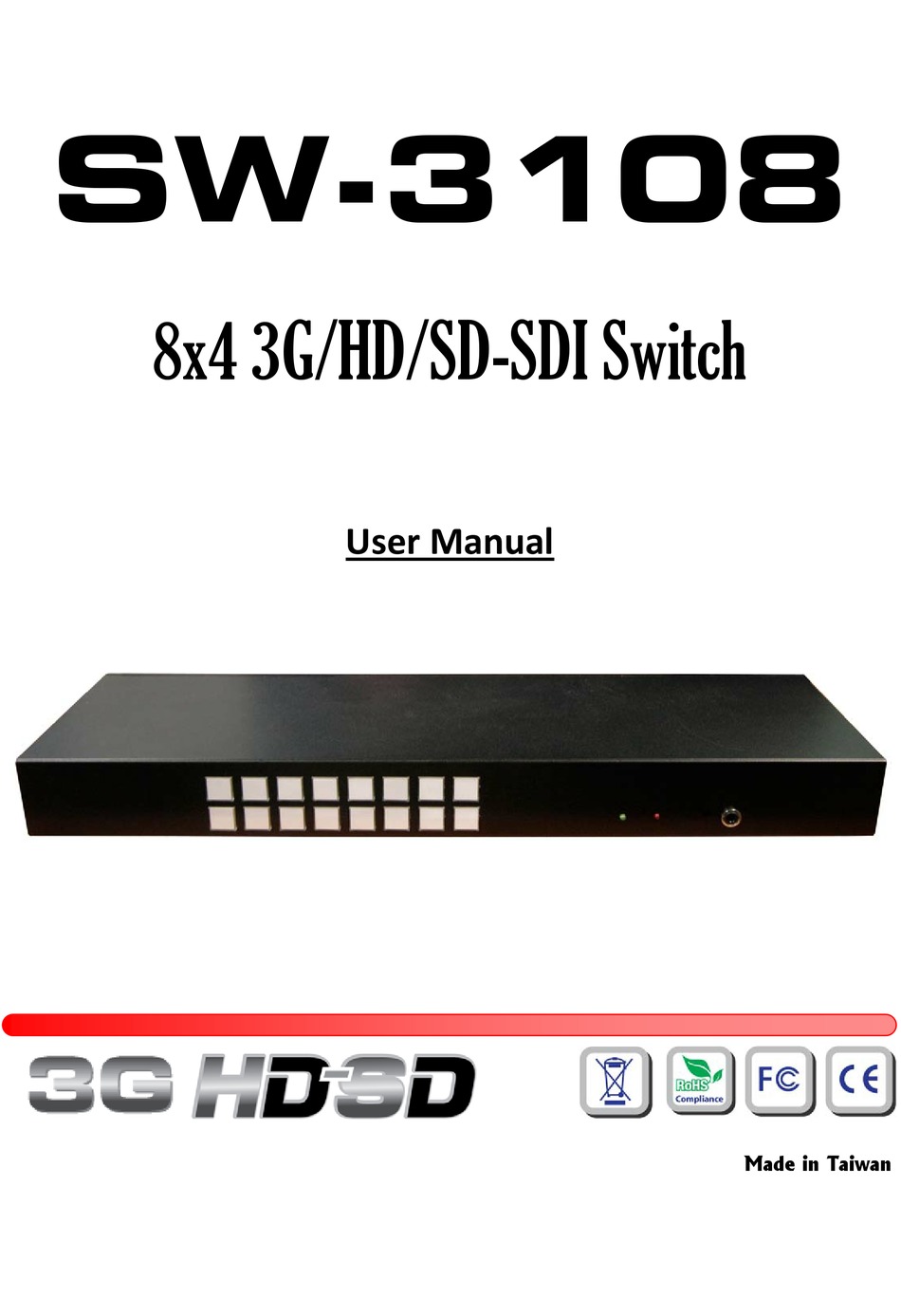

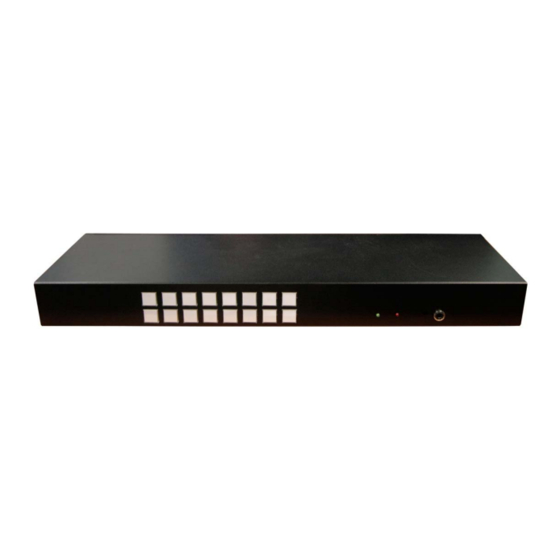

- Page 1 SW-3108 8x4 3G/HD/SD-SDI Switch User Manual Made in Taiwan...
- Page 2 The SW-3108 8x4 HD/SD-SDI Switch has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the SW-3108 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
- Page 3 Introduction This SW-3108 receives, equalizes, and reclocks* up to 8 SDI inputs, perfectly switches the desired input to SDI equipped monitors or receivers. The switch supports both HD/SD-SDI bit rates, and the re-transmitted quality is guaranteed. Through RS-232, IR remote, or front panel push button, the control of the SDI switch becomes versatile and easier.
- Page 4 Specifications & Package Contents Model Name SW-3052 SW-3082 SW-3108 SW-3116 Technical 16x4 matrix Role of usage 5x2 switch 8x2 matrix switch 8x4 switch switch SDI standards SD-SDI & HD-SDI SD-SDI & 3G HD-SDI Auto HD/SD-SDI detection SMPTE 259M (270Mbps / 360Mpbs) SMPTE 259M (270Mbps / 360Mpbs) Supported protocols SMPTE 292M / HDTV (1.485 &...
-
Page 5: Panel Descriptions
10 Watts [max] Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] 1x SW-3052 / SW-3082 / SW-3108 / SW-3116 1x IR remote controller Package Contents 1x 5V power adapter 1x User Manual The measurement results are from Tektronix VFM‐700 with SDI through 1m (3.3ft) long Belden 1694A. Panel Descriptions ... - Page 6 Rear Panel 8 9 10 Power switch 5V DC power jack RS-232 control port for PC control Synchronized loop out (add 75Ω terminator if not connect) 10. Synchronized signal input 11. 4 SDI output 8 SDI input ~ 5 ~...
-
Page 7: Ir Remote Control
Hardware Installation 1. Connect SDI enable equipments to the output of SW-3108. 2. Connect the SDI input sources to the inputs of SW-3108. 3. Plug power adapter cable into 5V DC power jack. 4. Use IR remote, RS-232, or front panel push button to switch between input channels. -
Page 8: Limited Warranty
Limited Warranty The SELLER warrants the SW-3108 8x4 HD/SD-SDI Switch to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surges.
