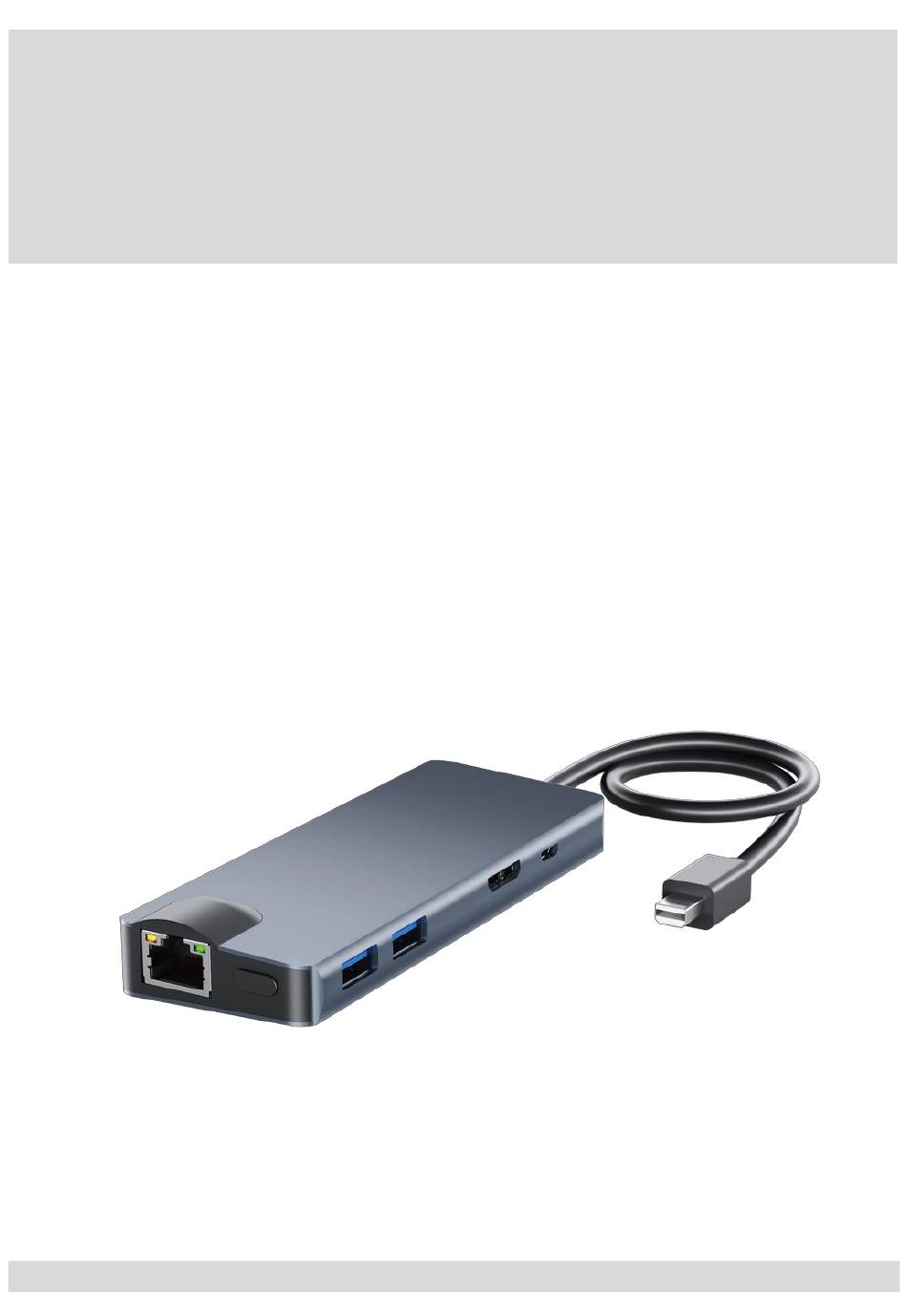

- Page 1 DS-2045E-PT Mini DisplayPort to HDMI or DisplayPort Dock with USB 3.0 LAN Hub User Manual rev: 200512 Made in Taiwan...
- Page 2 TABLE OF CONTENTS INTRODUCTION ........................ 1 FEATURES ........................1 PACKAGE CONTENTS ...................... 1 SPECIFICATIONS ......................2 PANEL DESCRIPTIONS ....................3 CONNECTION DIAGRAM ....................4 WARRANTY ........................5...
- Page 3 INTRODUCTION The DS-2045E-PT Mini DisplayPort to HDMI or DisplayPort Dock with USB 3.0 LAN Hub provides a professional way to convert Mini DisplayPort into either HDMI or DisplayPort outputs. It ensures Mini DisplayPort-equipped computers such as MacBook (NOT for MacBook 2015 line) or Surface Pro series computers will be compatible with HDMI or DisplayPort display.
- Page 4 SPECIFICATIONS Model Name DS-2045E-PT Technical Role of usage Mini DisplayPort Video Dock HDMI compliance HDMI 1.4 DisplayPort compliance DisplayPort 1.2a HDCP compliance Input Video bandwidth Single-link 600MHz [6.0Gbps] HDMI: up to 4K2K@30 Video support DP: up to 4K2K@60 Human body model — ±15kV [air-gap discharge] &...
- Page 5 PANEL DESCRIPTIONS RJ45 (GigaLAN): Connect to Ethernet network by Ethernet cable USB 3.0 Ports: Connect to USB devices such as mice, keyboards, and pen drives Micro USB 3.0 Type B: Connect to an available USB port of the computer Micro USB: Connect to +5V power supply (for external power if needed) Mini DisplayPort input: Connect to the Mini-DP port of the computer HDMI output: Connect to a HDMI display by HDMI Cable DisplayPort output: Connect to a DisplayPort display by DisplayPort Cable...
- Page 6 CONNECTION DIAGRAM...
- Page 7 WARRANTY The SELLER warrants the DS-2045E-PT Mini DisplayPort to HDMI or DisplayPort Dock with USB 3.0 LAN Hub to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order...
