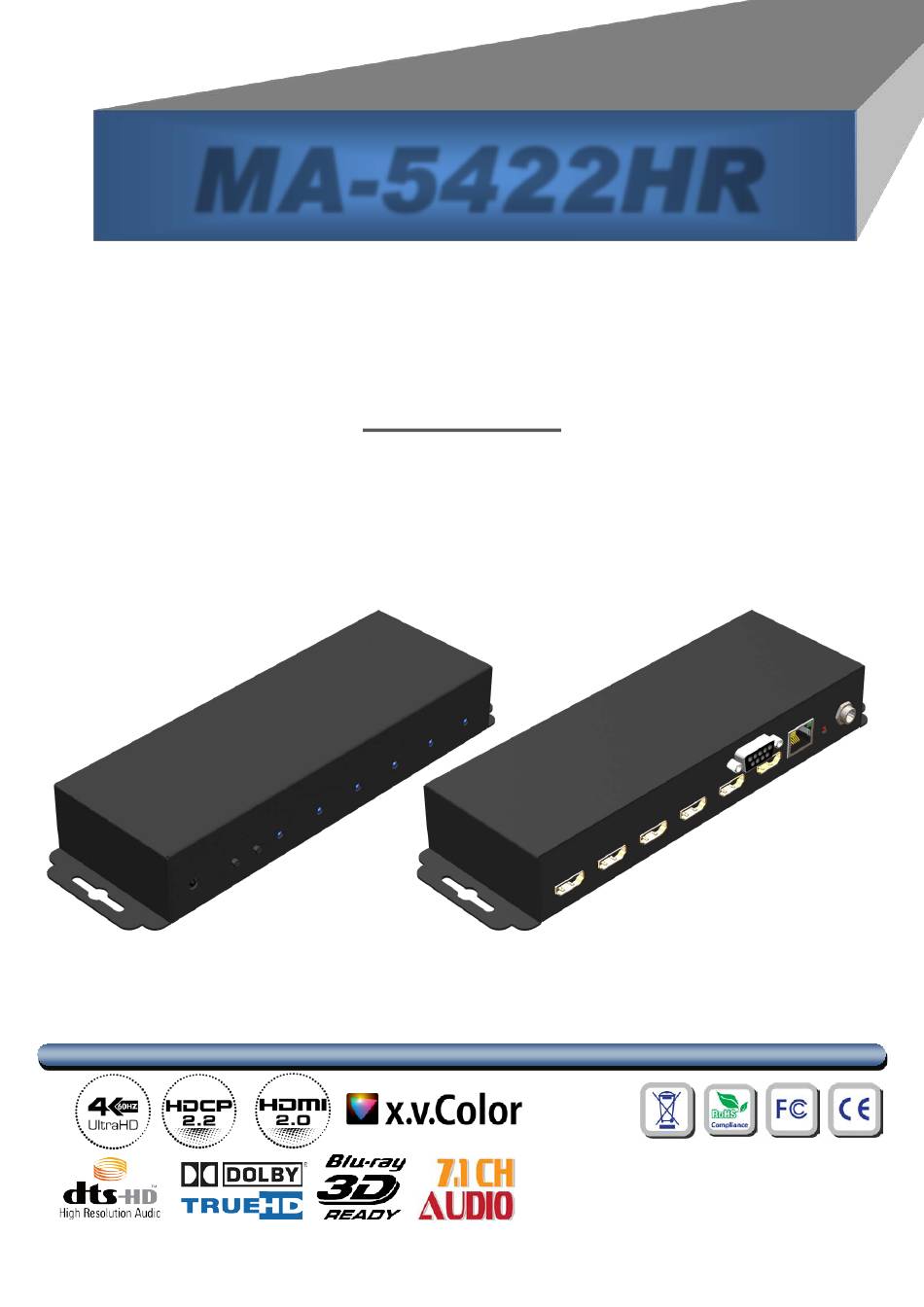

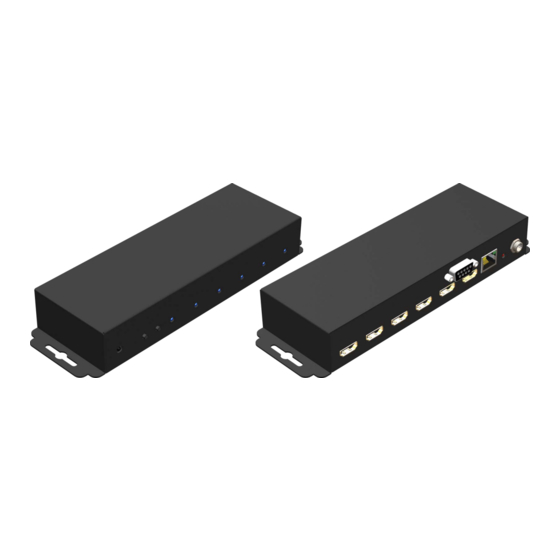

MA-5422HR
4x2 HDMI 2.0a Matrix Switcher
User Manual
rev: 161026
Made in Taiwan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MA-5422HR and is the answer not in the manual?

Questions and answers

Related Manuals for GoMax Electronics MA-5422HR

Summary of Contents for GoMax Electronics MA-5422HR

  • Page 1 MA-5422HR 4x2 HDMI 2.0a Matrix Switcher User Manual rev: 161026 Made in Taiwan...

  • Page 2: Table Of Contents

    However, like all electronic equipments, the MA-5422HR should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

  • Page 3: Introduction

    ** The video bandwidth of 4K2K@60 4:2:0 10bits (HDR) is 384MHz, and the 4K2K@60 4:4:4 8bits is 594MHz PACKAGE CONTENTS ● 1x MA-5422HR ● 1x DC 12V 2A power supply ● 1x IR Remote control (28 keys) ● 1x User Manual ●...

  • Page 4: Specifications

    SPECIFICATIONS Model Name MA-5422HR Technical Role of usage True 4x2 matrix 3D & 4K2K@60Hz HDMI compliance HDCP compliance HDCP 2.2 Video bandwidth Single-link 594MHz [18 Gbps] Video support Up to HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) Audio support Surround sound (up to 7.1ch) or stereo digital audio...

  • Page 5: Panel Descriptions

    PANEL DESCRIPTIONS Front Panel IR SENSOR: IR sensor for receiving the IR commands from IR remote Port 2 Channel Push Button: Select input channel Port 1 Channel Push Button: Select input channel Output Status LED: When user connect the display, the indicator LED will light (from the left to the right is output 2, output 1) Selected Source Status LED: When users use port channel push button, the indicator LED will show the selected source.

  • Page 6: Connection Diagram

    CONNECTION DIAGRAM...

  • Page 7: Operation Approach

    OPERATION APPROACH Method A: Push-in Button IN/OUT MAP (1) Use Port 1 or Port 2 Channel Push Button to select the source (2) Input1~4 can be selected in order Method B: IR Remote Control Button Function Standby mode Power on the matrix switcher MUTE Turn off output’s video and audio STATUS...
  • Page 8 2. Example of function key Operation Procedure Output Status Status + A~B (output 1~2) + Take 1. Press “STATUS” button Ex: Output 2 (Input 2) 2. Press number key “B” to select output 2 3. Press “TAKE” button Save Current Mapping Save + A~H (1~8 storage site) + Take 1.
  • Page 9 2. Control interface Power ON/Standby mode Control SW via RS-232 Control SW via Network COM port selection I/O Mapping Tab EDID Tab System Tab (1) I/O Mapping Tab  Mapping  Click the button on the checkerboard to select input and output port ...
  • Page 10 (2) EDID Tab  Learn EDID from default to input  Select default EDID (1-8 default EDID) 1. Ultra-HD(4K2K@60) – 8/10/12bit 3D HDR video & 7.1ch audio 2. Ultra-HD(4K2K@60) – 8/10/12bit 3D HDR video & 2ch audio 3. Ultra-HD(4K2K@30)(4K2K@60 420) – 8bit 3D HDR video & 7.1ch audio 4.
  • Page 11  Load EDID from file to input  Click “Load File” button to select the EDID file from computer  Select designated input  Click “Apply” button to load EDID file and learn to input  View EDID information  Select input or HDMI output ...
  • Page 12  Save Button  Save the IP address which is manually entered   Read the device’s MAC address information  Associate Code  The get an “associate code”. The device can use this code to pair with cloud server ...
  • Page 13 Method D: Cloud Control (Eagleyes) through Ethernet port Create Account The first time to use the Eagleyes service, please create a new account. Access Eagleyes (http://www.eagleyes.io) and click “Create new account”. 2. The Registration page will pop up and please fill in your email and password information to create your private account.
  • Page 14 Add Device to Eagleyes 1. Firstly, please make sure the device is connected to the Ethernet. Then please executing the software with device to get the association code (Note: the status of software is connected). 2. Access Eagleyes (http://www.eagleyes.io), and then log in your account on the right top corner. Click Add device to add the device which you just got its association code.

  • Page 15: Edid Learning

    EDID LEARNING The EDID learning function is to resolve audio and video playing issues at HDMI output port. Because the HDMI source devices and displays may have various level of capability in playing audio and video, the general principle is that the source device will output the lowest standards in audio format and video resolutions to be commonly acceptable among all HDMI displays.

  • Page 16: Warranty

    SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the MA-5422HR features and specifications is subject to change without further notice.
