  • Page 1 Minarc Operating manual • English Käyttöohje • Suomi Bruksanvisning • Svenska Bruksanvisning • Norsk Brugsanvisning • Dansk Gebrauchsanweisung • Deutsch Gebruiksaanwijzing • Nederlands Manuel d’utilisation • Français Manual de instrucciones • Español Instrukcja obsługi • Polski Инструкции по эксплуатации • По-русски...
  • Page 3 OPERATING MANUAL English...

  • Page 4: Table Of Contents

    CONTENTS PREFACE ......................... General .......................... Machine properties ....................About welding ......................MACHINE USE ....................Before commissioning the machine ............General view of the machine ................Distribution network ..................... Cable connections ....................Welding power selection and electrodes ..........Function controls and indicator lights ............

  • Page 5: Preface

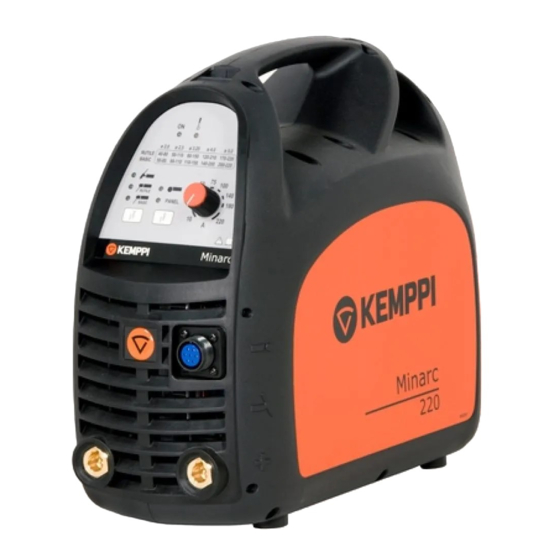

    MACHINE PROPERTIES The Minarc 220 is intended for use in a three-phase electric network. It is designed to be a compact and efficient direct current MMA/TIG machine. Extremely light in weight for its high 220 A output power, the machine is easy to carry to the work place with either the inbuilt moulded carry handle or the shoulder strap provided.

  • Page 6: Machine Use

    MACHINE USE BEFORE COMMISSIONING THE MACHINE Minarc 220 is packed in sturdy, custom-made packaging. However, always ensure that the equipment has not been damaged in transportation. Even so, make sure that all in-transport damage is reported to the machine supplier.

  • Page 7: General View Of The Machine

    environment and protect it from sand and dust during use and storage. The recommended operating temperature range is -20 to +40 degrees centigrade. Site the machine so that it does not come into contact with hot surfaces, sparks and welding spatter. Make sure the airflow to and from the machine is unrestricted.

  • Page 8: Cable Connections

    1.6 MVA. CABLE CONNECTIONS Connection to mains Minarc 220 is delivered with a five-metre mains cable that does not have a plug. NOTE! Check the fuse size in Technical specifications. The plug may be installed only by electrical contractors and installers authorised to perform such operations.
  • Page 9 It is also important to properly adjust the welding current so that the filler material and coating will melt properly and the welding is efficient. The table below presents the electrode sizes available with the Minarc 220 welding machine and the corresponding welding current values.

  • Page 10: Function Controls And Indicator Lights

    FUNCTION CONTROLS AND INDICATOR LIGHTS Standby indicator. In the VRD version, a VRD safe indicator (see The VRD feature) Overheating indicator. Welding process selection button (MMA or TIG). Current adjustment selector: panel adjustment or hand-held remote control. Welding current control knob. Welding value table Switching the machine on When you power on the machine, the green standby indicator and the main...

  • Page 11: En 2.6.1 Welding Current Regulation And Remote Control

    The torch voltage will remain on. 2.6.4 The VRD feature The VRD model of the Minarc 220 contains a voltage reduction device, which reduces the open-circuit voltage below 35 V. This reduces the risk of electric shock in particularly dangerous environments, such as closed or damp...

  • Page 12: Maintenance

    We recommend that you schedule a service inspection of your welding machine every six months. An authorised Kemppi service agent will inspect and clean your machine, ensuring that all power connections are tight and secure. Power connections can become loose and oxidised with frequent and high changes in temperature.

  • Page 13: Ordering Numbers

    ORDERING NUMBERS Product Part number Minarc 220 6102220 Minarc 220 VRD Reduced open-circuit voltage 30 V 6102220VRD Cables Welding cable 16 mm² 5 m 6184103 Welding cable 25 mm² 5 m 6184201 Welding cable 25 mm² 10 m 6184202 Earthing cable 16 mm²...

  • Page 14: Troubleshooting

    • Too low or high supply voltage. If the machine’s malfunction is not eliminated with these measures, contact KEMPPI service. TECHNICAL DATA Minarc 220 Connection voltage 3 ~, 50/60 Hz 400 V –20 %... +15 % Rated power at max. current 8.2 kVA (220 A/28.8 V)
  • Page 15 35 % ED 220 A/18.8 V 100 % ED 160 A/16.4 V Welding range 10 A/20.4 V – 220 A/28.8 V 10 A/10.4 V – 220 A/18.8 V Open circuit voltage 85 V (30 V in the VRD version) 60 V (30 V in the VRD version) Idle power 40 W Power factor at 100% ED...
  • Page 16 78681 EPONE CEDEX myynti.fi@kemppi.com info.ru@kemppi.com FRANCE Tel +33 1 30 90 04 40 KEMPPI SVERIGE AB KEMPPI, TRADING (BEIJING) COMPANY, Telefax +33 1 30 90 04 45 LIMITED Box 717 sales.fr@kemppi.com Room 420, 3 Zone, Building B, S-194 27 UPPLANDS VÄSBY No.12 Hongda North Street,...
