Page 1
1927570E Operation instructions english TTC 130 TTC 220 Gebrauchsanweisung deutsch TTC 130F TTC 200W Gebruiksaanwijzing nederlands TTC 160 TTC 250W TTC 160S TTC 250WS Manuel dutilisation français RTC 20 RTC 10...
Page 2: Table Of Contents
OPERATION DISTURBANCES ..................10 4.1. The most usual operation disturbances ................10 ORDERING NUMBERS ....................10 TECHNICAL DATA ......................11 © 2 – TTC 130, TTC 130F, TTC 160, TTC 160S, TTC 220, TTC 200W, COPYRIGHT KEMPPI OY TTC 250W, TTC 250WS/0109...
Page 3: Preface

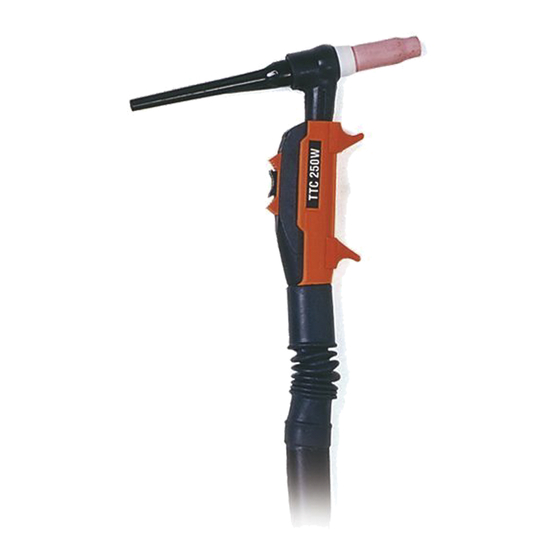

1.2. PRODUCT INTRODUCTION TTC 130, TTC 130F, TTC 160, TTC 160S, TTC 220, TTC 200W, TTC 250W and TTC 250WS are TIG welding torches designed for demanding use. They are suitable to be used with the Mastertig MLS welding machines.
Page 4: Selection Table For Consumable Partsttc 160, Ttc 220, Ttc 250W
Pay attention to fire safety regulations. Remove flammable or explosive materials from welding place. Always reserve sufficient fire-fighting equipment on welding place. Be prepared for © 4 – TTC 130, TTC 130F, TTC 160, TTC 160S, TTC 220, TTC 200W, COPYRIGHT KEMPPI OY TTC 250W, TTC 250WS/0109...
Page 5: Installation
TTC torches can be equipped with RTC 10 or RTC 20 torch regulators which are available as assessory. Regulators can be assembled in place of the original start-switch. © TTC 130, TTC 130F, TTC 160, TTC 160S, TTC 220, TTC 200W, TTC 250W, – 5 COPYRIGHT KEMPPI OY TTC 250WS/0109...
Page 6: Adjustment Of Torch Body And Grips
You can also easily remove one or both of the grips through the front end of the handle. © 6 – TTC 130, TTC 130F, TTC 160, TTC 160S, TTC 220, TTC 200W, COPYRIGHT KEMPPI OY TTC 250W, TTC 250WS/0109...
Page 7: Choice Of Electrode Size And Flow Amount Of Shielding Gas
Ratio of sharpening length to electrode diameter: I = 1...5 x d © TTC 130, TTC 130F, TTC 160, TTC 160S, TTC 220, TTC 200W, TTC 250W, – 7 COPYRIGHT KEMPPI OY TTC 250WS/0109...
Page 8: Welding
You can grind the electrode partly at its tip at which the tip will be better ball-shaped and the arc more steady. © 8 – TTC 130, TTC 130F, TTC 160, TTC 160S, TTC 220, TTC 200W, COPYRIGHT KEMPPI OY TTC 250W, TTC 250WS/0109...
Page 9: Projection Of Electrode
Frequent bending of neck body of torch may cause damage of gas or liquid channels. Length adjustment of neck body doesn’t work on bent neck. © TTC 130, TTC 130F, TTC 160, TTC 160S, TTC 220, TTC 200W, TTC 250W, – 9 COPYRIGHT KEMPPI OY TTC 250WS/0109...
Page 10: Operation Disturbances
TTC 200W TTC 250W TTC 250WS 627022004 627020504 627025504 627025704 627022008 627020508 627025508 627025708 627022016 627020516 627025516 627025716 © 10 – TTC 130, TTC 130F, TTC 160, TTC 160S, TTC 220, TTC 200W, COPYRIGHT KEMPPI OY TTC 250W, TTC 250WS/0109...
Page 11: Technical Data
Make sure that the torch being in your use is designed for max. welding current needed by you. © TTC 130, TTC 130F, TTC 160, TTC 160S, TTC 220, TTC 200W, TTC 250W, – 11 COPYRIGHT KEMPPI OY TTC 250WS/0109...
Page 12
KEMPPI OY KEMPPI (U.K) Ltd. PL 13 4-6 Sergeants Way FIN – 15801 LAHTI Elms Industrial Estate FINLAND BEDFORD, MK 41 OEH Tel (03) 899 11 ENGLAND Telefax (03) 899 428 Tel (01234) 213 581 www.kemppi.com Telefax (01234) 215 128 e-mail: sales.uk@kemppi.com...
