Oil Pump Components

PUMP MOUNT
PUMP MOTOR
PUMP HEAD
COUPLING
CAUTION: WHEN REPLACING THE HEAD, MAKE SURE TO TIGHTEN THE LOCK SCREWS ON THE
COUPLING LAST (AFTER THE PUMP HEAD BOLTS HAVE BEEN TIGHTENED) SO THE PUMP AND
MOTOR BEARINGS ARE NOT COMPRESSED AND DAMAGED.
PUMP HEAD
STRAINER COVER BOLT GASKET
COVER COVER
GASKET BOLT
CAUTION: WHEN CLEANING THE PUMP HEAD STRAINER, INSTALL A NEW GASKET SO THE PUMP
HEAD IS AIRTIGHT. IF THE PUMP HEAD STRAINER IS CLOGGED, MAKE SURE TO CLEAN YOUR TANK
TO AVOID FURTHER CLOGGING.

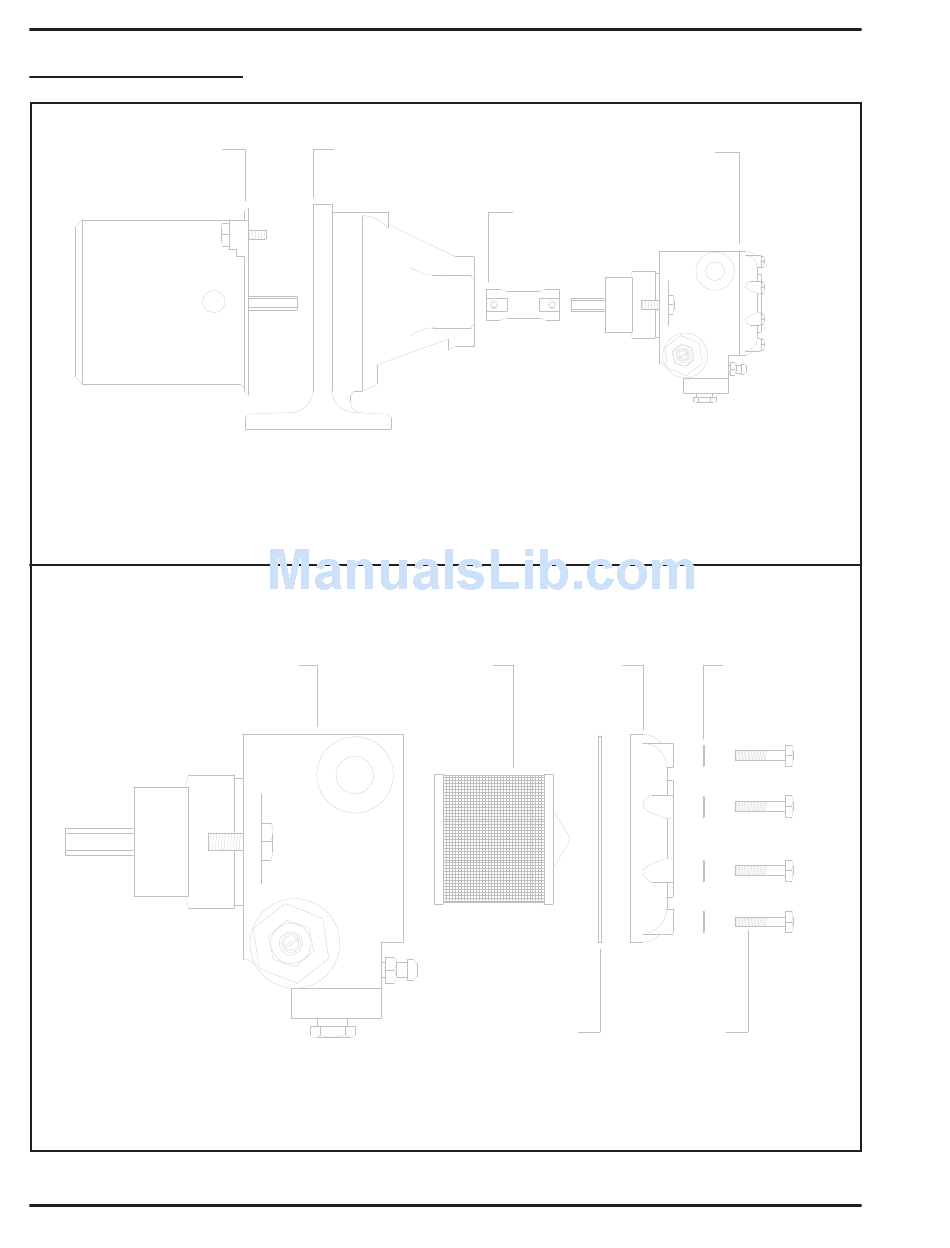

FIGURE A5 - Oil Pump Components
