Installing the Burner (continued)

Mounting the Burner on the Hinge Bracket

ATTENTION: Burner tube components (e.g. electrodes and retention head) are factory set. Handle the
burner with extreme care so that burner components are not damaged.
1. Remove the nut from the bolt on the mounting flange of the furnace cabinet, and set it aside for
later use.
2. Lift the burner into position so the burner hinge plate is mounted on the hinge bracket on the
furnace cabinet.
3. Carefully swing the burner so the retention head enters the throat of the furnace.
4. Check the clearance between the retention head and the furnace throat. There must be at least
1/8" clearance, so the retention head is not "bumped" as you swing the burner into firing
position.
NOTE: If the retention head "bumps" the furnace throat, adjust the hinge bracket bolts
as follows:
• While supporting the burner, slightly loosen the two (2) hinge bracket bolts.
• Carefully re-position the burner so it swings freely into its firing position.
• With the burner in its firing position, re-tighten the hinge bracket bolts.

Installing the Connector Block, Oil Line Tubing, and Air Line Tubing

Installing the Connector Block on the Furnace Door

For Model CB-1400 Only:
1. Refer to Figure 3K.
2. Install the mounting bracket on the furnace cabinet
using the two (2) bolts supplied.
3. Install the connector block on the mounting bracket
using the two (2) carriage bolts supplied.
4. Remove and discard the red caps and plugs from the
fittings and ports on the connector block. DO NOT
allow any dirt/debris to enter these components
during furnace assembly.
For Models CB-1800 and CB-2800:
1. Refer to Figure 3L.
2. Use the two (2) bolts to install the aluminum
connector block onto the furnace cabinet.
3. Remove and discard the red caps and plugs from the
fittings and ports on the connector block. DO NOT
allow any dirt/debris to enter these components
during furnace assembly.
Operator's Manual: Models CB-1400, CB-1800, and CB-2800
SWIVEL ASSEMBLY
MOUNTING BRACKET
CONNECTOR BLOCK
DETAIL OF MOUNTING BRACKET AND
CONNECTOR BLOCK ON CB-1400
MOUNTING
BRACKET
CONNECTOR
DETAIL OF OIL LINE, AIR LINE INSTALLED

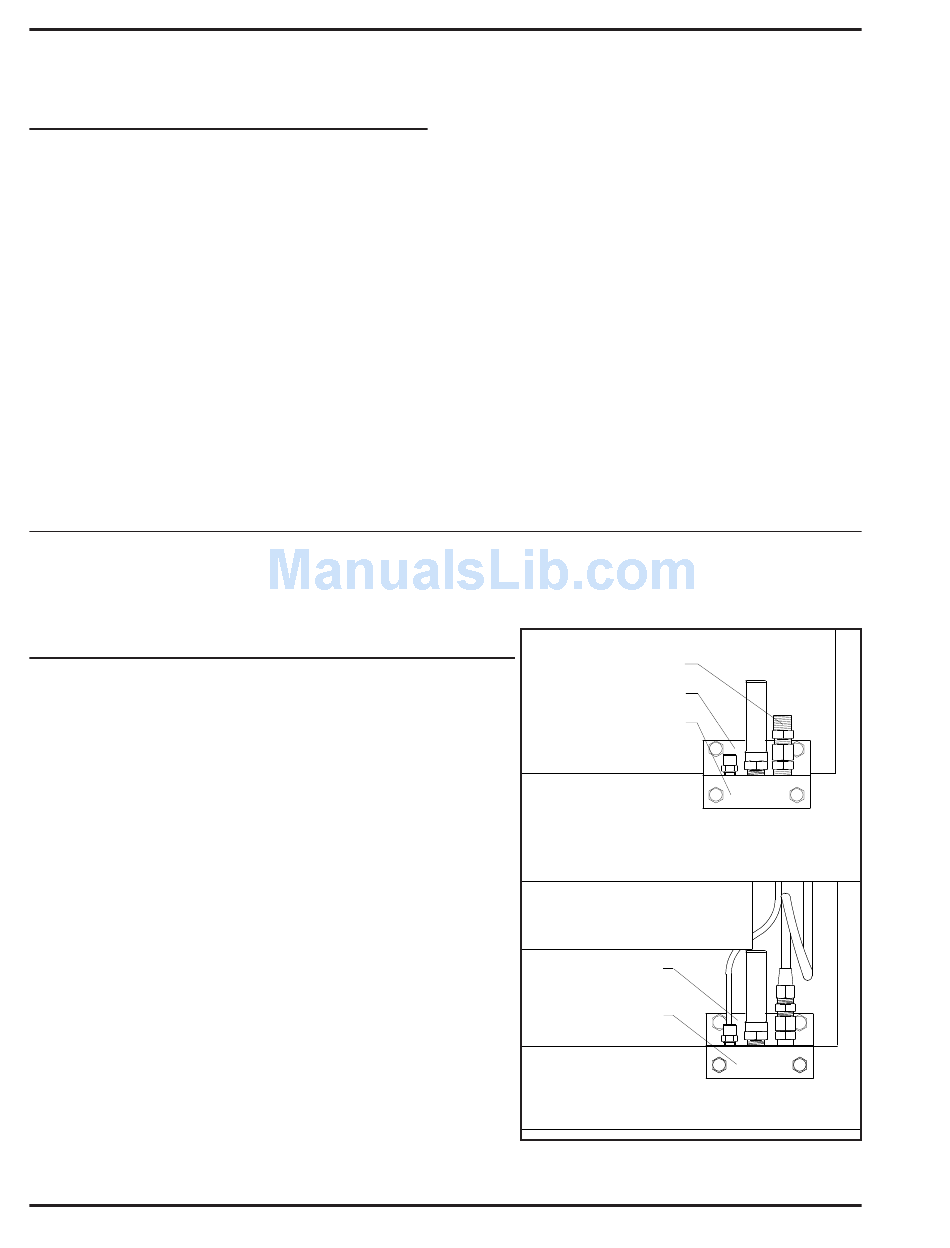

Figure 3K - Installation of Connector
Block (CB-1400 only)
3-14
BLOCK
ON CB-1400
