Unit Heater Models: Installing the Fan Assembly

NOTE: The following information on the installation of the fan assembly applies to Unit
Heater Models (CB-1400 or CB-1800 or CB-2800) only. If you have a Central Furnace
Model, refer to the appropriate information later in this section for installation of the
blower assembly.
CAUTION: Ducting any Unit Heater Furnace is not
permitted. See Section 4 for additional information.

Installing the Fan Assembly

(All Unit Heater Models)
1. Refer to Figure 3D.
2. Attach the fan assembly to the furnace
cabinet using the six hex-head bolts.
3. Make sure that fan blade is centered in the
round opening on the cabinet. Spin the fan
blade to check that it spins freely.
4. Remove the cover of the electrical junction
box.
5. Attach the fan motor electrical cable to the
electrical junction box.
6. Connect the fan motor wires according to the
wiring schematic provided in Appendix B at
the back of the manual.
Installing the Fan Brace
(CB-1800 and CB-2800 only)
NOTE: These instructions apply to Unit Heater Models
CB-1800 and CB-2800 only. Unit Heater Model CB-1400
does not require a fan brace.
1. Refer to Figure 3E.
2. Hook the fan brace end with the larger
loop over the fan guard strut.
3. Check that the fan brace lines up with the mounting
tab on the fan motor.
4. Attach the fan brace to the mounting tab using the
bolt and nut provided. Make sure the motor is
held firmly in place by the fan brace to prevent fan
vibration. DO NOT over-tension the motor.
5. Check that the fan blades spin freely.
Operator's Manual: Models CB-1400, CB-1800, and CB-2800

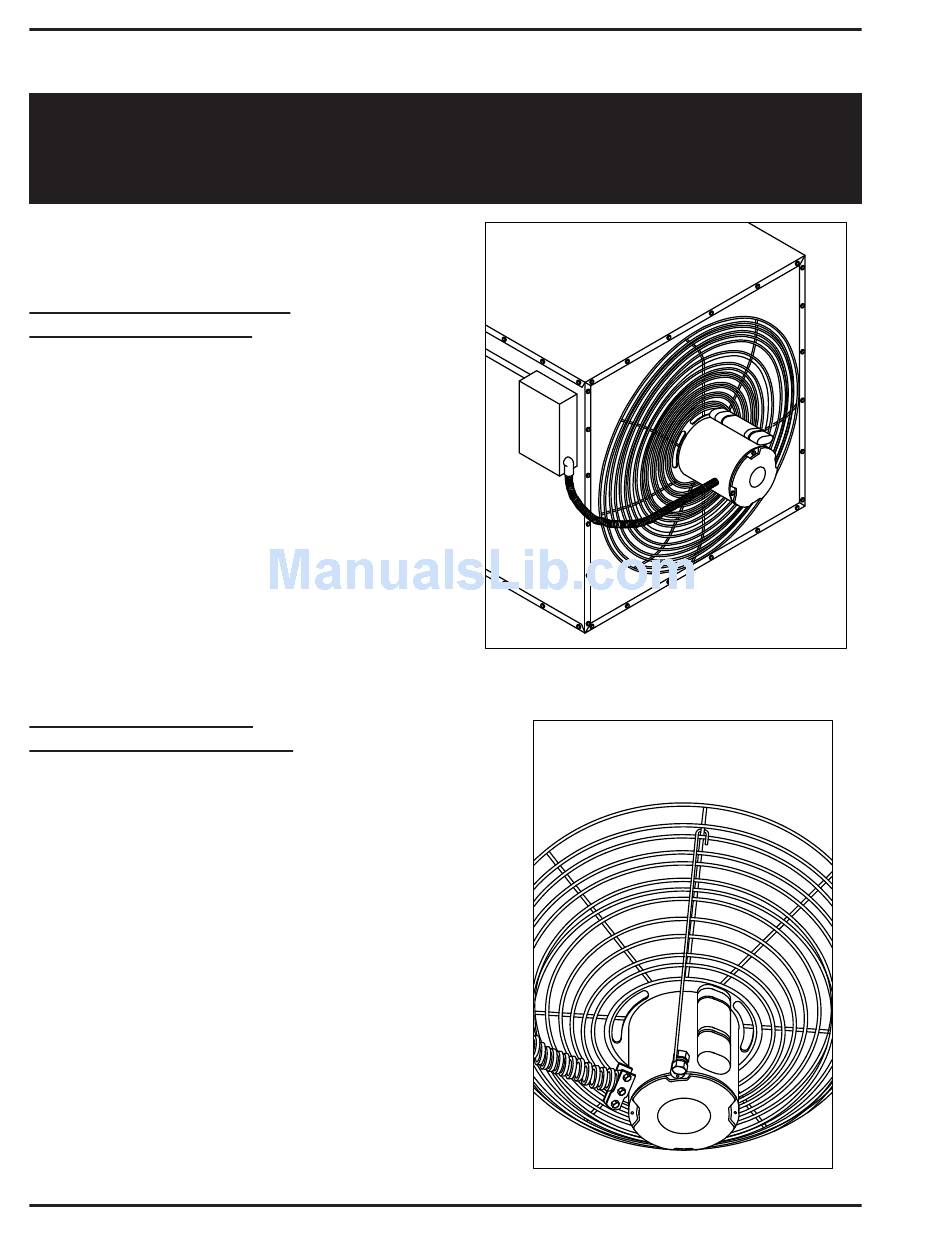

FIGURE 3D - Fan Installed on
Furnace Cabinet
FIGURE 3E - Fan Brace Installed
3-6
