Summary of Contents for Redarc SBC1205

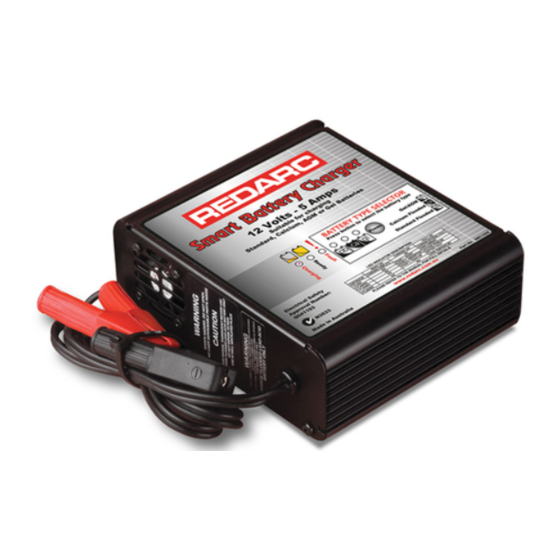

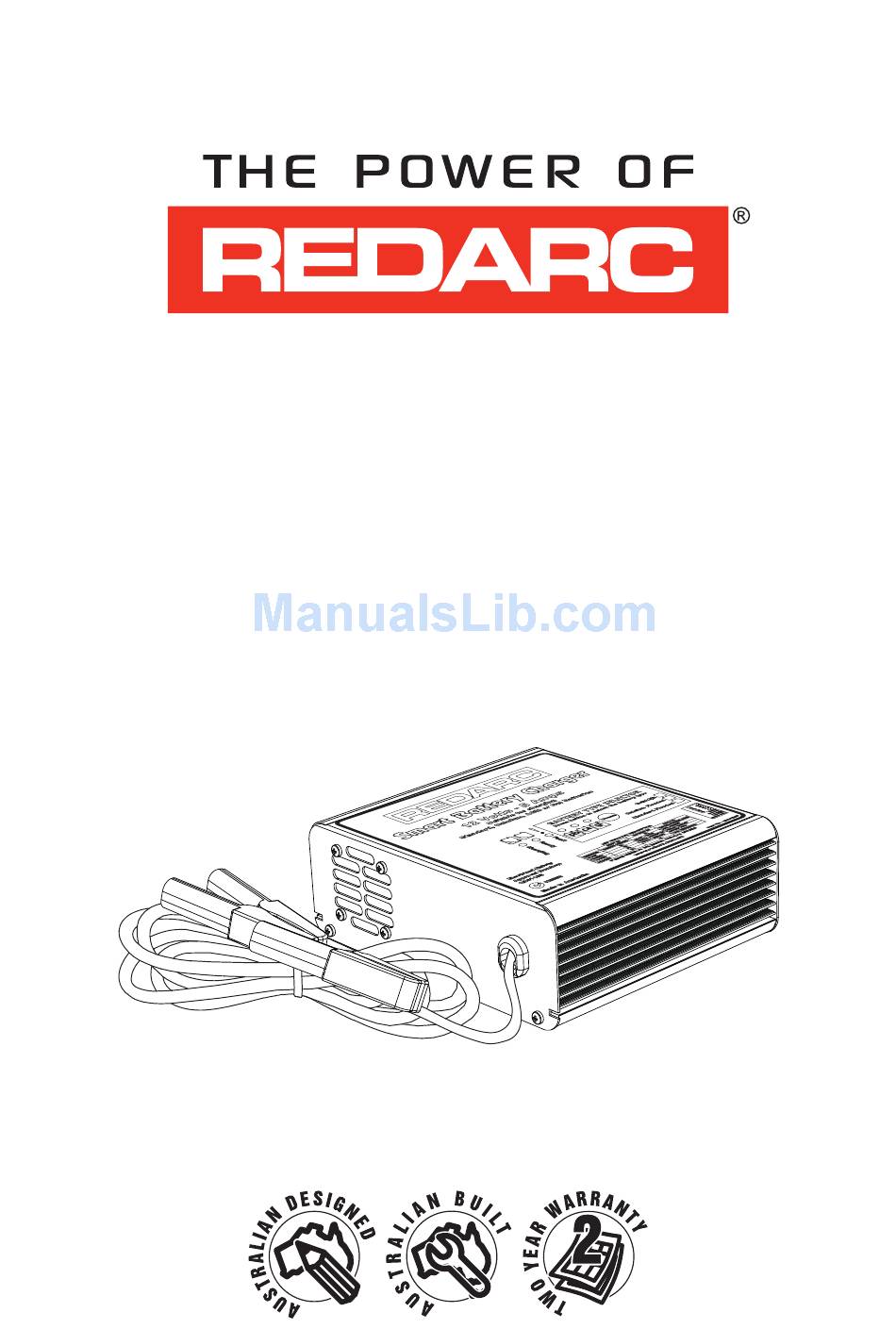

- Page 1 Multi-stage Smart Battery Chargers SBC1205, SBC24025...
-
Page 2: Warnings And Safety Instructions
THE SMART BATTERY CHARGER The SBC1205 & SBC24025 are “set and forget” four stage chargers that automatically bring and maintain 100% charge to Lead Acid and Calcium content batteries. Being Smart Battery Chargers, they are controlled by a microprocessor, which is constantly checking the charging process. A battery will last longer and charge faster when charged using the Four Stage process. -
Page 3: Table Of Contents
4.3. Fault Indicator (Red) 3 Precautions for Operation 4 Other Info 1. Charging Time & Battery Capacity 2. Calcium Batteries 5 Two Year Warranty Specifi cations SBC1205 SBC24025 AC Input Voltage Range 216-265V AC, 50Hz 216-265V AC, 50Hz Input Fusing 2A Slow Blow... -
Page 4: Key Features
KEY FEATURES • Charges Standard, Calcium, AGM or Gel Lead Acid batteries (User Selectable via push button switch) • Reverse polarity connection protection, charging commences after the battery has been connected correctly • Output short circuit protection • Battery overcharge protection •... -
Page 5: Operation
OPERATION The Display Panel The Display Panel features 3 Charging Status LEDs, 3 Battery type indication LEDs and 1 Selector Button as outlined above. • Charging ORANGE LED • Ready GREEN LED • Fault RED LED • Standard Lead Acid YELLOW LED •... -
Page 6: Indication
OPERATION appears like a fault and terminate the charging cycle. Small loads such as the loads drawn by vehicle electronics with the ignition turned off do not present a problem to normal operation. The charging cycle consists of a number of stages as described over the page, and when completed remains in a fl... -
Page 7: Charging Indicator (Orange)
OPERATION 2.4.1 Charging indicator (Orange) This indicator is used during the fi rst three stages of charging (Boost, Absorption and Equalise), and fl ashes at different rates to indicate the charging mode. Boost Mode: Orange indicator ON-single fl ash. This mode delivers the bulk charge to the battery by delivering maximum constant current. -
Page 8: Fault Indicator (Red)
Red fl ashing LED. Possible faults are; Continuously on - Hardware failure detected: The SBC1205 failed its self-test on power up. The unit should be returned to the supplier for inspection. One Flash - Over current detected: An excessive current will cause this fault. -
Page 9: Precautions For Operation
PRECAUTIONS FOR OPERATION • Ensure the correct battery type has been selected before charging begins. • Before connecting or disconnecting the SBC to a battery, ensure that it is disconnected from the 240VAC supply. • NOTE disconnecting the battery from the vehicle will cause some components in the vehicle to lose stored memory or information, such as time on your stereo. -
Page 10: Other Info
OTHER INFO Charging Time & Battery Capacity The charging time is dependant on a number of conditions including the ambient temperature and the general condition or age of the battery. However it is primarily dependant on how many Amp-Hours need to be put back into the battery to restore full charge, rather than the battery capacity itself. -
Page 11: Two Year Warranty
Friendly, personalised, professional service and product support In the unlikely event that a technical issue arises with a Redarc product, customers are encouraged to initially contact the Redarc Technical Support Team on (08) 8322 4848 In the unlikely event that a technical issue arises with a Redarc product, customers are encouraged to initially contact the Redarc Technical Support Team on (08) 8322 4848 or or power@redarc.com.au... - Page 12 Free technical assistance! please contact Redarc Electronics 23 Brodie Road North, Lonsdale SA (08) 8322 4848 power@redarc.com.au www.redarc.com.au Copyright © 2012 Redarc Electronics Pty Ltd. All rights reserved. WARSBC - REV1 www.redarc.com.au...
