Axel Oxygen 5 Digital User Manual

Broadcast audio mixing console
Hide thumbs Also See for Oxygen 5 Digital:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
User Manual
Broadcast Audio Mixing
Console
(Rev. 2.6 ENG)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Oxygen 5 Digital and is the answer not in the manual?

Questions and answers

Related Manuals for Axel Oxygen 5 Digital

Summary of Contents for Axel Oxygen 5 Digital

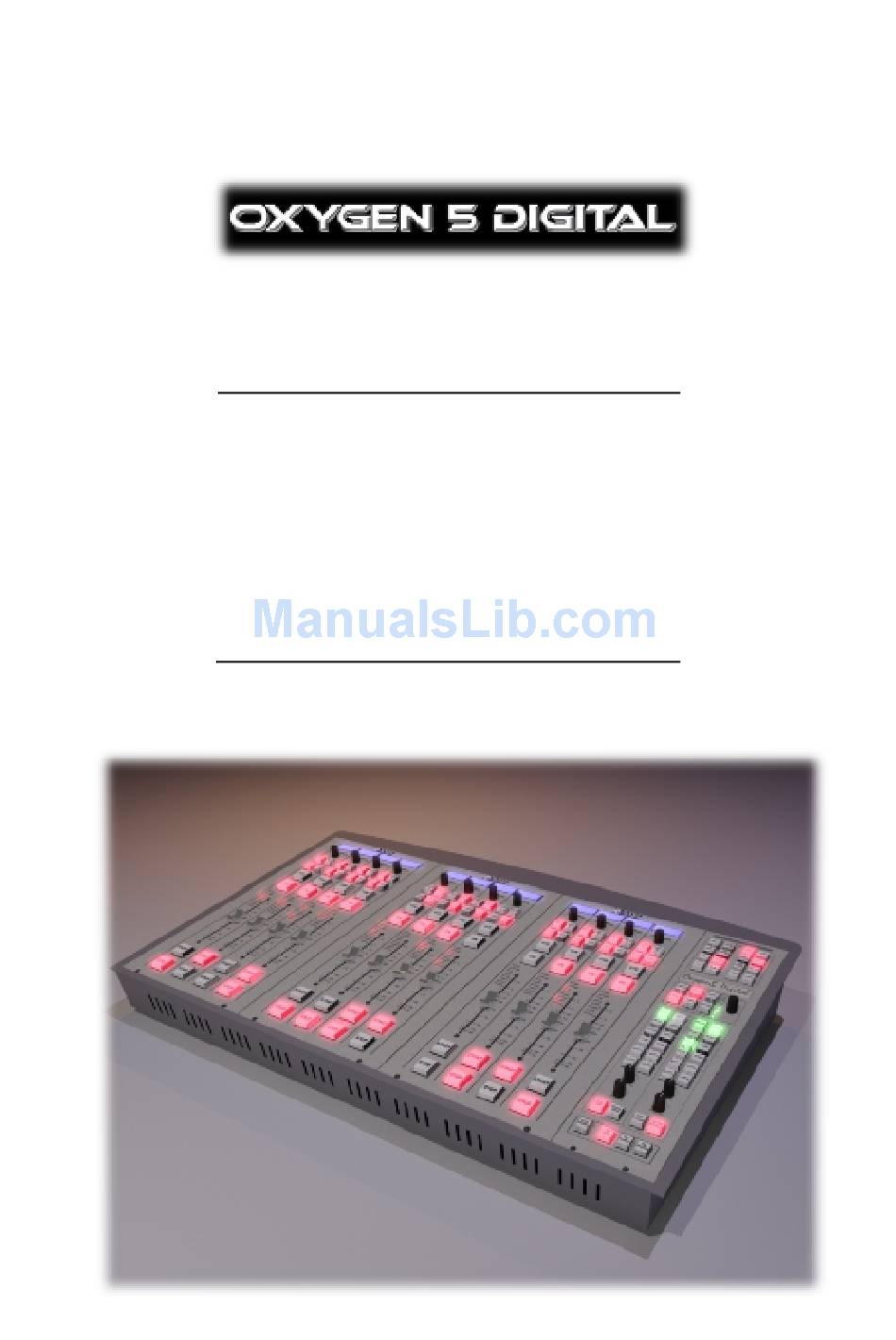

  • Page 1 User Manual Broadcast Audio Mixing Console (Rev. 2.6 ENG)
  • Page 2 Table of contents Main Office BOLOGNA: Via Caduti Di Sabbiuno 6/F 40011 Anzola Emilia - Bologna - Italy Tel. +39 051 736555 - Fax. +39 051 736170 Regional Office BERGAMO: Via Italia 1 – 24030 Medolago (Bg) – Italy Tel. +39 051 736555 - Fax. +39 051 736170 e-mail: info@axeltechnology.com - w eb site:...

  • Page 3: Table Of Contents

    VENTILATION INTRODUCTION SYS TEM OVERVIEW YSTEM PARTS OMMUNICAT ION EAT URES AND HIGHLIGHT S RINCIPLE OF OPERAT ION 3.4.1 Oxygen 5 Digital system 3.4.2 Mixing console CONTROL SURFACES OXYGEN 5 DIGITAL ENGINE IP/C LOCK CONFIGURAT ION LOBAL CONFIGURAT ION IX BUSS CONFIGURAT ION...
  • Page 4 OVERALL 10.4 DIMENSIONS LIST OF FIGURES LIST OF TABLES DECLAR ATION OF CONFORMITY PRODUCT SAFETY DISCLAIMER APPENDIX A - NETWORK DESIGN FOR OXYGEN 5 DIGITAL 16.1 ET WORK LEVELS 16.2 XYGEN IGITAL ET WORK IMPLEMENT AT ION 16.3 ET WORK DESIGN 16.3.1...

  • Page 5: Safety Warnings / Istruzioni Per La Sicurezza

    SAFETY WARNINGS / ISTRUZIONI PER LA SICUREZZA SAFETY WARNINGS / ISTRUZIONI PER LA SICUREZZA SAFETY WARNINGS CONSIGNES DE SÉCURITÉ IMPORTANTES ISTRUZIONI IMPORTANTI PER LA SICUREZZA WICHTIGE SICHERHEITSHINWEISE INSTRUCCIONES IMPORTANTES DE SEGURIDAD (Rel. 1.3) FOREWORD For your ow n safety and to av oid invalidation of the warranty all text marked w ith these Warning Symbols should be read carefully.

  • Page 6: Safety Warnings

    SAFETY WARNINGS SAFETY WARNINGS The installation and servicing instructions in this manual are for use by qualified personnel only. Read All Instructions. All safety and operating instructions must be read before operating the product. They also must be retained for future reference, as it contains a number of useful hints for determining the best combination of equipment settings for Yr particular application.

  • Page 7: Consignes De Sécurité Importantes

    CONSIGNES DE SÉCURITÉ IMPORTANTES CONSIGNES DE SÉCURITÉ IMPORTANTES Lire ces consignes Conserv er ces consignes Observer tous les avertissements Suiv re toutes les consignes Ne pas utiliser cet appareil à proximité de l’eau Ne pas obstruer les ouvertures de ventilation. Installer en respectant les consignes du fabricant Ne pas installer à...

  • Page 8: Istruzioni Importanti Per La Sicurezza

    ISTRUZIONI IMPORTANTI PER LA SICUREZZA ISTRUZIONI IMPORTANTI PER LA SICUREZZA Leggere le presenti istruzioni Conserv are queste istruzioni Osservare tutte le avvertenze Seguire scrupolosamente tutte le istruzioni Non usare questo apparecchio in prossimità di acqua Non ostruire alcuna apertura per il raffreddamento. Installare l’apparecchio seguendo le istruzioni Non installare l'apparecchio accanto a fonti di calore quali radiatori, aperture per l'afflusso di aria calda, forni o altri apparecchi (amplificatori inclusi) che generino calore Non rimuovere il terminale di connessione a terra sul cordone di alimentazione: esso ha lo scopo di...

  • Page 9: Wichtige Sicherheitshinweise

    WICHT IGE SICHERHEITSHINWEISE WICHTIGE SICHERHEITSHINWEISE Diese Hinw eise LESEN Diese Hinw eise AUFHEBEN Alle Warnhinweise BEACHTEN Alle Anw eisungen BEFOLGEN Dieses Gerät NICHT in der Nähe v on Wasser v erw enden KEINE Lüftungsöffnungen v erdecken. Gemäß den Anweisungen des Herstellers einbauen Nicht in der Nähe von Wärmequellen, wie Heizkörpern, Raumheizungen, Herden oder anderen Geräten (einschließlich Verstärkern) installieren, die Wärme erzeugen Die Schutzfunktion des Schukosteckers NICHT umgehen.

  • Page 10: Instrucciones Importantes De Seguridad

    INSTRUCCIONES IMPORTANTES DE SEGURIDAD INSTRUCCIONES IMPORTANTES DE SEGURIDAD LEA estas instrucciones CONSERVE estas instrucciones PRESTE ATENCION a todas las advertencias. SIGA todas las instrucciones NO utilice este aparato cerca del agua NO obstruya ninguna de las aberturas de ventilación. Instálese según lo indicado en las instrucciones del fabricante No instale el aparato cerca de fuentes de calor tales como radiadores, registros de calefacción, estufas u otros aparatos (incluyendo amplificadores) que produzcan calor...

  • Page 11: Unpacking And Inspection

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 UNPACKING AND INSPECTION Your equipment was packed carefully at the factory in a container designed to protect the unit during shipment. Nevertheless, we recommend making a careful inspection of the shipping carton and the contents for any signs of physical damage.

  • Page 12: First Installation Recommendations

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 FIRST INSTALLATION RECOMMENDATIONS POWER SUPPLY CABLE A power supply cable of approx. 2 mt length is supplied with the device, which has a moulded IEC plug attached – this is a legal requirement.

  • Page 13: Fuse Replacement

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 FUSE REPLACEMENT The power supply socket has an integral fuse drawer containing the AC power fuse and a spare, both of the same value. BEFORE REPLACING THE POWER FUSE, MAKE SURE YOU HAVE THE RIGHT TYPE OF FUSE FOR THE VOLTAGE TO BE PROTECTED.

  • Page 14: Protection Against Lightning

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 PROTECTION AGAINST LIGHTNING Should the device be put out of action due to being struck by lightning or excess voltage, disconnect it from the power supply without delay. Do not reconnect until the device has been checked.

  • Page 15: Introduction

    Version 2.5 - 12/22/2010 2 Introduction This manual will give you an overview of the functionality of the Oxygen 5 Digital audio system and all its features. It is advisable to read this manual at least once before touching any control, or even thinking about hooking up the system.

  • Page 16: System Overview

    Version 2.5 - 12/22/2010 3 System overview The Oxygen 5 Digital is a digital modular audio system that can solve your digital mixing/routing requirements in your broadcast studio or in your complete broadcast facility. The modular system can be used in all your mixing/routing applications like on-air broadcast, self-op, production and voice tracking.
  • Page 17 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Figure 1: Basic system layout Axel Technology srl www.axeltechnology.com System over view...

  • Page 18: Communication

    Oxygen 5 Digital digital audio system. To understand the Oxygen 5 Digital audio system it would help to know some principles of MambaNet. MambaNet definitions: Objects a fader, switch will have to trigger an action in the Oxygen 5 Digital digital audio system. In MambaNet, call these...

  • Page 19: Features And Highlights

    Because the Oxygen 5 Digital audio system is highly flexible, you can make many solutions for your mixing and routing. To have an overview on the power of the Oxygen 5 Digital digital audio system we made a list of the most important features and highlights: I/O Matrix of 1280x1280 with optional I/O Cards: •...

  • Page 20: Principle Of Operation

    Oxygen 5 Digital system The Oxygen 5 Digital system will be build up around the matrix/router that gives a lot of routing flexibility. Up to 4 DSP cards can be inserted to create mixing power as requested. For example, you...
  • Page 21 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 3.4.2.1 Sources Each module can receive audio from the matrix using so called ‘sources’. A source is given a name, left/right physical input and some additional settings (think of phantom, pad, redlight settings). For example if we make source ‘MIC1’...
  • Page 22 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 When a source is selected (can also be in the startup-defaults) the corresponding processing preset is loaded. When a module preset is loaded, the complete module settings can be preset.

  • Page 23: Control Surfaces

    Version 2.5 - 12/22/2010 4 Control Surfaces The engine will recognize the control surfaces of the Oxygen 5 Digital audio system as ‘nodes with objects’. Each object can connect to an engine (mixing console) function. Below you see an example of a control surface and a short description of the node/object structure.

  • Page 24: Oxygen 5 Digital Engine

    (at first time startup you can use a network or cross wire with a static IP given to your network interface, e.g. 192.168.0.10). On the Oxygen 5 Digital website, you find all necessary options to configure your system as full functioning mixing console(s), it’s the most easy to step from up to down through the main menu:...

  • Page 25: Ip/Clock Configuration

    When IP and DNS settings are setup correct, the Oxygen 5 Digital will automatically synchronize to a pool of time servers. The Oxygen 5 Digital is also able to use a GPS receiver via USB for time synchronization. At this moment to Oxygen 5 Digital may function if a NTP server for the surfaces.

  • Page 26: Global Configuration

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 5.2 Global configuration Some overall system settings can be filled in on this webpage. Figure 6: Global configuration Sample rate • You can select a sample rate of 32 kHz, 44.1 kHz en 48kHz. According to this setting, the filters are setup so you have to make sure to select the sample rate you work with.

  • Page 27: Mix Buss Configuration

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 5.3 Mix buss configuration You have to setup the busse s to create the names, console assignment and functionality of the Busse s. Here we see the setup for a single console buss setup:...

  • Page 28: Monitor Buss Configuration

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 5.4 Monitor buss configuration Per DSP card, you have 4 stereo monitor busse s that can be used. They need a name, console assignment and configuration so they can work properly:...

  • Page 29: Source Configuration

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 5.5 Source configuration The 19” rack unit can accept various I/O cards. These inserted I/O cards can accept audio in various formats. This is because the audio connected to the I/O cards can have different channel relations (mono, stereo).
  • Page 30 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 console preset), this processing preset is ‘set’ on the module. Trigger start • Here you can configure how the source start/stop change is triggered: - Dedicated, the module fader and on are not triggering start/stop only the dedicated start/stop controllers.

  • Page 31: Extern Source Configuration

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 5.6 Extern source configuration Each DSP card can handle four stereo monitor busses (with 4 DSP cards a max of 16 stereo monitor busse s is possible). For each DSP card you can configure 8 external stereo sources, beyond the 16 stereo mixing busse s which are fixed available in the monitor section.

  • Page 32: Destination Configuration

    The 19” rack unit can accept various I/O cards. With these cards, you can send audio from the Oxygen 5 Digital digital audio system to the audio format you require. Because the audio connected to the I/O cards can have different channel relations (mono, stereo) a combination has to be made. A user readable label has to be created to configure destinations.
  • Page 33 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 - Input sources (Mic, line, dig etc. etc.) - Mix busses - Monitor busse s - Insert outs (of modules) Default signal routing • Here you can choose which signal feeds the physical outputs:...

  • Page 34: Talkback Configuration

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 5.8 Talkback configuration This pages makes it possible to select the sources for the 16 talkback busse s available in the Oxygen 5 Digital. Figure 12: Talkback configuration Source •...

  • Page 35: Processing Presets

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 5.9 Processing presets It is possible to set the module processing when a source is selected (via ‘source select’ or a module preset) , the information for this functionality is stored in the processing presets.

  • Page 36: Settings

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 5.9.1 Settings All processing parameters can be configured in the processing preset settings webpage Figure 14: Processing preset settings Axel Technology srl www.axeltechnology.com Oxygen 5 Digital Engine...
  • Page 37 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Ov erride module • If set to no, the module setting will not be affected by this preset. If set to yes, this preset will change the settings of the module for the corresponding processing section (Digital gain, Low cut etc.
  • Page 38 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Threshold of the downward expander (to reduce ambient sound) that this preset will set. The threshold range is -50 dB till 0 dB. AGC ratio The ratio for this automatic gain control is given in 0-100%.

  • Page 39: Module Assignment

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 5.10 Module assignment Modules can be assigned to one of the 4 consoles, after this and a correct assignment of the busse s to the consoles you may click ‘generate’ to make a correct assignment configuration.

  • Page 40: Module Configuration

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 5.11 Module configuration The module configuration makes it possible to give modules a default setting (after powering on) and you can also configure module presets 1A/1B, 2A/2B, 3A/3B, 4A/4B. Figure 17: Input module configuration Console •...

  • Page 41: Module Configuration Page

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 5.11.1 Module configuration page On this page you can setup the default module configuration, used at startup if programmed default. If you have made your settings and you would like to copy them to all modules in this console (for example if you want to use the same EQ center frequencies) you can simply hit ‘To all console x...
  • Page 42 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 5.11.1.1 Module preset 1A/1B, 2A/2B, 3A/3B, 4A/4B Here you select the source, processing preset and routing preset that is used when module preset 1A/1B, 2A/2B, 3A/3B, 4A/4B is selected. After a click on ‘routing’ a popup appears with the routing possibilities (this depends on the console assignment).
  • Page 43 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 5.11.1.2 Processing This are the programmed processing defaults for the modules. Depending on the startup settings these processing defaults will be used at startup. The field ‘Use at source select’ determines if the processing section also is used when there is no processing preset assigned to the source/module preset, or the processing section in the processing preset is not overriding the module settings.

  • Page 44: Mix/Monitor Buss Presets

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 5.12 Mix/monitor buss presets It is possible to make mix/monitor buss presets to make sure for different programs the correct buss master states and levels are set. Also you can make sure the required monitor buss selection is made.

  • Page 45: Settings

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 5.12.1 Settings On this page you can set the required levels and state for all busse s and monitor busse s which are used in the mix/monitor buss pre set.
  • Page 46 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 preset is loaded. State • This must be set to ‘yes’ if you want that this preset makes this monitor-buss routing. Axel Technology srl www.axeltechnology.com Oxygen 5 Digital Engine...

  • Page 47: Console Presets

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 5.13 Console presets To recall a complete console you use the console presets, what exactly is recalled is depending on the underlying configuration of: Source configuration Processing presets Module configuration Mix/monitor buss presets When a console preset is recalled it will set all modules to the module preset ‘A’-‘H’...

  • Page 48: Surface Configuration

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 5.14 Surface configuration You can see an overview of the boards in the surface(s) on this page. These are grouped together, like their physical layout. Figure 23: Surface configuration MambaNet Address •...
  • Page 49 The sensor and actuator data types determine which function is able to connect to the object. For a complete list of the functions, you can go to chapter 5.16 Engine function. Figure 24: Node obj ect configuration (to Oxygen 5 Digital functions) Default •...

  • Page 50: Rack Configuration

    You can see an overview of the cards in the rack on this page. You can find information like the slot number, MambaNet address, card name, number of inputs and outputs. The link Configure will go to a page for connecting objects of the card to Oxygen 5 Digital engine’s functions.
  • Page 51 The sensor and actuator data types determine which function assigns to the object. For a complete list of the functions, you can look up chapter 5.16 Engine function. Figure 26: Node obj ect configuration (to Oxygen 5 Digital functions) Axel Technology srl www.axeltechnology.com...

  • Page 52: Engine Functions

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 5.16 Engine functions The engine houses all mixing console functions and is able to connect various objects to its function as has been described in the previous chapters. Below we give a list of all available functions within the engine.
  • Page 53 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Function name comments Example object to connect to Version EQ Band 3 Controls the EQ frequenc y Encoder Frequenc y EQ Band 3 Controls the EQ bandwidth Encoder Bandwi dth...
  • Page 54 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Function name comments Example object to connect to Version Fader and on This func tion shows a ‘1’ if the fader and on are Switc h, GPIO active/inacti ve active.
  • Page 55 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Function name comments Example object to connect to Version Buss 13/14 level Controls the s ent level to the buss for this module Encoder, F ader Buss 13/14 level Select ‘Off ‘or ‘On = 0 dB’ depending on current state...
  • Page 56 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Function name comments Example object to connect to Version Buss 25/26 on/off Select the buss on/off Switc h Buss 25/26 pre Select if this modul e sent pre or post fader signal to...
  • Page 57 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Function name comments Example object to connect to Version Control 3 Control 3 data value Encoder The data interpretation depends on the mode of this control 3 (sourc e, gain, aux level etc. etc)

  • Page 58: Busses

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 5.16.2 Busses The Oxygen 5 Digital has 16 stereo busses. For each buss, you are able to connect objects with the following functions: Function name comments Object to connect to...

  • Page 59: Monitor Busses

    Version 2.5 - 12/22/2010 5.16.3 Monitor busses With 4 DSP cards, the Oxygen 5 Digital will have 16 stereo monitor busse s (4 per DSP card). For each monitor buss, you are able to connect objects to do the following functions:...
  • Page 60 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Function name Comments Object to connect to Version Ext 6 off Deselect Ext 6 for the monitor buss Switc h Ext 6 on/off Toggle Ext 6 for the monitor buss...

  • Page 61: Global

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 5.16.4 Global It will be possible to have the following global sensor change receivers: Function Name Comments Object to connect to Version Red-light 1 Activate the red-light 1 buss Switc h, GPO...
  • Page 62 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Function Name Comments Object to connect to Version Control 1 mode EQ band 6 Select mode EQ band 6 bw for c ontrol 1 Switc h bandwidth Control 1 mode EQ band 6 type...
  • Page 63 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Function Name Comments Object to connect to Version Control 2 mode EQ band 1 l evel Select mode EQ band 1 level for control 2 Switc h Control 2 mode EQ band 1...
  • Page 64 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Function Name Comments Object to connect to Version Control 2 mode buss 17/18 Select mode buss 17/18 bal. for control 2 Switc h balance Control 2 mode buss 19/20 Select mode buss 19/20 for control 2...
  • Page 65 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Function Name Comments Object to connect to Version Control 3 mode module Select mode downward expander threshold Switc h downward expander thres hold Control 3 mode AGC thres hold Select mode AGC threshold...
  • Page 66 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Function Name Comments Object to connect to Version Control 4 mode EQ band 1 type Select mode EQ band 1 type for c ontrol 4 Switc h Control 4 mode EQ band 2 l evel...
  • Page 67 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Function Name Comments Object to connect to Version Control 4 mode buss 21/22 Select mode buss 21/22 for control 4 Switc h Control 4 mode buss 21/22 Select mode buss 21/22 bal. for control 4...
  • Page 68 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Function Name Comments Object to connect to Version Master control 2 mode buss Select mode for Mas ter control 2 Switc h 31/32 Master control 3 mode buss 1/2 Select mode for Mas ter control 3...
  • Page 69 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Function Name Comments Object to connect to Version Reset c onsol e 4 to programmed After pressing one s econd, c ons ole 4 is reset to the Switc h...
  • Page 70 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Function Name Comments Object to connect to Version recall. Console pres et 25 After one sec ond recalls the preset on-air safe. Switc h After three seconds it forc es the on-air channels to recall.
  • Page 71 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Function Name Comments Object to connect to Version 15/16 switched to buss 15/16 Master & c ontrol 2 mode buss Master control mode & module c ontrol mode are Switc h...

  • Page 72: Sources

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Function Name Comments Object to connect to Version 23/24 switched to buss 23/24 Master & c ontrol 4 mode buss Master control mode & module c ontrol mode are Switc h...

  • Page 73: Destinations

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Name comments Example Version object to connect to Module buss 17/18 off connect to the modul e(s) buss 17/18 off if this source is sel ected GPIO Module buss 17/18 on/off...
  • Page 74 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Name Comments Example object to connect to Version Mono & Monitor mono Make this des tinati on mono if the s ource is a I/O card mono monitor buss and the monitor buss mono is activated or its local mono is set.
  • Page 75 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Name Comments Example object to connect to Version Routing Makes it possible to s elect which c hannels are Encoder, Display going to this desti nati on. The options are Left,...

  • Page 76: Block Diagrams - Not Available

    With all configuration options, it is possible to make many different systems using a single I/O rack. We will show some example block diagrams on possible setups within an Oxygen 5 Digital system. 32 stereo module, 16 stereo buss and 4 stereo monitor buss console:...

  • Page 77: O Rack Description

    (3 slots) and one engine card (2 slots). You then have space for a maximum of 16 in and output cards. Because the Oxygen 5 Digital is a modular system it is up to you how many in and output cards are necessary to do the job.

  • Page 78: Power Supply

    7.2 Engine The engine is the controller card of the Oxygen 5 Digital system. This card has a fixed location at the far right side. For proper functioning of the system, you absolutely have to insert this card to your digital audio systems network.
  • Page 79 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Pin name Function Comment Centre Frame Clock in 32kHz, 44.1kHz, 48kHz, +/- 100ppm, +5V TTL, Ground Frame Clock in switchable 75Ohm terminator. Table 7-1: Frame clock input BNC Pin name...
  • Page 80 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Pin name Function Carrier Detect Data Set Ready Receive Data Request To Send Transmit Data Clear To Send Data Terminal Ready Ring Indicator Ground Shield Ground Table 7-6: RS232 9pin SUB-D connector Con.

  • Page 81: Available I/O Rack Cards

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 8 Available I/O rack cards Depending on your audio-connections, you can select the I/O cards. The next paragraphs will give you a detailed overview on the currently available cards. 8.1 MIC input card There are four balanced MIC inputs available on each card.

  • Page 82: Line Input Card

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 8.2 Line input card There are four balanced stereo line inputs available on each card. Each RJ45 connector represents a stereo line input and two GPIO’s which can be connected to the 19”...

  • Page 83: Digital In/Output Card (Optional Src)

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 8.3 Digital in/output card (optional SRC) There are four balanced digital inputs and outputs available on each card. Each RJ45 connector represents a stereo line input and two GPIO’s which can be connected to the 19”...

  • Page 84: Line Output Card

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 8.4 Line output card There are four balanced stereo line outputs available on each card. Each RJ45 connector represents a stereo line output and two GPIO’s which can be connected to the 19” patch panels with a shielded twisted pair (STP) cable.

  • Page 85: Crm Output Card

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 8.5 CRM output card There are four stereo outputs available on this card. RJ45 connector A&B represents the CRM stereo line output. RJ45 connector C&D represents the stereo phones outputs.

  • Page 86: Cobranet In/Output Card

    8.6 CobraNet in/output card This CobraNet In/output card converts the CobraNet network signals into digital audio so it can be processed in the Oxygen 5 Digital system’s 19” inch rack. The CobraNet In/out card can ordered with various channel counts, please contact your sales contact for the available options.

  • Page 87: Adat In/Output Card

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 8.7 ADAT in/output card This ADAT In/output card converts the ADAT optical signals into digital audio that can received by the 19” inch rack. The ADAT card has to run synchronous with the connected devices, allowed sample rate frequencies are 32kHz, 44.1kHz or 48kHz.

  • Page 88: Hybrid In/Output Card - Needs To Be Added

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 8.8 Hybrid in/output card – Needs to be added Axel Technology srl www.axeltechnology.com Available I/O rac k cards...

  • Page 89: Firewire In/Output Card - Needs To Be Added

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 8.9 Firewire in/output card – Needs to be added Axel Technology srl www.axeltechnology.com Available I/O rac k cards...

  • Page 90: Dsp Card

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 8.10 DSP card The DSP card adds mixing capabilities to your 19” rack. In combination with the Oxygen 5 Digital engine, this card gives you 32 stereo processing channels to create a mixing desk.

  • Page 91: Patch Panels

    Version 2.5 - 12/22/2010 9 Patch panels All distribution of audio within the Oxygen 5 Digital audio system is with shielded twisted pair cable. The Breakout 19” panels, you need to connect equipment use standard audio connectors. 9.1 19” Patch panels / Breakout panels The Oxygen 5 Digital 19”...
  • Page 92 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Figure 29: Oxygen 5 Digital Break out Panels Axel Technology srl www.axeltechnology.com Patch panels...

  • Page 93: Wiring

    Table : GPO Patch Panel w iring If the GPIO jumper setting on the Oxygen 5 Digital-rack-Board is set for GPIO the remote becomes a Remote-Output GPO (+5V TTL) on the Tip of the remote jack and a Remote-Input GPI (+5V TTL internal pull-up) on the Ring.

  • Page 94: Mic

    GPO connection example for remote START Pioneer CD-player. 9.2.2 The MIC input connects microphones to the Oxygen 5 Digital. The Oxygen 5 Digital Mic Rack Module supports 48 volts DC phantom power if it is switched on in the software.

  • Page 95: Stereo Line Input And Output

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 9.2.4 Stereo line input and output The line I/O jack patch panel houses female jack connecters, the line I/O XLR patch panel houses XLR type connectors (male or female). Female XLR...
  • Page 96 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 jumpers are located on the I/O cards, close to the RJ45 connectors. Pin Con. Pair Pin name Function Comment +Audio 1 Left audio input or output in-phase specifications -Audio 1...

  • Page 97: Sico Breakout Box

    The AUDIO INPUT 1/2 RJ45 connector on the SiCo breakout box connects to one of the Oxygen 5 Digital phones outputs directly. The CRM and Studio I/O card both have 2 phones outputs which both output the PHONES 1/A and PHONES 2/B signal. Jumpers in the SiCo breakout box select which signal is to pass on to the unit.

  • Page 98: Specifications Oxygen 5 Digital Audio System

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 10 Specifications Oxygen 5 Digital audio system 10.1 Input/Output cards : Electronically balanced Mic inputs : Input impedance 2k Ohm : Input sensitivity -70dBu up to +20dBu (PAD) : CMRR MIC inputs: 85dB @ 1kHz, maximum gain...

  • Page 99: Overall

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 10.3 OVERALL : 0dBu = 0.775Vrms Lev el : 0dB internal = -20 dBFs. Clock : Sample rate: 32 kHz, 44.1 kHz, 48 kHz, +/- 20ppm (internally synchronized) Frequency response : 20 - 20.000 Hz +/- 0.2dB...

  • Page 100: List Of Figures

    Figure 21: Mix/monitor buss pre set settings ...................45 Figure 22: Console presets ......................47 Figure 23: Surface configuration....................48 Figure 24: Node object configuration (to Oxygen 5 Digital functions)..........49 Figure 25: Rack configuration .......................50 Figure 26: Node object configuration (to Oxygen 5 Digital functions)..........51 Figure 27: Oxygen 5 Digital audio system 19”...

  • Page 101: List Of Tables

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 12 List Of Tables Table 8-1: Frame clock input BNC....................79 Table 8-2: Frame clock output BNC....................79 Table 8-3: VGA 15p D-Sub connector....................79 Table 8-4: Keyboard & Mouse mini DIN connector .................79 Table 8-5: USB connector (2x) ......................79...

  • Page 102: Declaration Of Conformity

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 13 Declaration Of Conformity DECLARATION OF CONFORMITY Manufacturers Name: Axel Technology Srl Manufacturers Address: via Caduti di Sabiuno, 6/F 40011 Anzola dell’Emilia (Bologna) Italy Declares that the product Oxygen 5 Digital audio system...

  • Page 103: Product Safety

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 14 Product Safety This product is been manufactured with the highest standards and is double-checked in our quality control department for reliability in the "HIGH VOLTAGE" section. CAUTION Nev er remove any panels, or open this equipment.

  • Page 104: Disclaimer

    To the extent that the law permits, any liability which may be incurred as a result of the use or future use of a product manufactured or sold by Axel Technology. is limited to the cost of repairing or replacing the failing product or component at the discretion of Axel Technology . Either within or outside of warranty periods.

  • Page 105: Appendix A - Network Design For Oxygen 5 Digital

    16.3 Network design An Oxygen 5 Digital system require to have an own LAN (level 2) to work without risk of interference with office networks and or other Oxygen 5 Digital systems. The most basic way of describing this is: “Each Oxygen 5 Digital system requires its own Ethernet switch”.
  • Page 106 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Internet (only IP) (only IP) Office 1 Office 2 Ethernet Ethernet Here you see two LAN networks, both connected to internet. With correct IP-addressing Office 1 and 2 can reach each other using the IP protocol. However, there will be no interference between Office 1 and 2 on Ethernet.

  • Page 107: Practical Solution 1: Physical Separated Switches And Ip Router

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 16.3.1 Practical solution 1: Physical separated switches and IP router If you give the Oxygen 5 Digitals and OFFICE networks their own physical Ethernet switch, you ofcourse have good ‘level 2’ (Ethernet) separation. If you additional hook up an IP router to the Ethernet switches it is possible to amake IP routes between the different networks, without ‘level...

  • Page 108: Practical Solution 2: Single Managed Level 3 Switch/Router

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 16.3.2 Practical solution 2: single managed level 3 switch/router When you select an level 3 managed switch with the following features: Port VLAN Inter VLAN routing (IP) (VLAN stands for Virtual Local Area Network) It will be possible to hook up all your network equipment to the same switch and configure the switch so it functions equal to ‘Practical solution 1’.

  • Page 109: Practical Solution 3: Physical Separated Switches And Pcs If Ip Router

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 16.3.3 Practical solution 3: Physical separated switches and PCs if IP router It is also possible to have a PC configured to do IP routing. Of course, it is necessary to have two or more network cards before you can make IP routing.

  • Page 110: Ip Subnets And Ip Routes

    GW : 192.168.2.1 GW : 192.168.2.1 When you no want to reach Oxygen 5 Digital 1 and Oxygen 5 Digital 2 from the Example office PC it is required make static routes. This because: all network addresse s 192.168.1.0/24 need to be send via 192.168.0.11 all network addresse s 192.168.2.0/24 need to be send via 192.168.0.12...

  • Page 111: Remote Access

    If AXEL TECHNOLOGY ask for remote assistance it is required you make a redirect to internal Private IP 22 of the Oxygen 5 Digital rack. If we want to have remote access via port redirects in the IP subnet and IP route example as seen before we have to make the following configuration in the...

  • Page 112: Appendix B - Service

    17 Appendix B – Service If you browse to the url http://192.168.0.200/service, where 192.168.0.200 should be your local Oxygen 5 Digital IP address you have a service menu with give some management possibilities. Figure 32: Service menu MambaNet node overview •...
  • Page 113 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Change passw ord • Here you can change the password for the webserver Axel Technology srl www.axeltechnology.com Appendi x B – Servic e...

  • Page 114: Mambanet Node Overview

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 17.1 MambaNet node overview This pages shows all nodes found in the local Ethernet network. Also nodes that are not online can be seen as ‘grayed out’ nodes. Figure 33: MambaNet node overview Address •...
  • Page 115 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 WARNING: When a node is deleted the configuration is also removed! Only nodes do not have a delete image, but a refresh image. This can be used to force a refresh of the node name and parent.

  • Page 116: Templates

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 17.2 Templates The learner continuously checks for unknown nodes. When a unknown node is found it will read the object information and store it in the database. A template is unique by: ManufactureID, ProductID and Major Firmware Revision.

  • Page 117: Stored Configurations

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 17.3 Stored configurations The configurations that are exported are listed here. When you mistakenly did export a configuration you may delete it from here. Figure 35: Stored configurations Count •...

  • Page 118: Engine Functions

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 17.4 Engine functions This is a list of all available engine functions. Figure 36: Engine functions • Here it is possible to reposition the functions for easier/faster access in the surface/rack configuration menu’s...

  • Page 119: Package Versions

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 17.5 Package versions This page shows the installed packages with their version number, build and install date. Figure 37: Package versions Axel Technology srl www.axeltechnology.com Appendi x B – Servic e...

  • Page 120: Change Password

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 17.6 Change password The webserver requires authentication. On this page you change the username and password. Axel Technology srl www.axeltechnology.com...

  • Page 121: Weee Directive - Informativ A Raee

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 18 WEEE Directive – Informativa RAEE In line with EU Directive 2002/96/EC for waste electrical and electronic equipment (WEEE), this electrical product must not be disposed of as unsorted municipal waste. Please dispose of this product by returning it to the point of sale or to your local municipal collection point for recycling.
  • Page 122 Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 Vastavalt EL direktiivile 2002/96/EÜ, mis käsitleb elektri- ja elektroonikaseadmete jäätmeid (WEEE), ei või antud toodet visata majapidamisjäätmete hulka. Palun tagastage antud toode taaskasutamise eesmärgil müügipunkti või kohaliku piirkonna jäätmekogumise punkti.

  • Page 123: Warranty

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 19 WARRANTY The manufacturer offers a 1-year ex works warranty. Do not open the equipment. The warranty shall be voided if any of the warranty seals are broken. The manufacturer shall not be liable for damage of any kind deriving from or in relation to incorrect use of the product.

  • Page 124: Axel Technology Contacts

    Oxygen 5 Digital - User Manual Version 2.5 - 12/22/2010 21 AXEL TECHNOLOGY CONTACTs Main Office BOLOGNA: Via Caduti Di Sabbiuno 6/F 40011 Anzola Emilia - Bologna - Italy Tel. +39 051 736555 - Fax. +39 051 736170 Regional Office BERGAMO: Via Italia 1 24030 Medolago (Bg) –...

Table of Contents
