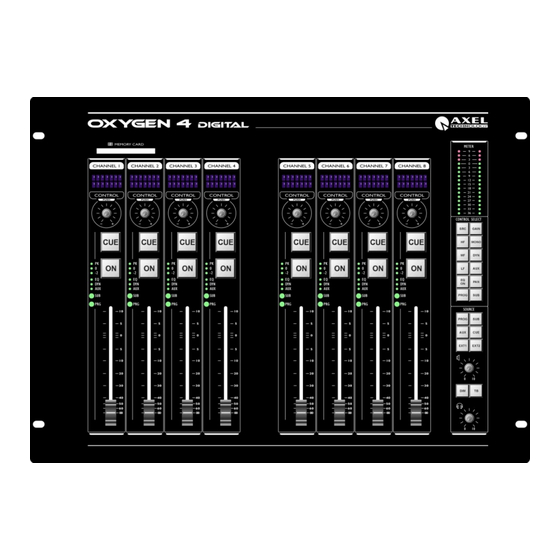

Axel Oxygen 4 Manual

Hide thumbs Also See for Oxygen 4:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Oxygen 4
Digital
pag. 1

Advertisement

Table of Contents
loading

Related Manuals for Axel Oxygen 4

Summary of Contents for Axel Oxygen 4

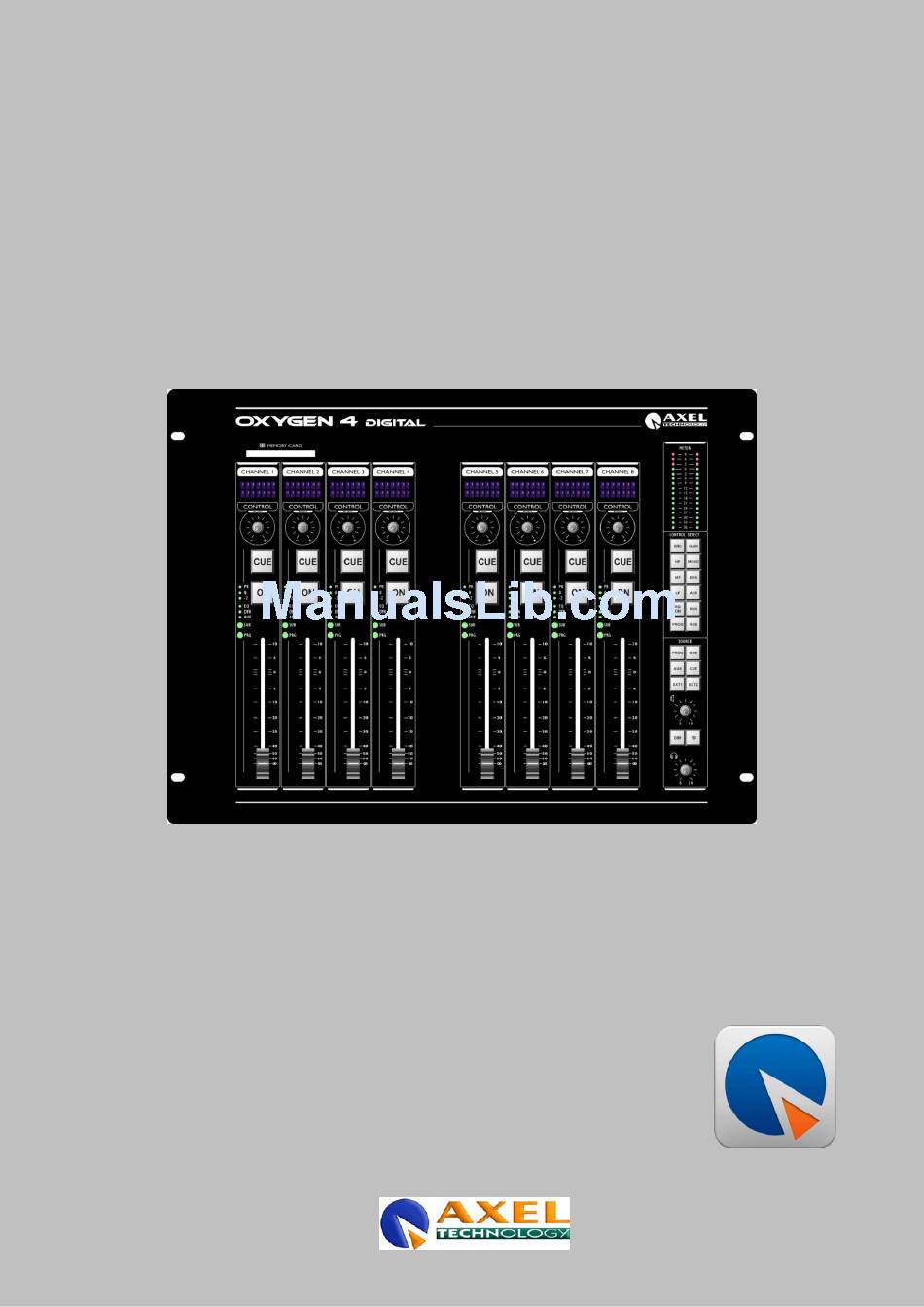

  • Page 1 Oxygen 4 Digital pag. 1...

  • Page 2: Product Safety

    How does resistance affect the shock a person feels. A typical resistance between one hand to the other in "dry" condition could well over 100,000 Ohm. Always earth all your equipment by the grounding pin in your main plug. Proper wiring and isolation input/output transformers (optional) should only cure Hum loops. Oxygen 4 Digital...
  • Page 3 PRODUCT SAFETY Replace fuses always with the same type and rating after the equipment has been turned off and unplugged. If the fuse blows again you have an equipment failure, do not use it again and return it to your dealer for repair.
  • Page 4 We will certainly learn from your comments, and we will very much appreciate the effort and time it will take for you to communicate your idea’s and suggestions. We are confident that you will be using the Oxygen 4 Digital for many years to come, and wish you a lot of success.

  • Page 5: Table Of Contents

    Contents INTRODUCTION ..........................7 CONTENTS OF THE PACKAGE ....................8 START WORKING WITH THE OXYGEN 4 DIGITAL ..............8 SYSTEM STRUCTURE ........................9 19” R ..........................9 ........................9 ONTROL URFACE ) ......................9 OFTWARE EXTERNAL AUDIO SIGNAL PATH ........................10 .........................
  • Page 6 GLOSSARY ..........................66 APPENDIX ............................ 67 17.1 A: B ............67 PPENDIX LOCKDIAGRAM OF THE XYGEN IGITAL 17.2 B: O ..............68 PPENDIX XYGEN IGITAL CTIVE CRIPTS DISCLAIMER ..........................73 Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 7: Introduction

    You can use this manual later on as a reference. In the first chapters we shall give you an overview of the Oxygen 4 Digital and its features. In this way you can have an impression of how to implement the system in your application.

  • Page 8: Contents Of The Package

    You can now also hook up the UTP cable to your ETHERNET 802.3 network if you would like to make settings. In chapter 10.5 you can find how to setup the Oxygen 4 Digital for networking. Connect the power supply cable to the 19" rack and to the wall outlet.

  • Page 9: System Structure

    PC. The Oxygen 4 Digital can receive an IP address via a DHCP server, or you can give a Fixed IP ! When this IP is known, you are able to connect to the Oxygen 4 Digital by software (HTTP web server or ActiveX object).

  • Page 10: Audio Signal Path

    5.1 Input matrix To give you the flexibility you need in your applications the Oxygen 4 Digital has a full matrix before processing takes place. You can assign one of your inputs to the eight modules in any way you want.

  • Page 11: Outputs

    For all Digital outputs you have a separate router which makes it possible for you too choose which buss is connected to the digital output. Due to the advanced routing matrix you also have the option to route any input directly to an output. Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 12: Analog/Digital Levels With The Oxygen 4 Digital

    CD player to digital input 1 you can already set the headroom trim to -20 dB in the Global Settings dialog on the webpage. See also section 11.5. The Oxygen 4 Digital will then make a level correction for this medium (if assigned to a module/processing channel).
  • Page 13 • +6 dBu on the balanced input/outputs • 0 dBu on the unbalanced inputs/outputs • –20 dBFS fixed or -20 dBFS to 0 dBFS variable at the digital inputs/outputs. Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 14: Network Basics

    HTTP, FTP, Cobranet etc… 7.2 The Layer Implementation For the Oxygen 4 Digital, we always use the Ethernet protocol for the Data Link & Physical layer. You can imagine this Ethernet protocol as an envelope. The information on the envelope is Source Address or Destination Address.

  • Page 15: Tcp/Ip Network Addressing

    Unfortunately, no one expected the Internet to grow as quickly as it did, and the limitations and inflexibility of this method of addressing were unforeseen. Adding another level to the address hierarchy, the subnet, helped to temporarily overcome many of these shortcomings. Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 16: Subnets And Subnet Masks

    If no reply is received, this indicates a problem with communication over the network. To issue a ping command, open the Command Prompt, and type: ping xxx.xxx.xxx.xxx where: xxx.xxx.xxx.xxx is IP address of the device you wish to contact Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 17: Dhcp

    If you want to use static IP addresses on your servers, but you like the idea of using DHCP for consistency, you can use a reservation system to ensure that a client receives the same IP address each time it connects. Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 18: Cobranet Basics

    If you interconnect multiple star networks you will get a tree-topology. Peak Audio has tested a lot of Ethernet equipment, and is maintaining a list of recommended switches. You can find the recommendations at their website: http://www.peakaudio.com. Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 19: Hardware Connections

    Chapter 11 will explain everything on this settings. The Oxygen 4 Digital is equipped with Sub-D connectors. This way it is possible to have a lot of I/O in a small space. The pinning is as follows for the female Sub-D connectors: Figure 5: 9 pins female Sub-d Each section of this chapter has a table which shows how the connectors are wired.

  • Page 20: Figure 7: Microphone Inputs At Rear Side

    Not Connected Pin 9 Not Connected Pin 5 Not Connected Table 2: Pinning MIC Input 4-3 and MIC Input 2-1 Return Ring Send Sleeve Table 3: Pinning Inserts Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 21: Line Inputs

    9.1.2 LINE inputs The Oxygen 4 Digital can connect 7 analog line inputs. The Input numbers 1-4 and 7 (front side) are stereo inputs. Input 5 and 6 are MONO inputs, with on the same connector a cleanfeed output, so these inputs can be used for a telephone-hybrid.

  • Page 22: External Inputs

    9.1.4 Program/Sub/Aux/CRM outputs The Oxygen 4 Digital is a very intuitive mixer which is very similar to analog mixing consoles. Therefore you also have all common outputs in the analog domain. That means you can directly hook up your equipment. Below you see a picture of the connections available.

  • Page 23: Digital Inputs/Outputs

    9.2 Digital Inputs/Outputs The Oxygen 4 Digital holds 7 digital inputs and outputs. At the rear side of the 19” rack you will find digital I/O 1-6 and at the front side is Digital I/O 7 located. The digital inputs at the rear side can receive either Coax (SPDIF) or XLR (AES3) digital audio.

  • Page 24: Global Inputs/Outputs

    Word clock in and out. On the rear side of the Oxygen 4 Digital you can find two BNC connectors with the text FCLK OUT and FCLK IN. These are the word clock in/out connection which can be used for synchronization purposes.

  • Page 25: On-Air Output

    Oxygen 4 Digital). By entering the IP address of the Oxygen 4 Digital in the internet explorer you will receive the Oxygen 4 Digital webpage onto your screen. Through the webpage you can make all kind of settings and view all kinds of log-files.

  • Page 26: Connection To Control Surfaces

    5m. This is also the length of the cable delivered with the package. If the voltage drop on the +5 volt lines becomes to large the control- surface won't function properly. Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 27: Cobranet (Optional)

    (depends on the required audio bandwidth). The Cobranet module is optional. When the module is present then the Oxygen 4 Digital will auto- detect it. Automatically the webpage will be updated with the proper menus for Cobranet.

  • Page 28: Using The Control Surface

    It is possible to process 8 stereo channels in parallel. Every processing channel handles source selection, mono, EQ, dynamics, level and routing selection. Now we shall give you a global overview of the Oxygen 4 Digital. All hands on features described here can be found on the control surface of the system.

  • Page 29: Input Routing

    Using the Control Surface Figure 22: The 8-fader Control Surface of the Oxygen 4 Digital 10.1 Input routing Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 30: Dynamic Range Control

    By pushing the encoder the balance returns to center level. 10.2 EQ Each module of the Oxygen 4 Digital has a three-band equalizer. You can select the buttons LF, MF and HF to adjust the gain for each band.

  • Page 31: Buss Routing

    10.4.1 Program/Sub buss The Oxygen 4 Digital has a stereo Program and Sub buss implemented. To route a channel to the Prog or Sub buss, you can select the Prog or the Sub button and push the encoder on a module. The Prog or Sub LED will be activated on that module.

  • Page 32: Network Settings Through The Control Surface

    10.5 Network settings through the Control Surface The Oxygen 4 Digital is a stand-alone mixer. That means that there is no need for a PC during operation. But before you start using the Oxygen 4 Digital you may want to make some settings regarding output routing or GPIO usage.

  • Page 33: Webpage

    To control all the features of the Oxygen 4 Digital we need software tools. The software part of the Oxygen 4 Digital is a dynamic webpage that is inside the 'brain' of the console. By using it inside a network or on a stand-alone PC you can make all kinds of advanced settings to control and setup the Oxygen 4 Digital.
  • Page 34 Webpage Output Settings Security Settings Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 35: System Information

    Displays the MAC address of the Oxygen 4 Digital (Unique Oxygen 4 Digital/Ethernet identifier) System Up Time Displays the online time from the last time the Oxygen 4 Digital was activated Sample rate Displays the sample rate currently used by the Oxygen 4 Digital Control Surface 1 Displays if a control surface is connected on channel 1.

  • Page 36: Network Settings

    Webpage 11.3 Network Settings The Network Settings screen of the Oxygen 4 Digital displays the settings that can be made regarding network usage. Figure 25.03: Network Settings Name/Description You can enter a networking name for the Oxygen 4 Digital. Max 64 characters.
  • Page 37 Connection Information The Oxygen 4 Digital Connection log displays a log file with maximum of 64 entry's of the last users that logged on to the Oxygen 4 Digital Webpage, FTP or ActiveX. Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 38: Cobranet Settings

    The read community is a password protection against read requests through the SNMP protocol. Read/Write Community The read/write community is a password protection against read or writes requests through the SNMP protocol. Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...
  • Page 39 Bundle Let's you choose the bundle number that you want to transmit. (256-65535). Sub channels Displays the number of sub channels per channel that are routed (in use). Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 40: Global Settings

    CRM buss when the CUE is activated on a channel. CRM interlock If this option is enabled you can only route one buss at a time to the CRM buss. Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 41: Gpi 1 To 6

    Determines if Aux signal is retrieved pre-fader or post-fader. Extern1/2 The Oxygen 4 Digital has 2 extra CRM inputs onboard. Extern 1 and 2. Here you can select which input source you want to assign to these inputs. Talkback MIC When selecting the Talkback button, the chosen input will be directly put through on all the outputs who have Conference Talkback active.

  • Page 42: Gpo 1 To 6

    Action MIC1..4 The activation of MIC1..4 triggers the GPO Redlight1..2 The activation of Redlight1..2 triggers the GPO RemoteBuss 1..4 The activation of Remote Buss 1..4 triggers the GPO Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 43: Input Settings

    Figure 30.08: Input Settings In this menu you can see all the inputs of the Oxygen 4 Digital. You can adjust the corresponding label per input. Each of the inputs has its advanced settings. If Cobranet is not installed the “Cobranet input settings”...

  • Page 44: Advanced Input Settings

    Local Function Audio On/Off enables you to disable the audio function of the On switch. This way you can use the On switch only to trigger the remote. Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...
  • Page 45 Total CUE Reset Option to do a total CUE reset when input goes on air. Local CUE Reset Option to do a local CUE reset when input goes on air. Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 46: Cobranet Input Settings

    The idea behind the Cobranet Input Settings is basically the same as the normal Input Settings. Each bundle pair represents one 48kHz stereo channel. You can rename each label for your own purposes. Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 47: Output Settings

    All of the outputs, with Studio Mute enabled, will be muted when Studio mute is activated. CRM Mute All of the outputs, with CRM Mute enabled, will be muted when CRM mute is activated. Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 48: Advanced Output Settings

    Original With this bit set you give the signal the 'Original' marking. Note: Copybit and Original bit setting are only effective when signal is set to consumer-mode. Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 49: Cobranet Output Settings

    Conference Talkback, Studio Mute and CRM Mute. These three options are already discussed in chapter 11.8. The Advanced Cobranet Settings menu is already discussed in chapter 11.8.1. Note: The bit setting for Cobranet are grayed out for now. Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 50: Security Settings

    11.10 Security Settings The security setting of the Oxygen 4 Digital gives users the option to secure the Oxygen 4 Digital against misuse of any kind. It's possible to create a database of multiple users who have all kind of different access-levels to the Oxygen 4 Digital.

  • Page 51: Users And Levels

    Figure 37.15: User and Level Settings The User and Level menu gives the user the option create or alter user accounts for the Oxygen 4 Digital. In the 'change settings' menu you can adjust the name and the security level of the user. You can also assign a password to the user.

  • Page 52: Figure 37: User Settings

    Idle Idle level can't be selected but is automatically used when logged on to the webpage without username an password. Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 53: Chipcard Settings

    'Retype password' field (max 16 characters). Now press 'Write to Chip-card' and the data will be written to the chip-card. To erase the chip-card simply blank out the username field and the password fields and rewrite the chip-card again. Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 54: Control Surface Levels

    When activated user acquires privilege to setup Dynamics. When activated user acquires privilege to setup Aux. When activated user acquires privilege to use panning. Buss Routing When activated user acquires privilege to route busses (Prog/Sub). Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 55: Input Pool Levels

    The Input Pool Level Setting menu enables you to prevent users will access the inputs from the control-surface. This option is also available for the Cobranet input channels if Cobranet is available in your Oxygen 4 Digital. Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 56: Network Levels

    Security Directory Grants user-levels access to the Security directory on the FTP server. TCP/IP (20000) Connection Enables users to access the Oxygen 4 Digital by the ActiveX application. Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 57: Ftp

    The Security directory contains two files: 'Users.Oxygen 4 Digital' and 'Levels.Oxygen 4 Digital'. The file 'Users.Oxygen 4 Digital' stores all information like: Username, Password and security level. So if you want to transfer the list of Users to different Oxygen 4 Digital systems you can use the file 'Users.Oxygen 4 Digital' The file 'Levels.Oxygen 4 Digital' contains the information regarding the user levels.

  • Page 58: Specifications

    : CMRR MIC inputs: 85dB @ 1kHz, maximum gain : Frequency response 20Hz - 20kHz ± 0.1dBr (sample rate 48kHz) : Crosstalk 1kHz < -115dBr : Phantom is switchable +48 Volts Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 59: Line Inputs

    : Output Impedance: 110 Ohm : Output level: AES3 2-5 Vpp : Clock output 75 Ohm TTL : 24 bit, 32kHz, 44.1kHz or 48kHz : Total Harmonic Distortion plus Noise -102dB Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 60: Gpio

    : All GPO’s are by opto isolated relays able to handle a maximum of 50V at 200mA or 5V TTL 560R (8mA) out : All GPI’s have a 5V TTL 100kOhm circuitry. GPIO-MIC has a 5V/56Ohm LED driver circuit Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 61: System Clock

    Notes: 0dBu=775 mV. All measurements were made on an Audio Precision system Two. For more info on this and many other broadcast consoles contact your nearest dealer or AXEL TECHNOLOGY. Axel Technology S.r.l Via Caduti di Sabiuno 6/F 40011 Anzola dell’Emilia...

  • Page 62: Declaration Of Conformity

    CE Marking Directive 93/68/EEC (1993). Axel Technology Srl Via Caduti di Sabiuno 6/F 40011 Anzola dell’Emilia ITALY (*) The product is tested in a normal users environment. Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...
  • Page 63 Dear Oxygen 4 Digital owner, In this manual we have tried to give you an overview of all that the Oxygen 4 Digital has to offer. As it is our policy to continuously improve on our products, this manual will be updated regularly. Please visit our web site http://www.axeltechnology.it/...

  • Page 64: List Of Figures

    Figure 40: Input Pool Levels ........................55 Figure 41: Network Levels ........................56 Figure 42: Oxygen 4 Digital EQ Tool ..........Errore. Il segnalibro non è definito. Figure 43:The ActiveX application ..........Errore. Il segnalibro non è definito. Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 65: List Of Tables

    Table 5: Pinning for PROGRAM, SUB, AUX and CRM ................ 22 Table 6: Pinning Dig I/0 1..6 ........................23 Table 7: Pinning GPIO's ........................24 Table 8: Pinning Control Surface connector ..................26 Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 66: Glossary

    ............. 22 Subnet ............17 IP 10; 16 Subnet Mask ..........17 IP Address ............. 16 TCP/IP ............16 levels ............. 13 telephone hybrid ........... 22 microphones ..........20 Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 67: Appendix

    17 Appendix 17.1 Appendix A: Blockdiagram of the Oxygen 4 Digital The picture below represents the Oxygen 4 Digital. Basically there are two main blocks. The Mixing Console and the I/O Matrix. The Mixing console is the section where all the audio-processing takes place.

  • Page 68: Appendix B: Oxygen 4 Digital Activex Scripts

    //When Connection is made to a Oxygen 4 Digital this event is generated OnDisconnect() //When The object is Disconnected from the Oxygen 4 Digital this event is generated OnLoggedOn(long SecurityLevel) //When a new user logs on an event is generated and returns the userlevel...
  • Page 69 Void SetEQOn(long ModuleNr, long State) //Set EQ On at ModuleNr, 1=Switch Down/0=Switch Up Void SetMono(long ModuleNr, long State) //Set Mono at ModuleNr, 1=Switch Down/0=Switch Up Void SetGain(long ModuleNr, long Value) Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...
  • Page 70 // RedlightNr = 0 -> buss 1 // RedlightNr = 1 -> buss 2 Void SetRemoteBuss(long RemoteBussNr, long State) //Set Remote buss on or off // RemoteBussNr = 0 -> buss 1 Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...
  • Page 71 Long GetOn(long ModuleNr) //returns 1=ON/0=OFF Long GetMasterLevel(long LeftRight) //LeftRight = 0 -> Left, LeftRight = 1 -> Right //returns –140dB till 10dB, Long GetModuleLevel(long ModuleNr) //returns –140dB till 10dB Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...
  • Page 72 Long GetSubToCRM() //returns 1=ON/0=OFF Long GetAuxToCRM() //returns 1=ON/0=OFF Long GetCUEToCRM() //returns 1=ON/0=OFF Long GetExt1ToCRM() //returns 1=ON/0=OFF Long GetExt2ToCRM() //returns 1=ON/0=OFF Long GetCRMDim() //returns 1=ON/0=OFF Long GetTB() //returns 1=ON/0=OFF Oxygen 4 Digital - from Axel Technology Phone +39 051736555, support@axeltechnology.com Page...

  • Page 73: Disclaimer

    To the extent that the law permits, any liability which may be incurred as a result of the use or future use of a product manufactured or sold by Axel Technology is limited to the cost of repairing or replacing the failed product or component at the discretion of Axel Technology, either within, or outside of warranty periods, and does not extend to any loss or damage which may be caused as a consequence of misuse or failure of the equipment or products.
