Start using your ADSL...

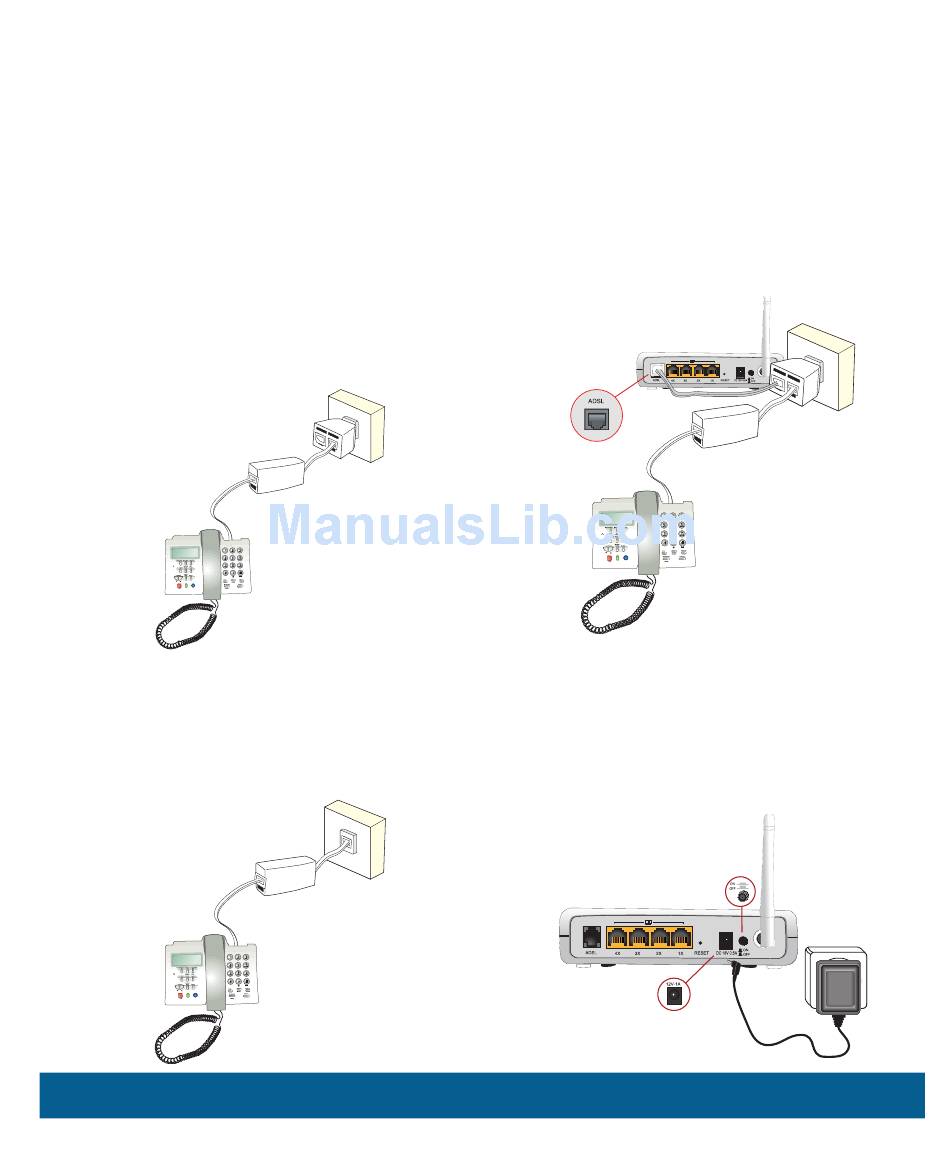

1. Microfilters installation
Connect a microfilter between each tele-
phony device (telephones, faxes...) and the
telephone socket.
Connect the multiple adapter (4) and the
microfilter (3) to the selected telephone
socket where the router will be connected,
as shown in the figure.
For the rest of the telephone sockets whe-
re there is connected a telephony terminal,
you will just have to connect a microfilter
(3).
For further information please refer to sections 3.2 and 3.3 of the user's manual on the
Advanced Settings CD
4
4
3
3
2. Telephone line connection
Connect the grey telephony line cable (5)
to the free outlet (without microfilter) of
the multiple adapter (4) and to the ADSL
connector of the router labeled as ADSL.
5

3. Power adapter connection

Plug the power adapter (2) into the mains
supply and into the DC18V-0.5A connec-
tor of the ADSL Router.
4
3
2
