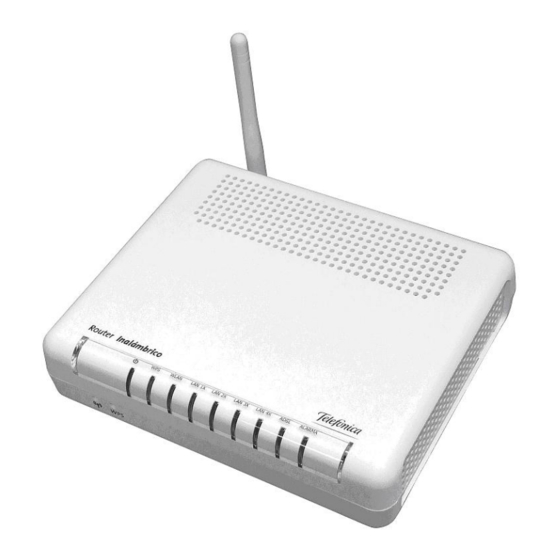

- Page 1 Router ADSL Freedom in a box Installation guide...
-
Page 3: Package Contents
This guide details about the start up process for your Internet connection. You will be able to enjoy your connection in an easy, simple and quick way. Please follow the guide instructions step by step. The Advanced Settings CD includes a video file (AyudaGrafica.exe) with a graphic help of the installation and configuration of your Internet connection. -
Page 4: Power Adapter Connection
Start using your ADSL… 1. Microfilters installation 2. Telephone line connection Connect the grey telephony line cable (5) Connect a microfilter between each tele- to the free outlet (without microfilter) of phony device (telephones, faxes…) and the the multiple adapter (4) and to the ADSL telephone socket. - Page 5 4. Switching on the router WLAN LAN 1X LAN 2X LAN 3X LAN 4X ADSL ALARMA Turn the router on by putting the switch into the ON position. Wait for a few minutes until the LEDs shine as shown below. Indicator Status Description...
- Page 6 Start using your ADSL... 5. Connecting the computer to the router. Two options are available You may either connect your computer to the router using an Ethernet cable if they are sufficiently close to each other or by means of a wireless network. Furthermore, you can simultaneously have certain items of equipment connected to the router using the Ether- net cable and others as portable through the wireless network.
- Page 7 If you are equipped with an external wireless device (PCMCIA or USB adap- ter), install it with the aid of the CD that WLAN LAN 1X LAN 2X LAN 3X LAN 4X ADSL ALARMA is provided with it. If you have a wireless device that is already integrated into your equipment, make sure that it is enabled with the aid of your operating system.
- Page 8 Connection using Windows wireless Search the available wireless networks. client You can update this list with the button When configuring your wireless device in Refresh network list or by clicking the Windows XP SP2, Vista or Windows 7 you button can use the wireless client management application.
- Page 9 Enter the security key that appears on the Check to make sure that the wireless net- router label. work connection icon for the system tray indicates that the connection has been correctly established. IMPORTANT. The wireless security key for the router is of the WPA/PSK type and its format is alphanumerical.
- Page 10 B. Connection using Ethernet cable Connect the yellow Ethernet cable (6) to the Ethernet card on the PC and to one of the router’s connectors labelled as 1X to Switch the PC on. The corresponding LAN indicator will light up in green after a few seconds.
- Page 11 Congratulations, now you can access Internet using your ADSL! Open your browser, go to the web address www.movistar.es and start surfing the net. Should you not be able to access, please refer to the solutions to frequent problems in this guide. Activate your free e-mail accounts and your website with the Internet access service contracted.
- Page 12 Advanced Settings CD The CD is not required to set up your ADSL connection. On the CD you will be able to find further help in response to any needs that might arise regarding your ADSL Internet con- nection. Ayuda Conexión: Graphic help which will guide you along the whole start up procedure to connect to the Internet and the advanced configu-...
- Page 13 Solutions to frequent problems Problem Reason Solution Verify that a microfilter has been installed between each tele- No microfilter has been installed The connection drops if phony device (telephones, faxes…) and services which use the between the phone device and I pick up the phone.
- Page 14 Solutions to frequent problems Problem Reason Solution Your wireless client is not Make sure that your wireless client is correctly installed and I do not have an icon for correctly installed, set up or enabled. More information is contained in the manual for the the wireless client.
-
Page 15: Customer Care
Customer Care The customer care service is available via telephone as well as via Internet. For further information, please refer to chapter 6 in the user’s manual. All the information about ADSL can be found in the “Internet” section at movistar.es: www.movistar.es/adsl Movistar Technical Customer Care Centres... -
Page 16: Additional Information
Additional Information Telefónica de España, S.A.U. Environmental recycling informs We thank you the trust to have acquired a Do not dispose of this ADSL router with Movistar product and we inform you that your normal household waste. Ask your for any clarification, query or complaint, local authorities about the opportuni- you can call for free: ties that are available for disposing of it... - Page 17 +34917990403 +34913510999 Tax ID and Code N7361005G Product identification Description ADSL Wireless Router Brand Comtrend Model CT-5365 Manufacturer: Comtrend Country of Manufacture: China List of applied test standards Standards Issues: EN 55022: 2006 (Category B) EN 61000-3-2: 2006 EN 61000-3-3: 1995/A2: 2005 Wireless Interface: IEEE802.11b/g...
- Page 18 Glossary ADSL: and manage the network traffic, either Asymmetric Digital Subscriber Line. It is a allowing it or rejecting it, according to the digital line for accessing Internet at high network policies defined by the organi- speed. sation that manages the network. It may block the establishment of the connection Antivirus: to the Internet.
- Page 19 Glossary Socket: Wireless Client: A plug that is usually installed on the wall A hardware or software element that is that enables the telephone cable to be used to connect to a network of compu- connected. ters without any kind of cable being used for the purpose.
- Page 20 For getting further information: 1004 +34 699 991 004 Your Movistar shop www.movistar.es Equipment supplied by: C.I.F.: A-28669844 REI-RAEE Code: 000577 Version 1.3...
