- Page 1 Programmable Control Panel Operating Instructions Dual Top Evo 6...
-
Page 2: Table Of Contents
Content Dual Top Evo 6 Content Introduction .................... 3 Remote control ................17 3.6.1 Show actual mode................17 Additional documentation to be used ..........3 3.6.2 Enabling and setting Telestart and Thermo Call .......17 Function description ................4 3.6.3 Disabling Telestart and Thermo Call..........18 3.6.4 Start and stop heater operation using Telestart........18... -
Page 3: Introduction
The operating instructions for the Integrated Dual Top Evo 6 heater must also be observed. These operating instructions are included in the delivery scope of the... -
Page 4: Function Description

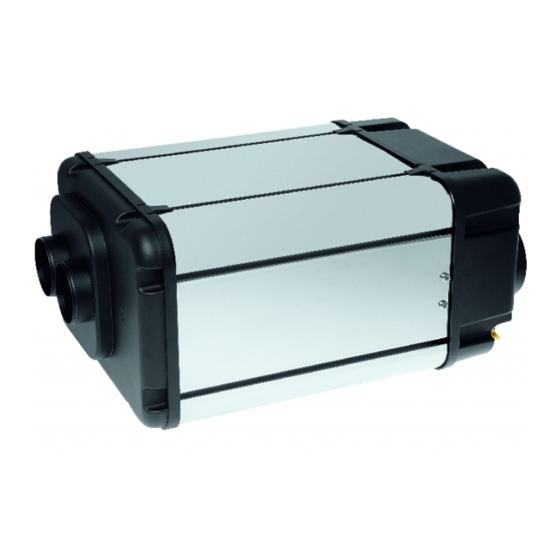

Function description Winter mode (heating without hot water production) The Dual Top Evo 6 integrated heater from Webasto combines the benefits of an interior heater with a water boiler and contributes to a gas-free motor home. The heater is used for providing hot air. -
Page 5: Winter Mode (Heating With Hot Water Production)
See paragraph 3.5: "Programming timer". (5 to 35 °C). • Remote control by Webasto Telestart and Thermo Call (optional controls). The water is heated up to 70 °C. See paragraph 3.6: "Remote control". The device automatically selects the burner setting modulating between 1,500 W and •... -
Page 6: Operating Instructions
Changes to the settings on the control panel are implemented after a short Before starting the heater, observe the information in the operating delay! instructions for the integrated Dual Top Evo 6 heater (included in the delivery scope of the integrated heater or available for downloading at the Internet See Fig. 1. - Page 7 Dual Top Evo 6 Operating Instructions During normal operation you will see the status display. See Fig. 2. ad 7: The heater is ON when the Dual Top Evo is switched on and START (3) is pressed. The heater is operating or in the standby mode.
-
Page 8: Before You Start
After connecting the appliance to the 12 V DC power supply, language, day, date and 3.3.1 Appliance is switched off time have to be set. When the appliance is switched off, display shows ”Webasto Dual Top” as well as Press to select your preferred language: actual time, day and date. -
Page 9: Switching Off The Heater
(manually, by remote control or timer) in a cabin heating mode, For 1 hour the display shows text ”Webasto Dual Top” as well as actual appliance will heat interior and keep it at this temperature. -
Page 10: Summer Mode (Hot Water Only)
Operating Instructions Dual Top Evo 6 3.3.5 Summer mode (hot water only) After 3 seconds power indicator (6) lights green and display changes to: Make sure that the boiler is filled with water. Make sure the device is switched on. -
Page 11: Winter Mode (Heating Without Hot Water Production)
Dual Top Evo 6 Operating Instructions 3.3.6 Winter mode (heating without hot water production) 3.3.7 Winter mode (heating with hot water production) Make sure the device is switched on. Make sure the device is switched on. Press MENU. Press MENU. -
Page 12: Heating While Driving
Operating Instructions Dual Top Evo 6 The water temperature may reach up to 80 °C depending on the heating power that is required to achieve the interior temperature. NO WATER control When winter mode (heating with hot water production) is selected, but the boiler is without water, there will be a warning on the control panel. -
Page 13: Settings Setup
Dual Top Evo 6 Operating Instructions Settings setup This chapter describes how to setup your favourite Dual Top Evo system settings of day, 3.4.2 Language, temperature unit, hour format, display contrast date, time, language, temperature unit, hour format and display contrast correctly. -
Page 14: Programming Timer
Operating Instructions Dual Top Evo 6 Programming timer This allows you to operate the system using a 24 hour 7 day programmable timer. Day setting Within this there are 2 programs you can set for each day, hour by hour, whether the... - Page 15 Dual Top Evo 6 Operating Instructions Press Repeat step 11 and 12 until all 24 hours are programmed. (You will see the hour period displayed at the bottom of the screen.) – select “Show 24 h Program“. Matrix with day, programmed hours and interior temperatures T1 and T2 ap- “Programming 24 h successful”...
-
Page 16: Heating By Timer
Operating Instructions Dual Top Evo 6 “Copy of 24 h program successful” on display. After 3 seconds power indicator (6) lights green and display changes to: After 3 seconds, select another day as described in step 6 and continue to program remaining days. -
Page 17: Remote Control
Dual Top Evo 6 Operating Instructions Remote control Heater can be operated by remote control devices: Webasto Telestart and Thermo Call. 3.6.2 Enabling and setting Telestart and Thermo Call These controls are optional. Signal of remote control over-rules commands of control panel, as long as remote Make sure the device is switched on. -
Page 18: Disabling Telestart And Thermo Call
Operating Instructions Dual Top Evo 6 3.6.3 Disabling Telestart and Thermo Call 3.6.4 Start and stop heater operation using Telestart Make sure the device is switched on. To do this, Telestart must be available and activated. This can be recognised from an indicated symbol “... -
Page 19: Frost
Dual Top Evo 6 Operating Instructions Frost NOTE Any kind of heater operation will be stopped when manually starting boiler drainage. There are several features that protect the water supply system against frost. • Drain water contents manually when there is risk of frost and when storing the NOTE vehicle for a longer period. -
Page 20: How To Stop Draining The Boiler
Operating Instructions Dual Top Evo 6 3.7.2 How to stop draining the boiler NOTE Note that it only works when a 12 V power supply is available! Boiler drainage can be stopped, if circumstances require this. Make sure the device is switched on. -
Page 21: Frost Protection Mode
Dual Top Evo 6 Operating Instructions 3.7.4 Frost protection mode NOTE When the frost protection mode is selected, diesel and electrical power are used. Make This mode is a safety feature for the heater only. It does not prevent the water circuits sure that there's enough diesel in the tank and the battery is charged. -
Page 22: Fault Message Output
The meaning of the messages is shown in the following table. Depending on the type of fault, you may need to visit a Webasto Service Centre. If serious malfunctions such as overheating or failure to start reoccur, the heater is locked and can be put back into service by deleting the failures. - Page 23 Dual Top Evo 6 Fault Message Output Fault message output on control panel Message Meaning Remedy Message 01 No communication between control panel and First, remove fuses 15 A (red cable) and 5 A. Then put in fuse 15A (red cable), followed No data connection heater, or error control panel.
- Page 24 Fault Message Output Dual Top Evo 6 Fault message output on control panel Message Meaning Remedy Message 16 Combustion air motor fault: See message 15. Failure combustion air motor disconnection/short circuit/overload/blocked Message 17 Control unit (heater) fault/heater locked Put heater back into service (see above this table) and restart heater.
-
Page 25: Fuses
Dual Top Evo 6 Fault Message Output NOTE n/a = not available NOTE All messages except message 28 and 29: heater shuts off automatically. Failure of electrical safety/drainage valve (message 28 and 29) will not abort heater operation and will not be shown during heater operation. -
Page 26: Worldwide Warranty
The quality and good operation of Webasto Dual Top Evo products are guaranteed by Webasto for a period of two (2) years, starting from the date of installation. OE installed equipment warranties begin with the purchase of the (recreational) vehicle, not from the date of installation. - Page 27 In multilingual versions the German language is binding. The telephone number of each country can be found in the Webasto service center leaflet or the website of the respective Webasto representative of your country. Webasto Thermo & Comfort SE Postfach 1410...
