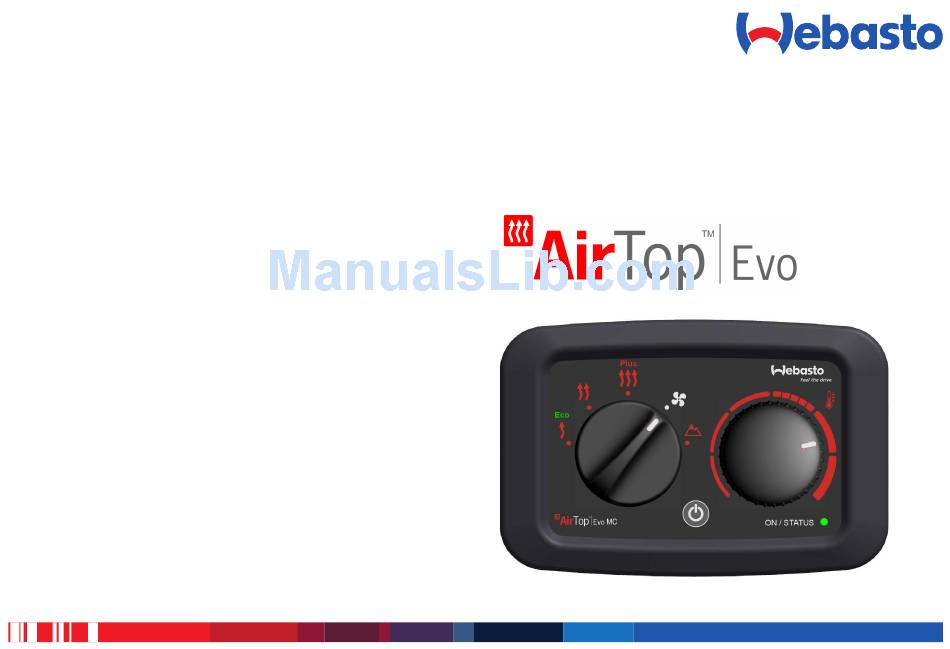

- Page 1 Bedienelement / Control Panel / Organe de commande / Elemento de mando / Elemento di comando / Manöverpanel / Ohjauslaite / Панель управления...
- Page 2 MC04 - AirTop Evo M MC05 - AirTop Evo MC MC04 - AirTop Evo SPM MC05 - AirTop Evo RV e1 03 5192 e1*72/245*2006/96*5192*00...
- Page 3 AirTop Evo MC04/05...

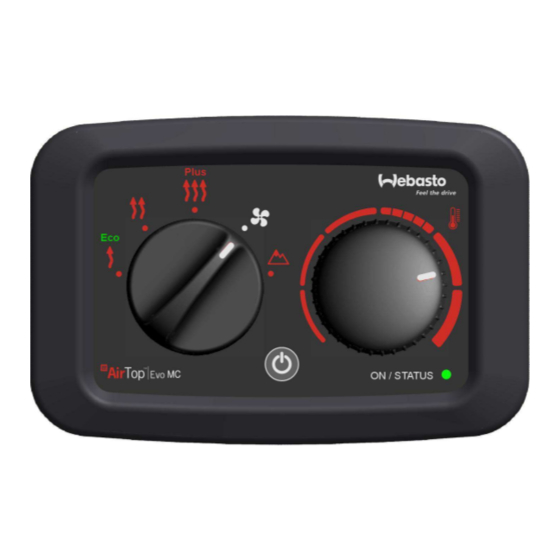

- Page 4 Funktions- Temperatur- Betriebs- Hauptschalter wähler wähler anzeige EIN / AUS Mode selector Temperature Indicator Main switch knob selector ON / OFF Sélecteur Sélecteur Témoin de fon- Interrupteur prin- de fonctions de température ctionnement cipal MARCHE / ARRÊT Selector Selector Indicador Interruptor prin- de funciones de temperatura...
-
Page 5: Table Of Contents
Content General information ......... . 15 Safety instructions . - Page 6 XIII...
-
Page 7: General Information
Dear Webasto customer! D G B We are delighted that you have selected this Webasto product. We trust that the workshop / service centre that carried out the installation explained to you the operation and principle of functioning of your AirTop Evo MultiControl (MC04/05) to your complete satisfaction.This operating and servicing manual... - Page 8 Using the control panel AirTop Evo MultiControl (MC04/05), you can select the functions of the Webasto air heaters AirTop Evo.The control panel is to switch on/off, as well as to preselect the operation modes and the interior temperature. For technical data as well as references to the installation, see the installation instructions of the specific heater.
-
Page 9: Safety Instructions
Safety instructions The heater must not be operated: D G B • In filling stations, fuel depots and refineries. • In places where explosive vapours or dust may build up (e.g. near fuel, coal, wood dust or cereal stores). • Close to inflammable materials such as: Dry grass and leaves, cardboard packaging, paper, Danger of... -
Page 10: Operation
Operation Main switch ON / OFF Switching on the heater By pressing the main switch ON / OFF the heater is activated. After switching on, the main switch illuminates and the indicator "ON / Status" lights to confirm the heater operation. Switching off the heater By pressing the main switch ON / OFF again the heater operation is stopped. -
Page 11: Mode Selector Knob
Mode selector knob With the mode selector knob you can select the desired functions of your heater by placing the index on the desired symbol. D G B Energy saving mode Normal Comfort heating Plus Fast heating Ventilation Altitude Altitude correction (not available for MC04 M and MC04 SPM) You can adjust the desired interior temperature with the temperature selector. -
Page 12: Eco - Energy Saving Mode
Eco - Energy saving mode In this mode the heating is switched to electricity/fuel saving operation.This mode is appropriate for saving battery power and environmentally friendly heating operation and to maintain a moderate temperature level. Important! Depending upon the size of the area to be heated, the ambient temperature and the desired interior temperature, it is possible that the desired temperature may not be attained. -
Page 13: Normal - Comfort Heating
Normal - Comfort heating In this mode the heater runs at maximum nominal power.Air is heated up to the desired temperature.Select this mode for fast warming of the interior or to D G B maintain a moderate temperature level. -
Page 14: Plus - Fast Heating
Plus - Fast heating In this mode the heater temporarily runs at an increased amount of power.This makes it possible to heat up air to the desired temperature in short time.If fast heating of the interior is desired, because it is particularly cold and it shall become warm quickly, this mode can be selected. -
Page 15: Fan - Ventilation
Fan - Ventilation In this mode only the heater fan is operated.The fan speed can be adjusted by temperature selector. D G B This mode provides a flow of fresh air and can be used to cool the interior. Important! If the heater has been operating in combustion mode beforehand, a period of 3 minutes must elapse to allow the system to cool down before a flow of fresh air can be achieved. -
Page 16: Altitude - Altitude Correction
Altitude - Altitude correction With a heater operation over 1,200 m above sea level this mode must be used to reach the desired temperature.This mode ensures an optimal combustion process inside the heater at altitudes up to 2,200 m above sea level. The altitude mode is not available for MC04 versions. -
Page 17: Temperature Selection For Heating / Ventilation
Temperature selection for heating / ventilation Temperature selection when selecting operating mode D G B Economy mode Normal Comfort heating Plus Fast heating Altitude Altitude correction (not available for MC04 versions) Depending on the selected mode of the heater you can adjust the desired interior temperature with the temperature selector. - Page 18 Temperature selection for heating / ventilation Fan speed when selecting operating mode Ventilation In this mode the fan speed may be adjusted with the temperature selector, in order to get the desired flow of fresh air (e.g. for cooling) into the interior.This function does not replace an air conditioning.
-
Page 19: Status Indicator / Service Indicator
After the heater has cooled down normally, the status indicator shuts off. Fault: During an operational fault a flashing code is displayed by the status indicator. This function enables a professional workshop to diagnose the fault efficiently. In this case please visit a Webasto service station! -
Page 20: Service Indicator
Service indicator The indicator shows a flashing code with even frequency for approx. 10 seconds. No fault is present, however, it is recommended to have the device examined/maintained by a Webasto service station. - Page 21 Webasto oppure sul sito Internet del proprio rappresentante di riferimento Webasto. Om det förekommer en flerspråkig version är den tyska bindande. Telefonnumren i respektive land hittar du på Webasto serviceverkstads informationsblad eller på webbplatsen för respektive lands Webasto-representant. Useampikielisten versioiden yhteydessä saksankielinen on sitova.
- Page 22 Servicestellenfaltblatt oder der Webseite Ihrer jeweiligen Webasto-Landesvertretung. In multilingual versions the German language is binding. The telephone number of each country can be found in the Webasto service center leaflet or the website of the respective Webasto representative of your country.
