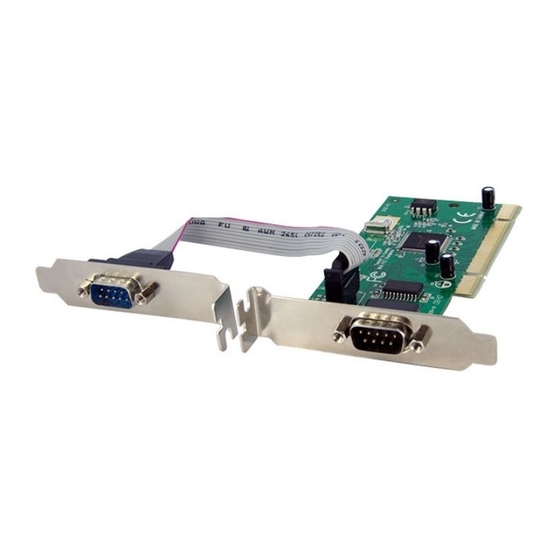

1 and 2 Port PCI RS232 Serial Adapter Card
w/ 16950 UART - Dual Voltage
PCI1S950DV
PCI2S950DV
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 01/27/2012
Advertisement
Table of Contents
Related Manuals for StarTech.com PCI1S950DV
Summary of Contents for StarTech.com PCI1S950DV
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/27/2012...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Table of Contents Introduction ................................1 Before You Begin ..............................1 System Requirements ..........................1 Contents .................................1 Installation................................2 Installing the Serial Card ........................2 Installing the drivers ..........................2 Maximize Data Transfer Rates ........................4 Specifications ..............................5 Technical Support ............................6 Warranty Information ............................6 Instruction Manual... -
Page 4: Introduction
Introduction Thank you for purchasing a StarTech.com 16950 RS-232 Dual Voltage Serial Card. This PCI I/O card allows you use DB-9 cables to connect various serial devices, to any computer with an available PCI expansion slot. Before You Begin System Requirements • A computer with an available PCI port... -
Page 5: Installation
Installation Installing the Serial Card 1. Shut down all power connected to the computer, as well as all devices connected to the computer peripherally (i.e. Printers, Monitors, Scanners etc.). As an added step to ensure safe installation, unplug the power supply from the computer. 2. - Page 6 6. Following installation, please right-click on My Computer, and click Manage. Click on Device Manager to view installed components. Here, you will find the newly installed adapter and ports. Please note: PCI2S950DV installation will result in two ports being displayed in Device Manager. Adapter New Port Instruction Manual...
-
Page 7: Maximize Data Transfer Rates
Properties. Once the Properties window opens, click on the Data Rate tab. Here you will see a button labelled Detect Crystal Frequency. Click on the button to automatically detect the port data transfer capability. Please note that while PCI1S950DV only requires one such configuration, PCI2S950DV will require configuration for each separate port. -
Page 8: Specifications
Specifications PCI1S950DV PCI2S950DV Bus Type PCI 5V / PCI-X 3.3V Form Factor Full/ Low Profile Chipset OX16PCI952 Connectors 1 x DB9 Male 2 x DB9 Male Supported Serial RS-232 Protocol Maximum Data 460 Kbps Transfer Rate Buffer Size 128 byte... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
