Summary of Contents for Intellisystem IT50W

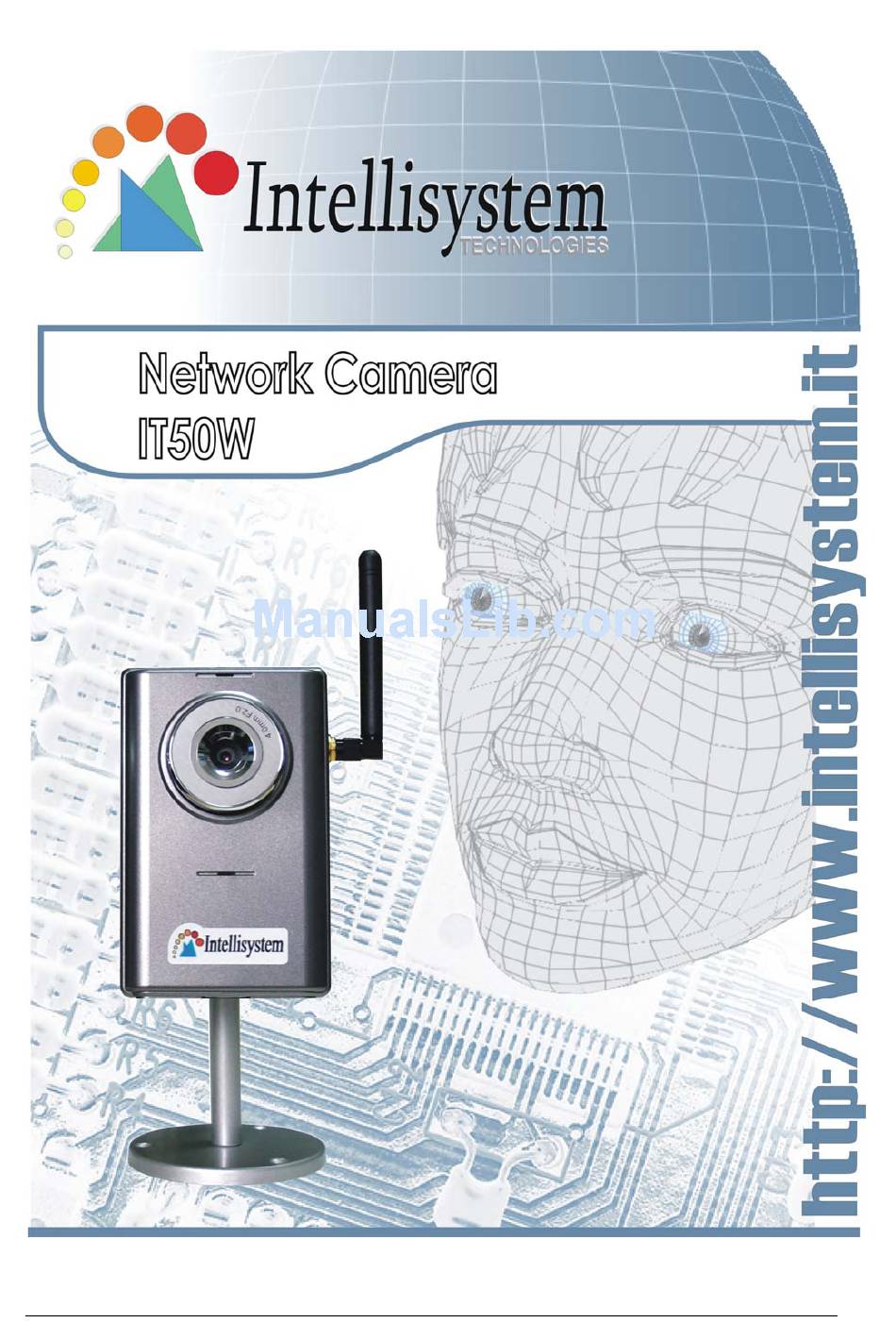

  • Page 1 Intellisystem Technologies S.r.l. – http://www.intellisystem.it...

  • Page 2: Table Of Contents

    Before You Use This Product..............3 Package Contents ..................4 Installation .....................6 Hardware installation................6 Software installation................7 Initial Access to the IT50W Network Camera ..........8 Check Network Settings ..............8 Add Password to prevent Unauthorized Access........8 How to Use ..................9 Authentication................9 Installing plug-in................10 Primary user’s capability ..............
  • Page 3 Status LED ................46 Reset and restore ............... 46 B. Frequently asked questions ............47 C. URL commands of the IT50W Network Camera ......... 50 Capture update Snapshot of JPEG image........50 Query status of the digital input ........... 50 Drive the digital output ...............

  • Page 4: Before You Use This Product

    IT50W User’s Manual Before You Use This Product The use of surveillance devices may be prohibited by law in your country. The IT50W Network Camera is not only a high-performance web-ready camera but also can be part of a flexible surveillance system. It is the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use.

  • Page 5: Package Contents

    IT50W User’s Manual Package Contents IT50W Network Camera Camera stand Antenna Software CD Power adapter Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 4 -...

  • Page 6: Installation

    IT50W Network Camera will try WLAN. During the searching and connecting process to the wireless access point or station, the red LED of the IT50W Network Camera will flash every second. Until the IT50W Network Camera connects to the other wireless device, the red LED will become lighted.

  • Page 7: Software Installation

    Network Camera will switch to wireless LAN mode. To install in wireless LAN If the Ethernet is not available while power on, the IT50W Network Camera will search for any access point with the SSID “default”. Once any access point is found, the LED will turn blue to wait for installation.

  • Page 8: Initial Access To The It50W Network Camera

    Once the Administrator’s password is saved, the IT50W Network Camera will ask for the user’s name and password before each access. The Administrator can set up a maximum of twenty (20) user accounts.

  • Page 9: How To Use

    IT50W User’s Manual How to Use Authentication After opening the Web browser and typing in the URL of the IT50W Network Camera, a dialogue window pops up to request a username and password. Upon successful authentication, the following figure is displayed.

  • Page 10: Installing Plug-In

    IT50W User’s Manual Installing plug-in For the initial access to the IT50W Network Camera in Windows, the web browser may prompt for permission to install a new plug-in for the IT50W Network Camera. Permission request depends on the Internet security settings of the user’s PC or notebook.

  • Page 11: Primary User's Capability

    Configuration functions: The camera can be configured using these user interfaces. Camera View: What the camera sees. Click on the configuration link to the left of the image window to enter the configuration page. Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 11 -...

  • Page 12: Digital Zoom

    Snapshot Click on “Snapshot”, web browser will pop up a new window to show the snapshot. Users can point at the snapshot and click the right button of mouse to save it. Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 12 -...

  • Page 13: Client Settings

    At the initial access to the “Connection type” page in Windows, the web browser will ask for a new plug-in installation, the plug-in being the IT50W Network Camera. This plug-in has been registered for certification and can be used to change the parameters at the client’s site.
  • Page 14 UDP → TCP → HTTP. After the IT50W Network Camera is connected successfully, “Protocol Option” will indicate the selected protocol. The selected protocol will be recorded in the user's PC and will be Intellisystem Technologies S.r.l.
  • Page 15 UDP protocol, save, and return HOME to re-connect. <url> http://<IT50WNetwork Camera>/protocol.html <IT50W Network Camera> is the domain name or the original IP address of the IT50W Network Camera. Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 15 -...

  • Page 16: Administrator's Capability

    1 Mbps, set the “Fix bit rate” to 1000Kbps or 1200Kbps, and set “Fix quality” at the highest quality. The maximum frame rate is 30. If your network bandwidth is more than 384Kbps, you can fix the bit rate according to your bandwidth Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 16 -...
  • Page 17 “Fix bit rate”. You can also fix the bandwidth according to your actual network speed and adjust the frame rate. Start from 30 fps down for best results but not below 15 fps. If the image qualities are not improved, select a lower bandwidth setting. Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 17 -...

  • Page 18: Opening Accounts For New Users

    IT50W Network Camera including the configuration as long as the IP address is known. It is necessary to assign a password if the IT50W Network Camera is intended to be accessed by others. Type a new password twice in (1) to enable protection.

  • Page 19: Change Homepage Layout

    The overloaded viewers will have snapshot mode instead. Change homepage layout How to change the subject text of homepage 1. Click on “Configuration” on homepage, 2. Change the text in “Host name”, 3. Click on “Save” button. Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 19 -...
  • Page 20 3. Find “Background graph” and choose “blank”, 4. Find “Background color” and pull down the list to choose any color you like, 5. Click on “Save” button. * The background color is better to contrast with the font. Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 20 -...
  • Page 21 5. Prepare an image file with size less than 131000 bytes and rename it to wallppr.jpg, 6. Open an FTP client program and connect to the IT50W Network Camera. The user name and password is as same as the Administrator’s.
  • Page 22 IT50W User’s Manual 6. Open an FTP client program and connect to the IT50W Network Camera. The user name and password is as same as the Administrator’s. 7. Transfer logo.gif in local folder to the IT50W Network Camera, 8. Close the FTP program and reload the homepage of the IT50W Network Camera.
  • Page 23 IT50W Network Camera Demo </font> </p> <p align="left"> <!-- Copy the next bold line to where you want to show the image coming from IT50W Network Camera. This line is remark only and is hidden on homepage. //--> <OBJECT ID=VAMCtrl></OBJECT> </p> </body> </html>...
  • Page 24 IT50W User’s Manual 3. Open an FTP client program and connect to the IT50W Network Camera. The user name and password is as same as the Administrator’s. 4. Transfer user.htm in local folder to the IT50W Network Camera, 5. Close the FTP program and reload the homepage of the IT50W Network Camera, 6.

  • Page 25: Build A Multimedia Web Attraction Site

    Product demo for e-business – large-scale service If the number of visitors has exceeded the limit, the IT50W Network Camera can allow the "overload" viewers to see the snapshots in JPEG mode, on the homepage. These are still images and will be refreshed periodically and automatically. It needs a script function supported by the web browser.
  • Page 26 Network Camera. If the web space has FTP service, Set the IT50W Network Camera as an FTP client to upload the pictures. The access to the IT50W Network Camera will be independent of the number of viewers and the picture quality will remain constant.
  • Page 27 IT50W User’s Manual ****** Intellisystem Technologies - IT50W Example homepage begin ****** <html> <head> <title>Example - auto refresh</title> </head> <body background="/pic/wallppr.jpg"> <p align=left> <font size="7" face="Comic Sans MS" color="#FF0000"> IT50W Network Camera Demo </font> </p> <p align=left> <!-- Begin of scripts to auto refresh the image. Change the IP address in the image URL and refreshrate if necessary.

  • Page 28: Build A Security Application

    13.Set the delay to take snapshots after motion to capture the direction of the moving objects, 14.Check the window name set in step 5, 15.Check the way to upload snapshot, 16.Click on save to validate. Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 28 -...

  • Page 29: Software Revision Upgrade

    1. Download the firmware file named “FLASH.BIN” from the appropriate product folder. 2. Upload the whole file by using a common ftp client on the root folder of the IT50W Network Camera. 3. The whole process will finish in a few minutes and it will automatically restart the system.

  • Page 30: Definitions In Configuration

    If the Administrator also wants to set certain options through the URL, read the reference appendix for details. <url> http://<IT50WNetwork Camera>/setup/config.html <IT50W Network Camera> is the domain name or original IP address of the IT50W Network Camera. Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 30 -...

  • Page 31: System Parameters

    "Host name" The text displays the title at the top of the main page. "Keep current date and time" Click on this to reserve the current date and time of the IT50W Network Camera. An internal real-time clock maintains the date and time even when the power of the system is turned off.

  • Page 32: Security Settings

    This feature must be supported by the java script capability of the web browsers. “Snapshot interval” defines the refresh rate of the still image in the homepage seen by the overloaded viewers. Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 32 -...

  • Page 33: Network Settings

    For instance, when the Administrator changes the HTTP port of the IT50W Network Camera whose IP address is 192.168.0.100 from 80 to 8080, the users must type in the web browser “http://192.168.0.100:8080”...

  • Page 34: Wlan Configuration

    “TX rate” This field is for selecting the maximum transmission rate on the network. The default setting is “auto”, that is the IT50W Network Camera will try to connect to the other wireless device with highest transmitting rate.
  • Page 35 Some invalid settings may cause the system failing to respond. Change the configuration only if necessary and consult with your network supervisor or experienced users for correct settings. Once the system has lost contact, refer to Appendix A for reset and restore procedures. Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 35 -...

  • Page 36: Mail & Ftp

    Refer to the instructions for the external FTP server for details. The folder privilege must be open for upload. “Primary FTP passive mode” The IT50W Network Camera is located inside the Intellisystem Technologies S.r.l. – http://www.intellisystem.it...
  • Page 37 FTP may be prohibited. By selecting passive mode, the FTP can bypass the rule and allow snapshot upload to proceed. If the passive mode is selected, the IT50W Network Camera can automatically attempt for active mode, if the external FTP server does not support passive mode.

  • Page 38: Ddns And Upnp Settings

    “Text on video” The text will be displayed in the black bar above the video window with a timestamp. The timestamp is captured from the date and time of the IT50W Network Camera that is maintained by a built-in real-time clock.
  • Page 39 (quantization rate) regardless of the network, it will utilize more bandwidth to send the maximal frames when images change drastically. “Flip” Vertically rotate the video. “Mirror” Horizontally rotate the video. Check options both if the IT50W Network Camera is installed upside down. “White balance” Adjust the value for best color temperature.
  • Page 40 IT50W User’s Manual Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 40 -...

  • Page 41: Motion Detection

    Higher sensitivity and small percentage will allow easier motion detection. The following figure shows the screen when is clicked. The monitoring window has been outlined in red and the graphic bar goes red since the goldfish is moving. Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 41 -...

  • Page 42: Application Settings

    User to the configuration page for motion detection. Sequential operation “Snapshot every second(s)” The IT50W Network Camera will send snapshots at the specified intervals to the external server using the method selected below. Remember: This operation is still subject to the conditions set in the weekly schedule.
  • Page 43 January the 2 , at 3 o’clock, 4 minute, and 5 second. If this suffix is omitted, the file named “video.jpg” on the external FTP server will be refreshed at the specified interval. Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 43 -...

  • Page 44: Homepage Layout Settings

    ”Font color", pull down the list to select any color for the text in the homepage. ”Background color", pull down the list to select any color for the homepage background. It can be seen when the background image is not displayed. Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 44 -...

  • Page 45: Viewing System Log

    After clicking on the “OK” button and make confirmation, the system will restart and require the installer program to set up the network again. Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 45 -...

  • Page 46: Appendix

    Other patterns Reset and restore There is a button in the back of the IT50W Network Camera. It is used to reset the system or restore the factory default settings. Sometimes resetting the system sets the system back to normal state.

  • Page 47: Frequently Asked Questions

    Refer to Appendix A for the procedures. Q Why can I not watch video from the IT50W Network Camera after it is authenticated? A There are many possible scenarios regarding this problem, 1.
  • Page 48 Q The image is not clear enough. A Rotate the lens to adjust the focus after the IT50W Network Camera is installed in the proper position. The image settings and white balance can be fine tuned to achieve the best visual effect.
  • Page 49 You can check the system log to examine any abnormal activities and trace the origins. Q Why can I not access the IT50W Network Camera when I setup some options in the application? A Since the IT50W Network Camera is a "network device", any incorrect network...

  • Page 50: Url Commands Of The It50W Network Camera

    “L” means low that is NO is connected with COMMON. For instance, typing http://192.168.0.201/cgi-bin/setdo.cgi?do=h in the address bar of the web browser will command the IT50W Network Camera, with IP address of 192.168.0.201, to set digital output to connect to NC with COMMON.

  • Page 51: Restore Factory Default Settings

    IT50W User’s Manual Restore factory default settings /setup/restore.cgi The IT50W Network Camera will automatically restart after restoring factory default configurations. Restart system /setup/reset.cgi Restart the IT50W Network Camera without warning. Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 51 -...

  • Page 52: Page Url

    There are some images used on the homepage when the homepage layout is in image mode. The Administrator may use the following links to show the images saved in the IT50W Network Camera on another page. Resource name Referenced URL system logo image /pic/logo.gif...

  • Page 53: General Format Of Command Url

    <domain name or IP address> NTP server zone -12 ~ 12 time zone, 8 means GMT +8:00 Security configuration URL URL: /setup/security.cgi NAME VALUE DESCRIPTION rootpass <text string shorter than 16 change root password characters> Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 53 -...

  • Page 54: Network Configuration Url

    Network configuration URL URL: /setup/network.cgi NAME VALUE DESCRIPTION reset enable installation at next boot disable installation at next boot <IP address> The IT50W Network Camera's IP address subnet <IP address> subnet mask router <IP address> default gateway dns1 <IP address>...

  • Page 55: Ddns & Upnp Configuration Url

    64 bits key length in 128 bits kform key format in HEX key format in ASCII DDNS & UPnP configuration URL URL: /setup/ddns.html Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 55 -...

  • Page 56: Mail & Ftp Configuration Url

    DynDNS.org(Dynamic) DynDNS.org(Custom) TZO.com dhs.org host <text string shorter than 63 The hostname of the IT50W Network characters> Camera usermail <text string shorter than 63 The login username of DDNS server characters> or the email address registered in DDNS server.

  • Page 57: Video Configuration Url

    Pasv2 access FTP server in passive mode access FTP server in active mode Video configuration URL URL: /setup/video.cgi NAME VALUE DESCRIPTION text <text string shorter than 16 enclosed caption characters> color monochrome Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 57 -...
  • Page 58 15 fps set maximum frame rate to 20 fps set maximum frame rate to 25 fps set maximum frame rate to 30 fps flip flip image normal image Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 58 -...

  • Page 59: Image Quality Configuration Url

    FTP suffix <not required> FTP file with date and time suffix delay <integer> seconds delay to detect next event inter <integer> seconds delay to capture post-event Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 59 -...

  • Page 60: Homepage Layout Configuration Url

    URL backurl <text string shorter than 80 URL of image for background characters> fcolor <0 ~ 15> color index for font bcolor <0 ~ 15> color index for background Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 60 -...

  • Page 61: Electromagnetic Compatibility (Emc)

    Shielded interface cables must be used in order to comply with emission limits. Europe - This digital equipment full fills the requirement for radiated emission according to limit B of EN55022/1998, and the requirement for immunity according to EN50082-1/1992 Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 61 -...

  • Page 62: Liability

    IT50W User’s Manual D. Liability Intellisystem Technologies S.r.l. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. Intellisystem Technologies S.r.l. makes no warranty of...

  • Page 63: Technical Specifications

    - Viewing system requirement Resolution: 640x480 AGC, AWB, AES Operating system Electronic shutter: 1/60 ~ 1/15000 second Microsoft Windows 98SE/ME/2000/XP Browser Internet Explorer 5.x or above - Lens Fixed focal with fine tuning, 4.0mm, F2.0 Intellisystem Technologies S.r.l. – http://www.intellisystem.it - 63 -...
