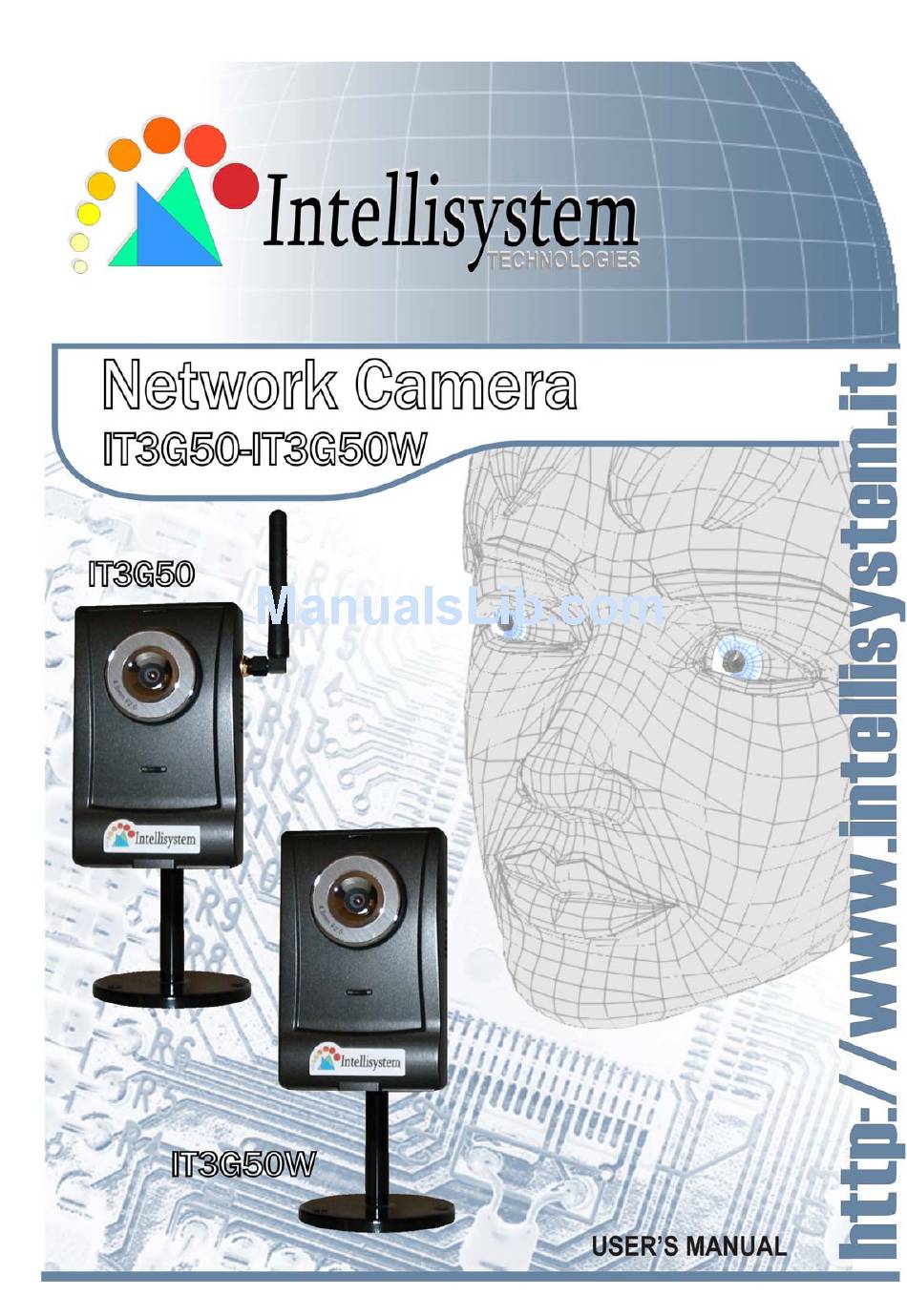

Intellisystem IT3G50 User Manual

Network camera
Hide thumbs Also See for IT3G50:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IT3G50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intellisystem IT3G50

Summary of Contents for Intellisystem IT3G50

  • Page 2: Before You Use This Product

    “Installation” chapter to avoid damages due to faulty assembly and installation. This also ensures the product is used properly as intended. The IT3G50/IT3G50W Network Camera is a network device and its use should be straightforward those...

  • Page 3: Table Of Contents

    IT3G50/IT3G50W User’s Manual Table of Contents Before You Use This Product..............1 Package Contents ..................4 Installation .....................6 Hardware installation................6 Software installation................8 Initial Access to the Network Camera ..........11 Check Network Settings .............. 11 Add Password to prevent Unauthorized Access........ 11 How to Use ..................
  • Page 4 IT3G50/IT3G50W User’s Manual Audio settings ................36 Image Settings ................37 Email & FTP ..................38 Email ..................38 FTP ..................38 Motion detection ................40 Application settings ................42 Snapshot................... 42 Weekly schedule................. 42 Snapshot file name prefix ............42 Send out the snapshot while motion detection ........

  • Page 5: Package Contents

    IT3G50/IT3G50W User’s Manual Package Contents IT3G50/IT3G50W Network Camera (Wired or Wireless) Camera stand Software CD Power adapter Antenna (for wireless model only) Intellisystem Technologies S.r.l. - http://www.intellisystem.it - 4 -...

  • Page 6: Installation

    IT3G50/IT3G50W Network Camera will standby for getting IP address. After getting IP Address, the LED will blink blue every second. The Wireless IT3G50/IT3G50W Network Camera will first detect Ethernet. If it does not connect to Ethernet, the IT3G50/IT3G50W Network Camera will try WLAN. During the...

  • Page 7: Software Installation

    IT3G50W Network Camera in Ethernet to proceed with wireless LAN configuration. Software installation In this manual, "User" refers to whoever has access to the IT3G50-IT3G50W Network Camera , and "Administrator" refers to the person who can configure the IT3G50-IT3G50W Network Camera and grant user access to the camera.
  • Page 8 The method of finding IP address is seeking from 192.168.0.99, to 192.168.0.254. If any of the address inside this range is free, the IT3G50-IT3G50W Network Camera will be assigned to this IP address, and its subnet mask would be 255.255.255.0. If none of the Intellisystem Technologies S.r.l.
  • Page 9 There may be many IT3G50-IT3G50W Network Camera s in the local network. Users can differentiate the IT3G50-IT3G50W Network Camera s with the serial number. The serial number is printed on the labels on the carton and the back of the IT3G50-IT3G50W Network Camera body.

  • Page 10: Initial Access To The Network Camera

    Administrator should immediately implement a new password as a matter of prudent security practice. Once the Administrator’s password is saved, the IT3G50-IT3G50W IT3G50/IT3G50W Network Camera will ask for the user’s name and password before each access. The Administrator can set up a maximum of twenty (20) user accounts.

  • Page 11: How To Use

    How to Use Authentication After opening the Web browser and typing in the URL of the IT3G50-IT3G50W Network Camera, a dialogue window pops up to request a username and password. Upon successful authentication, the following figure is displayed.

  • Page 12: Installing Plug-In

    IT3G50/IT3G50W User’s Manual Installing plug-in For the initial access to the IT3G50/IT3G50W Network Camera in Windows, the web browser may prompt for permission to install a new plug-in for the Network Camera. Permission request depends on the Internet security settings of the user’s PC or notebook.

  • Page 13: Primary User's Capability

    The main page layout has two parts: Configuration functions: The camera can be configured using these user interfaces. Camera View: What the IT3G50-IT3G50W camera sees. Click on the configuration link to the left of the image window to enter the configuration page.

  • Page 14: Digital Zoom

    IT3G50/IT3G50W User’s Manual Digital Zoom Click on the magnifier icon under the camera view then the digital zoom control panel will be shown. Uncheck “Disable digital zoom” and use the slider control to change the zoom factors. Snapshot Click on “Snapshot”, web browser will pop up a new window to show the snapshot.

  • Page 15: Client Settings

    At the initial access to the “Connection type” page in Windows, the web browser will ask for a new plug-in installation, the plug-in being the IT3G50-IT3G50W Network Camera. This plug-in has been registered for certification and can be used to change the parameters at the client’s site.
  • Page 16 After the IT3G50-IT3G50W → IT3G50/IT3G50W Network Camera is connected successfully, “Protocol Option” will indicate the selected protocol. The selected protocol will be recorded in the user's PC and will be used for the next connection. If the network environment is changed, or the Intellisystem Technologies S.r.l.
  • Page 17 UDP protocol, save, and return HOME to re-connect. <url> http://<IT3G50/IT3G50W Network Camera>/client.html <IT3G50/IT3G50W Network Camera> is the domain name or the original IP address of the IT3G50-IT3G50W Network Camera. Intellisystem Technologies S.r.l. - http://www.intellisystem.it...

  • Page 18: Administrator's Capability

    IT3G50/IT3G50W User’s Manual Administrator’s capability Fine-tuning for Best Performance Best performance generally equates to the fastest image refresh rate with the best video quality, and at the lowest network bandwidth as possible. The three factors, “Maximum frame rate”, “Constant bit rate”, and “Fix quality” on the Audio and Video Configuration page, are correlative to allow for achieving the best performance possible.

  • Page 19: Only Quality Images Will Do

    IT3G50/IT3G50W User’s Manual For Best Real-Time Video Images To achieve good real-time visual effect, the network bandwidth should be large enough to allow a transmission rate of greater than 20 image frames per second. If the broadband network is over 1 Mbps, set the “Fix bit rate” to 1000Kbps or 1200Kbps, and set “Fix quality”...

  • Page 20: Opening Accounts For New Users

    That means everyone can access the IT3G50/IT3G50W Network Camera including the configuration as long as the IP address is known. It is necessary to assign a password if the IT3G50/IT3G50W Network Camera is intended to be accessed by others. Type a new word twice in ➀...

  • Page 21: Build A Security Application

    IT3G50/IT3G50W User’s Manual Build a security application The Administrator can use the built-in motion detection to monitor any movement to perform many useful security applications. To upload the snapshots, users can choose either email or FTP according to user’s needs. Both e-mail and FTP use the network settings on the Email and FTP page.

  • Page 22: Software Revision Upgrade

    Software revision upgrade An easy-to-use Upgrade Wizard is provided to upgrade the IT3G50-IT3G50W IT3G50/IT3G50W Network Camera with just a few clicks. The upgrade function is opened to the Administrator only. To upgrade the system, follow the procedures below. 1. Download the firmware file named “xxx.pkg” from the appropriate product folder.

  • Page 23: Definitions In Configuration

    If the Administrator also wants to set certain options through the URL, read the reference appendix for details. <url> http://<IT3G50/IT3G50W Network Camera>/setup/config.html <IT3G50/IT3G50W Network Camera> is the domain name or original IP address of the IT3G50-IT3G50W Network Camera. <url> http://<IT3G50/IT3G50W Network Camera>/setup/system.html <IT3G50/IT3G50W Network Camera>...

  • Page 24: System Parameters

    IT3G50-IT3G50W Network Camera. An internal real-time clock maintains the date and time even when the power of the system is turned off. "Sync with computer time" Synchronizes the date and time of the IT3G50-IT3G50W IT3G50/IT3G50W Network Camera with the local computer. The read-only date and time of the PC is displayed as updated.

  • Page 25: Security Settings

    “Manager user” Pull down the user list to find the user’s name and press complete. <url> http://<IT3G50/IT3G50W Network Camera>/setup/security.html <IT3G50/IT3G50W Network Camera> is the domain name or original IP address of the IT3G50-IT3G50W Network Camera. Intellisystem Technologies S.r.l. - http://www.intellisystem.it...

  • Page 26: Network Settings

    Camera can automatically restart and operate normally after a power outage. Users can run IP installer to check the IP address assigned to the IT3G50/IT3G50W Network Camera if the IP address is forgotten or using the UPnP function provided by the IT3G50/IT3G50W Network Camera (MS Windows XP provides UPnP function at My Network Place).

  • Page 27: Http

    HTTP port IT3G50-IT3G50W IT3G50/IT3G50W Network Camera whose IP address is 192.168.0.100 from 80 to 8080, the users must type in the web browser “http://192.168.0.100:8080” instead of “http://192.168.0.100”. RTSP Streaming “Access name” This is the access URL for making connection from client software.
  • Page 28 IT3G50/IT3G50W User’s Manual <url> http://<IT3G50/IT3G50W Network Camera>/setup/network.html <IT3G50/IT3G50W Network Camera> is the domain name or original IP address of the IT3G50-IT3G50W Network Camera. Intellisystem Technologies S.r.l. - http://www.intellisystem.it - 29 -...

  • Page 29: Wlan Configuration

    “TX rate” This field is for selecting the maximum transmission rate on the network. The default setting is “auto”, that is the IT3G50W IT3G50/IT3G50W Network Camera will try to connect to the other wireless device with highest transmitting rate.
  • Page 30 IT3G50/IT3G50W User’s Manual settings. “Key length” The administrator can select the key length among 64 or 128 bits. 64bits is the default setting. “Key format” Hexadecimal or ASCII. “HEX” is the default setting. ▶ “HEX” digits consist of the numbers 0~9 and the letters A-F.
  • Page 31 IT3G50/IT3G50W User’s Manual Intellisystem Technologies S.r.l. - http://www.intellisystem.it - 32 -...

  • Page 32: Ddns

    “Password/Key” Please input the password or key to get the DDNS service. “Save” Click on this button to save current settings for the DDNS service and UPnP function. <url> http://<Network Camera>/setup/ddns.html <IT3G50/IT3G50W Network Camera> is the domain name or original IP address of the Network Camera Intellisystem Technologies S.r.l. - http://www.intellisystem.it...

  • Page 33: Access List

    Delete button. Both the Allow List and Deny List can have 20 entries. <url> http://<IT3G50/IT3G50W Network Camera>/setup/accesslist.html <IT3G50/IT3G50W Network Camera> is the domain name or original IP address of the IT3G50-IT3G50W Network Camera. Intellisystem Technologies S.r.l. - http://www.intellisystem.it...

  • Page 34: Audio And Video

    (quantization rate) regardless of the network, it will utilize more bandwidth to send the maximal frames when images change drastically. Video orientation “Flip” Vertically rotate the video. “Mirror” Horizontally rotate the video. Check options both if the IT3G50-IT3G50W Intellisystem Technologies S.r.l. - http://www.intellisystem.it - 35 -...

  • Page 35: Audio Settings

    IT3G50/IT3G50W Network Camera is installed upside down. “White balance” Adjust the value for best color temperature. Audio settings <url> http://<IT3G50/IT3G50W Network Camera>/setup/audiovideo.html <IT3G50/IT3G50W Network Camera> is the domain name or original IP address of the IT3G50-IT3G50W Network Camera. Intellisystem Technologies S.r.l. - http://www.intellisystem.it - 36 -...

  • Page 36: Image Settings

    IT3G50/IT3G50W User’s Manual Image Settings Click on this button to pop up another window to tune “Brightness”, “Contrast”, “Hue” and “Saturation” for video compensation. Each field has eleven levels ranged from -5 to +5. In “Brightness” and “Contrast” fields the value 0 indicates auto tuning.

  • Page 37: Email & Ftp

    There are two external FTP server can be configured, primary and secondary FTP server, The IT3G50/IT3G50W Network Camera will use primary server as default , and use secondary server when primary server is unreachable.
  • Page 38 IT3G50/IT3G50W User’s Manual this value from 1025 to 65535. “User name” Granted user name on the external FTP server. “Password” Granted password on the external FTP server. “Remote folder name” Granted folder on the external FTP server. The string must conform to that of the external FTP server.

  • Page 39: Motion Detection

    IT3G50/IT3G50W User’s Manual <url> http://<IT3G50/IT3G50W Network Camera>/setup/mailftp.html <IT3G50/IT3G50W Network Camera> is the domain name or original IP address of the IT3G50-IT3G50W Network Camera Motion detection “Enable motion detection” Check this option to turn on motion detection. Click on this button to add a new window. At most three windows can exist simultaneously.
  • Page 40 IT3G50/IT3G50W User’s Manual Click on this button to save the related window settings. A graphic bar will rise or fall depending on the image variation. A green bar means the image variation is under monitoring level and a red bar means the image variation is over monitoring level.

  • Page 41: Application Settings

    IT3G50/IT3G50W User’s Manual Application settings Snapshot “Enable snapshot” Enable/Disable snapshot application. Weekly schedule “Sun” ~ “Sat” Select the days of the week to perform the application. Select “Always” or input the time interval. Snapshot file name prefix The prefix name will be added on the file name of the snapshot images.

  • Page 42: Method For Sending Snapshot

    IT3G50/IT3G50W User’s Manual Network Camera will send snapshots at the specified intervals to the external server using the method selected below. Remember: This operation is still subject to the conditions set in the weekly schedule. Method for sending snapshot “Email” This selects the uploading method following the intervals set above. The snapshot named “prefix-yyyymmdd-hhmmss.jpg”...
  • Page 43 IT3G50/IT3G50W User’s Manual defined in the next option. This can also be used to refresh the captured images stored in the external web server to build creative homepages. “FTP put snapshots with date and time suffix” This option sets up the snapshot capture date and time, which can be used to easily differentiate the snapshot file names in the sequential operation.

  • Page 44: System Log

    IT3G50/IT3G50W User’s Manual System Log The IT3G50-IT3G50W IT3G50/IT3G50W Network Camera support log the system messages on remote server. The protocol is compliant to RFC 3164. If you have external Linux server with syslogd service, use “-r” option to turn on the facility for receiving log from remote machine.

  • Page 45: Viewing System Parameters

    IT3G50/IT3G50W User’s Manual In the “Current log”, it displays the current system log file. The content of the log provides useful information about configuration and connection after system boot- up. Viewing system parameters Click on this link on the configuration page to view the entire system’s parameter set.

  • Page 46: Maintenance

    IT3G50/IT3G50W User’s Manual Maintenance Three actions can be selected : -“reboot” click the reboot button to restart system; -“factory default” Click on Factory default button on the configuration page to restore the factory default settings. Any changes made so far will be lost and the system will be reset to the initial factory settings.

  • Page 47: Appendix

    Blink blue every second and fast blink red Reset and restore There is a button in the back of the IT3G50-IT3G50W Network Camera. It is used to reset the system or restore the factory default settings. Sometimes resetting the system sets the system back to normal state.

  • Page 48: Url Commands Of The Network Camera

    IT3G50-IT3G50W IT3G50/IT3G50W Network Camera can be easily integrated through convenient URLs. This section lists the commands in URL format corresponding to the basic functions of the erase IT3G50-IT3G50W Network Camera. Get server parameter values Note: This request require administrator access...

  • Page 49: Set Server Parameter Values

    IT3G50/IT3G50W User’s Manual Example: request IP address and it’s response Request: http://192.168.0.123/cgi-bin/admin/getparam.cgi?network_ipaddress Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network.ipaddress=192.168.0.123\r\n Set server parameter values Note: This request require administrator access Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/setparam.cgi? [nosync=<value>&]<parameter>=<value> [&<parameter>=<value>…][&return=<return page>] parameter...

  • Page 50: Available Parameters On The Server

    IT3G50/IT3G50W User’s Manual file(.htm, .html). It can not be a CGI command. It can not have any extra parameters. This parameter must be put at end of parameter list) Return: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: <length>\r\n \r\n <parameter pair>...
  • Page 51 IT3G50/IT3G50W User’s Manual Group: System NAME VALUE DESCRIPTION hostname <text string shorter host name of server (r/w) than 40 characters> <<Wireless>IT3G50/IT3G50W Network Camera > ledoff Do not turn off the led indicator (r/w) Turn off the led indicator date <yyyy/mm/dd>...
  • Page 52 IT3G50/IT3G50W User’s Manual viewmode Using the profile of viewing by computer (r/w) Using the profile of viewing by mobile phone Group: Security NAME VALUE DESCRIPTION username_<1~20 <text string shorter change user name. > than 16 characters> <blank> (r/w) userpass_<0~20> <text string shorter change user’s password.
  • Page 53 IT3G50/IT3G50W User’s Manual router <IP address> default gateway (r/w) (restart) <blank> dns1 <IP address> primary DNS server (r/w) (restart) <blank> dns2 <IP address> secondary DNS server (r/w) (restart) <blank> smtp1 <domain name primary SMTP server (r/w) address, string shorter <blank>...
  • Page 54 IT3G50/IT3G50W User’s Manual (r/w) 63 characters> <blank> ftppass1 <text string shorter than password for primary FTP server (r/w) 15 characters> <blank> ftpfolder1 <text string shorter than upload folder in primary FTP server (r/w) 40 characters> <blank> ftppasvmode1 Enable passive mode of primary FTP server...
  • Page 55 IT3G50/IT3G50W User’s Manual wlmode Infrastructure mode (r/w) Adhoc mode txrate "NONE", "1M", "2M", Transmit rate in Mbps (r/w) "5.5M", "11M", "22M" <Auto> for 802.11b+ "NONE", "1M", "2M", "5.5M", "11M", "6M", "9M", "12M", "18M", "24M", "36M", "48M", "54M", "Auto" 802.11g encrypt...
  • Page 56 IT3G50/IT3G50W User’s Manual key4 <text string shorter than WEP key4 for encryption (r/w) 58 characters> (depends <0000000000> keyformat & keylength) algorithm TKIP TKIP data encryption algorithm for WPA-PSK (r/w) AES data encryption algorithm for WPA-PSK presharedkey <text string shorter than...
  • Page 57 IT3G50/IT3G50W User’s Manual This field is obsolete (use resolution) resolution 176x144 (for mobile) Video resolution 176 x 144 (r/w) 160x120 Video resolution 160 x 120 320x240 Video resolution 320 x 240 640x480 (for Video resolution 640 x 480 computer) color...
  • Page 58 IT3G50/IT3G50W User’s Manual set maximum frame rate to 10 fps set maximum frame rate to 15 fps set maximum frame rate to 20 fps set maximum frame rate to 25 fps 30 (for 60Hz only) set maximum frame rate to 30 fps...
  • Page 59 IT3G50/IT3G50W User’s Manual 6700 set AMR bitrate to 6.7K bps 7400 set AMR bitrate to 7.4K bps 7950 set AMR bitrate to 7.95K bps 10200 set AMR bitrate to 10.2K bps 12200 set AMR bitrate to 12.2K bps Group: Image...
  • Page 60 IT3G50/IT3G50W User’s Manual winobjsize_<0~2> 0 ~ 100 Percent of motion detection window (r/w) <0> winsensitivity_<0~2 0 ~ 100 Sensitivity of motion detection window > <0> (r/w) update Update the above motion detection settings to take effect Group: DDNS NAME VALUE...

  • Page 61: Application Page Cgi Command

    IT3G50/IT3G50W User’s Manual (r/w) service. <1> Group: UPNPfor NAME VALUE DESCRIPTION enable 0, 1 Enable or disable the UPNP port forwarding (r/w) service. <0> Group: App NAME VALUE DESCRIPTION scriptname <text string shorter than File name of script 255 characters>...
  • Page 62 IT3G50/IT3G50W User’s Manual [&weekday=<value>][&time_method=<value>][&begin_time=<value>] [&end_time=<value>] [&ss_prefix=<value>][&trigger_type=<value>] [&md_prenum=<value>][&md_postnum=<value>][&md_delay=<value>] [&sq_interval=<value>] [&send_method=<value][&ftp_suffix=<value>] Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <length>\r\n \r\n <depends on method value> If(method == get || method == set) tue=<value>\r\n wed=<value>\r\n … Else if(method == normal) Application page contents parameter...

  • Page 63: Capture Single Snapshot

    IT3G50/IT3G50W User’s Manual shorter than 60 sequential operation characters> motion Set trigger by motion detect trigger_type sequential Snapshot sequentially 0,1,2 The array indicate which motion windows are used md_win The numbers of snapshot before event md_prenum The numbers of snapshot after event...

  • Page 64: Account Management

    IT3G50/IT3G50W User’s Manual Account management Note: This request requires administrator privilege Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/editaccount.cgi? method=<value>&username=<name>[&userpass=<value>][&privilege=<value>] [&privilege=<value>][…][&return=<return page>] parameter value Description method Add an account to server. When using this method, “username” field is necessary. It will use default value of other fields if not specified.

  • Page 65: System Logs

    IT3G50/IT3G50W User’s Manual return <return page> Redirect to the page <return page> after the parameter is assigned. The <return page> can be a full URL path or relative path according the the current path. If you omit this parameter, it will redirect to an empty page.

  • Page 66: Upgrade Firmware

    IT3G50/IT3G50W User’s Manual Server will return the up-to-date configuration file. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <configuration file length>\r\n \r\n <configuration data>\r\n Upgrade firmware Note: This request requires administrator privilege Method: POST Syntax: http://<servername>/cgi-bin/admin/upgrade.cgi Post data: fimage=<file name>[&return=<return page>]\r\n \r\n <multipart encoded form data>...

  • Page 67: Technical Specifications

    IT3G50/IT3G50W User’s Manual D. Technical specifications - System - Microphone VVTK-1000 CPU: RAM: 32MB SDRAM Omni-directional ROM: 4MB FLASH ROM Frequency: 50 – 16000Hz S/N ratio: more than 60dB Networking Protocol - LED indicator TCP/IP, HTTP, SMTP, FTP, DDNS, UPnP, Telnet, NTP, DNS,...
  • Page 68 Intellisystem Technologies S.r.l. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
