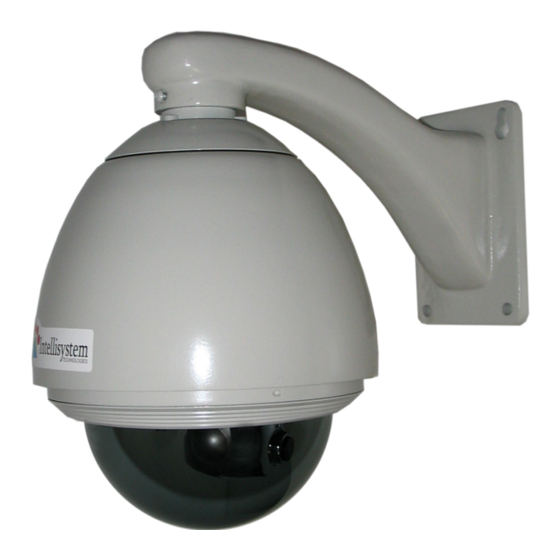

- Page 1 IT610W-LR Pan/Tilt Network Camera Quick Installation Guide This guide describes the basic functions of IT610W-LR. All detailed information is described in the user's manual. Intellisystem Technologies S.r.l. - http://www.intellisystem.it...
- Page 2 IT610W-LR Quick Start Guide Check package contents IT610W-LR Power adapter Remote Controller Software CD Home Auto-Patrol Auto-Pan Center Stop Antennas Intellisystem Technologies S.r.l. - http://www.intellisystem.it...
- Page 3 IT610W-LR Quick Start Guide Physical description Front panel Lens and Manual Focus ring Microphone P o w e r/M IC A c tiv ity Status LEDs Back panel 1 2 V E T H E R N E T M IC E X T .I/O...
- Page 4 IT610W-LR Quick Start Guide Install your Network Camera in Ethernet network 1.If you have external devices such as sensors and alarms, make connection from I/O terminal block 2.Use Ethernet cable to make connection from Ethernet port to the hub. Use Category 5 Cross Cable when Network Camera is directly connected to PC.
- Page 5 IT610W-LR Quick Start Guide Assign IP address 1.Run the Installer from CD-ROM 2.The program will search the cameras on the same LAN. 3.After searching, the main installer window will pop up. Click on serial number that matches the one you just...
- Page 6 IT610W-LR Quick Start Guide The Internet Explorer Connects to the Network Camera At the initial access to the “Connection Type” page, the web browser will ask for a new plug-in installation, the plug in being Network Camera. This plug-in has been registered for certification and can be used to change the parameters at the client’s...
- Page 7 Step 5: Finally cover up (plug the antennas on the bracket, for models IT610W and Step 4: Screw on the two side screws, IT610W-LR only) and the assembling work and plug in the power of the dome. is accomplished. Intellisystem Technologies S.r.l. - http://www.intellisystem.it...
