Intellisystem IT150W User Manual

Hide thumbs Also See for IT150W:
Table of Contents

Advertisement

Quick Links

Download this manual
Intellisystem Technologies -
http://www.intellisystem.it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IT150W and is the answer not in the manual?

Questions and answers

Related Manuals for Intellisystem IT150W

Summary of Contents for Intellisystem IT150W

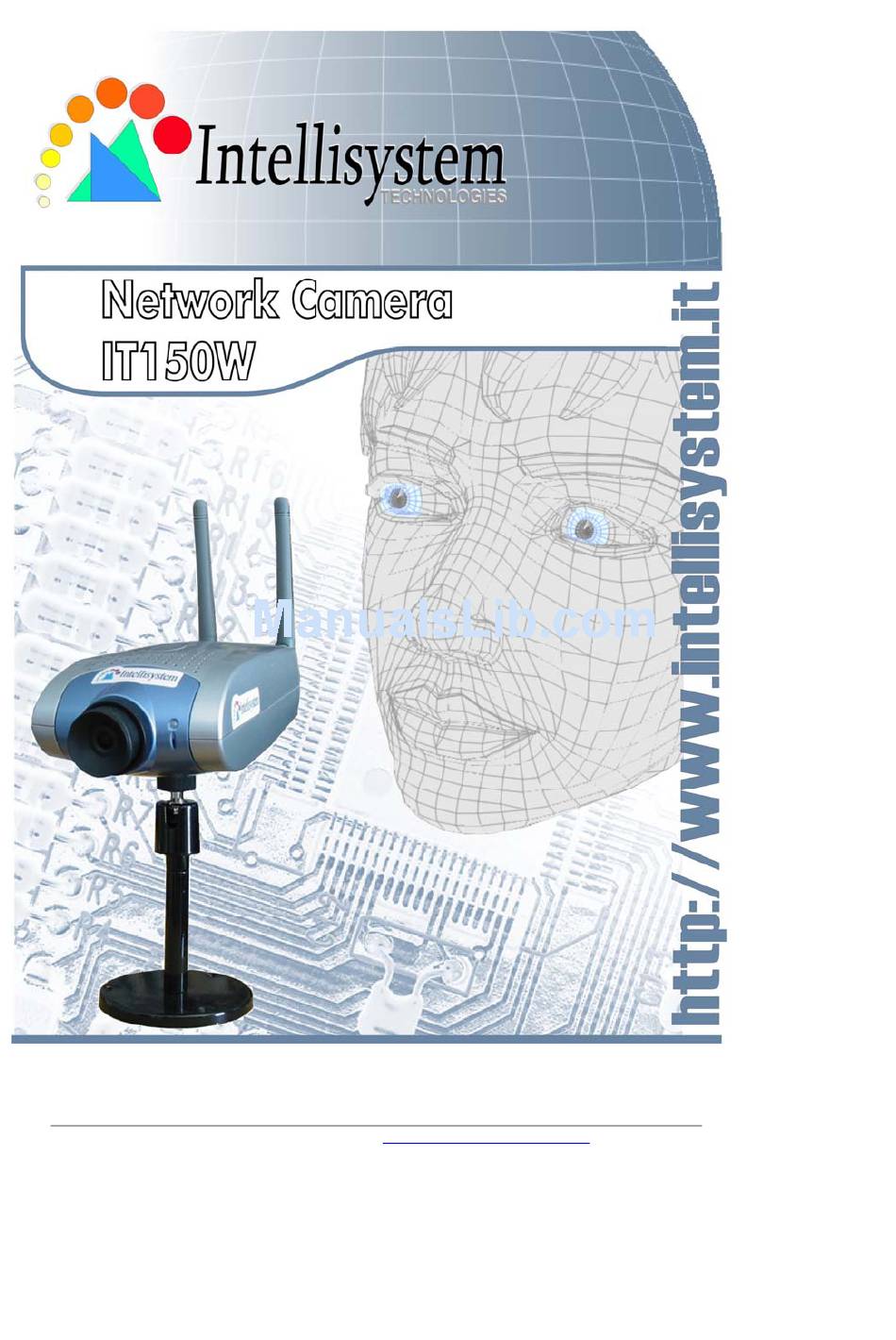

  • Page 1 Intellisystem Technologies - http://www.intellisystem.it...

  • Page 2: Table Of Contents

    Package Contents ....................4 Installation ......................6 Hardware installation ..................6 Software installation ..................8 First access to the IT150W Network Camera............ 12 Check network settings even if connected already ........12 Add password to protect from offense from strangers........12 How to Use ...................... 13 Authentication.....................
  • Page 3 Status LED.................... 47 Reset and restore................... 47 B. Frequently asked questions ............... 52 C URL commands of the IT150W Network Camera..........55 Capture update Snapshot of JPEG image ........... 55 Query status of the digital input ............... 55 Drive the digital output ................55 Restore factory default settings..............

  • Page 4: Before You Use

    Basically the IT150W Network Camera is a network device and should be easy to use for those who already have basic network knowledge. If there is a system error and it does not recover easily due to erroneous configuration, refer to the appendix "Troubleshooting”...

  • Page 5: Package Contents

    IT150W User’s Manual Package Contents Intellisystem Technologies - http://www.intellisystem.it...
  • Page 6 IT150W Network Camera Power adapter Camera stand Installation and document CD Intellisystem Technologies - http://www.intellisystem.it...
  • Page 7 IT150W User’s Manual Intellisystem Technologies - http://www.intellisystem.it...

  • Page 8: Installation

    IT150W User’s Manual Installation Hardware installation All necessary accessories found product package except for the Ethernet cable that depends on the user’s environment. Ethernet cable should meet UTP category 5 that cannot exceed meters. Connect the jack of the power adapter to MiniAVServer prior to plugging the utility end into the utility power socket.
  • Page 9 As soon as the power adapter is plugged into the utility socket, the front LED will switch between green and red for several times. After passing the self-test, the LED will shut off and the IT150W Network Camera will standby for software installation. Otherwise refer to Appendix A for troubleshooting.
  • Page 10 INPUT (Initial state of DI is low) INPUT (Max. 50mA, 12VDC) SW_COMMON OUTPUT (open from SW_OPEN at initial state) (close with SW_OPEN when set DO to ON) SW_NOPEN OUTPUT (Max. 1A, 24VDC or 0.5A, 125VAC) Intellisystem Technologies - http://www.intellisystem.it...

  • Page 11: Software Installation

    IT150W User’s Manual Software installation In the following content, "user" refers to those who can access the IT150W Network Camera and "administrator" refers to the supervisor who can configure the IT150W Network Camera and grant users access. When completing the hardware installation, administrators need to run the Installer program included in the product CDROM to locate the newly installed IT150W Network Camera.
  • Page 12 IT150W User’s Manual If administrators want to use another IP address, modify the IP address text field. If the administrator wants to fix the IP address of the unit, check the option "Use this IP whenever system boots" to skip future installation procedures. Otherwise the unit will need installation whenever it is restarted.
  • Page 13 IT150W User’s Manual After clicking on “Save”, a progressive bar will indicate the installation process. Congratulations! Now the IT150W Network Camera is ready for access. After clicking on in the successful dialog, the "Assigned" field will be labeled "Yes". Administrators should keep the address information for users’...
  • Page 14 A Troubleshooting to restore factory default settings and then use the installer to install again. Once installation is complete, administrators should proceed to the next section "First access to the IT150W Network Camera" for necessary checks and configurations. Intellisystem Technologies - http://www.intellisystem.it...

  • Page 15: First Access To The It150W Network Camera

    IT150W Network Camera always needs user name and password before access. The administrator can setup at most twenty user accounts. Each user is able to access the IT150W Network Camera except for system configuration. Some critical functions are limited only for administrators such as system configuration, user administration and software upgrade.

  • Page 16: How To Use

    How to Use Authentication After opening the Web browser and typing in the URL of the IT150W Network Camera, a dialogue window may pop up to request a username and password except that the administrator does not save any password. Upon successful authentication, the main page will display like the figure below.

  • Page 17: Installing Plug-In

    IT150W User’s Manual Installing plug-in If it is initial access to the IT150W Network Camera in Windows, the web browser may prompt for permission to install a new plug-in that is provided by the IT150W Network Camera. Prompt or not and the prompt message depend on the Internet security settings of user’s PC or notebook.

  • Page 18: Primary User's Capability

    IT150W User’s Manual Primary user’s capability Main screen with camera view There is a logo image shown in the upper left corner. It can link to other web sites or resources depending on the settings in configuration. The assigned caption and system date/time will display in the banner above the image window.

  • Page 19: Connection Type

    If it is the first access to “Connection type” page in Windows, the web browser will ask to install a new plug-in that is provided by the IT150W Network Camera. This plug-in has been registered for certificate and is used to change the parameters at the client side. Users may click on to install the plug-in.
  • Page 20 IT150W User’s Manual <url> http://<IT150W Network Camera>/protocol.html <IT150W> is the domain name or original IP address of the IT150W Network Camera. Intellisystem Technologies - http://www.intellisystem.it...

  • Page 21: Administrator's Capability

    IT150W User’s Manual Administrator’s capability Tune the best performance The best performance means the image refresh rate should be the fastest as possible and the video quality should be the best as possible at the lowest network bandwidth as possible. Three factors, “Maximum frame rate”, “Fix bit rate”, and “Fix quality”...
  • Page 22 IT150W User’s Manual the parameters, the performance may still vary from person to person when multiple users view at the same time. Because the network has burst constraint and everyone’s environment is not the same, any poor connection will drop the normal performance.

  • Page 23: Open Accounts For Users

    IT150W Network Camera including the configuration as long as the IP address is known. It is necessary to assign a password if the IT150W Network Camera is intended to be accessed by others. Type a new word twice in ○, to enable protection.

  • Page 24: Change Homepage Layout

    IT150W User’s Manual Change homepage layout How to change the subject text of homepage 1. Click on “Configuration” on homepage, 2. Change the text in “Host name”, 3. Click on “Save” button. Intellisystem Technologies - http://www.intellisystem.it...
  • Page 25 IT150W User’s Manual How to change the font color 1. Click on “Configuration” on homepage, 2. Click on “Homepage layout” at the left column, 3. Find “Font color” and pull down the list to choose any color you like, 4. Click on “Save” button.
  • Page 26 5. Prepare an image file with size less than 131000 bytes and rename it to wallppr.jpg, 6. Open an FTP client program and connect to the IT150W Network Camera . The user name and password is as same as the administrator’s.
  • Page 27 5. Prepare an image file with size less than 65000 bytes and rename it to logo.gif, 6. Open an FTP client program and connect to the IT150W Network Camera. The user name and password is as same as the administrator’s.
  • Page 28 IT 150W Demo Page </font> </p> <p align="left"> <!-- Copy the next bold line to where you want to show the image coming from IT150W. This line is remark only and is hidden on homepage. //--> <OBJECT ID=VAMCtrl></OBJECT> </p> </body>...
  • Page 29 IT150W User’s Manual 3. Open an FTP client program and connect to the IT150W Network Camera. The user name and password is as same as the administrator’s. 4. Transfer user.htm in local folder to the IT150W Network Camera, 5. Close the FTP program and reload the homepage of the IT150W Network Camera, 6.

  • Page 30: Build A Multimedia Web Attraction Site

    The IT150W Network Camera can allow ten visitors on-line simultaneously. Just follow the installation, focus the IT150W Network Camera on any view you would like friends to share and tell them the address to type in the web browser. Of course you have to maintain your friend list in the security configuration page to filter unexpected strangers.
  • Page 31 Network Camera. If the web space has FTP service, Setup the IT150W Network Camera as an FTP client to upload the pictures. The advantage is the access of the IT150W Network Camera is independent of the viewers to ensure the quality.
  • Page 32 If the web space has no FTP service, An auto-refresh homepage can be used to periodically poll the newest image from the IT150W Network Camera. It is mostly useful in the free web space provider as their FTP service may be limited to use.
  • Page 33 IT150W User’s Manual ****** Intellisystem Technologies - Example homepage begin ****** <html> <head> <title>Example - auto refresh</title> </head> <body background="/pic/wallppr.jpg"> <p align=left> <font size="7" face="Comic Sans MS" color="#FF0000"> IT150W Demo </font> </p> <p align=left> <!-- Begin of scripts to auto refresh the image. Change the IP address in the image URL and refreshrate if necessary.

  • Page 34: Build A Security Application

    IT150W User’s Manual Build a security application Administrators can combine options on the application page to perform many useful security applications. There are two trigger sources coming from attached devices and/or motion detection. There are also two kinds of actions responding...

  • Page 35: Send Snapshots When Motion Is Detected

    IT150W User’s Manual Send snapshots when motion is detected If no external sensor is available, administrators can utilize the built-in motion detection to monitor any abnormal movement and then send emails with snapshots included for security check. 7. Click on “Motion detection” at the left column, 8.

  • Page 36: Software Revision Upgrade

    Customers can obtain the up-to-date software from our web site. An easy-to-use Upgrade Wizard is provided to upgrade the IT150W Network Camera with some clicks. This function is open to administrators only. To upgrade the system, follow the procedures below.

  • Page 37: Definition Of Configuration

    If administrators also want to set certain options through the URL, read the reference appendix for details. <url> http://<IT150W Network Camera>/setup/config.html <IT150W> is the domain name or original IP address of the IT150W Network Camera. Intellisystem Technologies - http://www.intellisystem.it...

  • Page 38: System Parameters

    “Turn off the LED indicator”, check this option to shut off the LED beside the lens. It can prevent others from observing the operation. "Keep current date and time", click to reserve the current date and time of the IT150W Network Camera. An internal real-time clock maintains the date and time even when the power of the system is turned off.

  • Page 39: User Group Administration

    IT150W User’s Manual User group administration “Root password”, to change the administrator’s password, type the new password in both text boxes identically. What is typed will be displayed as asterisks for the security purpose. After pressing , the web browser will ask administrators for the new password for access.

  • Page 40: Network Settings

    Installer program will no longer find the installed units. That implies that the IT150W Network Camera cannot be accessed if no one remembers the IP address, except by restoring factory default settings. However, with this option disabled the IT150W Network Camera can automatically operate normally after restarting in case of losing power.

  • Page 41: Streaming

    “Video channel port”, it can be other than default port 5003 to cooperate with the port opened by the firewall. “Improve audio quality in low bandwidth environment”, if the IT150W Network Camera works in versatile or low network bandwidth environment, users can check this option to improving audio quality by sacrificing some real-time synchronization.

  • Page 42: Mail & Ftp Settings

    IT150W User’s Manual “Shared” – allows communication only with other devices with identical WEP settings. “Open” – communicates the key across the network. “Key length”, selecting the key length among 64, 128 or 256 bits. 64bits is the default setting.

  • Page 43: Ftp

    FTP may be prohibited. Passive mode FTP can bypass the rule and succeed to upload snapshots. If the passive mode is selected, the IT150W Network Camera can automatically attempt for active mode if the external FTP server does not support passive mode.

  • Page 44: Video Codec Parameters

    “Text on video”, the text will be displayed in the black bar above the video window with a timestamp. The timestamp is captured from date and time of the IT150W Network Camera that is maintained by a built-in real-time clock.
  • Page 45 IT150W User’s Manual Intellisystem Technologies - http://www.intellisystem.it...

  • Page 46: Motion Detection

    IT150W User’s Manual Motion detection “Enable motion detection”, check this option to turn on the motion detection. , click on this button to add a new window. At most three windows can exist at the same time. Use the mouse to drag the window frame to resize or the title bar to move. Clicking on the ‘x’...

  • Page 47: Weekly Schedule

    “Reset output”, check and save this option to reset the external device at the digital output back to the original state. Sequential operation “Snapshot every second(s)”, the IT150W Network Camera will send snapshots at the specified Intellisystem Technologies - http://www.intellisystem.it...

  • Page 48: Homepage Layout Settings

    IT150W User’s Manual interval to the external server according to the chosen method. Remember this operation is still subject to the weekly schedule. “Send snapshots by email”, any upload action specified in the options above will use the method chosen here. The captured snapshot named “video.jpg” will be attached in the email with subject “Periodic snapshots”.

  • Page 49: Viewing System Log

    IT150W User’s Manual be seen when the background image is not displayed. Viewing system log Click the link on the configuration page to view the system log file. The content of the file reveals useful information about configuration and connection after the system boots up.

  • Page 50: Appendix

    A. Troubleshooting Status LED After the power has been turned on, the IT150W Network Camera will perform a self-diagnostic to detect any hardware defects. The following table lists the LED patterns in general conditions. In case of any fatal error, the LED will blink in another pattern.
  • Page 51 IT150W User’s Manual RESET: Poke the wrench to click on the button. RESTORE: 1. Poke the wrench to press on the button continuously. 2. Wait for self-diagnostic to run twice. 3. Withdraw the wrench as soon as the second self-diagnostic starts.

  • Page 52: Frequently Asked Questions

    A There are many possible scenarios regarding this problem, 1. If you have just installed the IT150W Network Camera and are unable to watch the video, check if the heartbeat LED is blinking or the lens cap is removed. If the heartbeat LED is dim, perform the software installation again.
  • Page 53 Q The image is not clear enough. A Rotate the lens to adjust the focus after the IT150W Network Camera is installed in the proper position. The image settings and white balance can be fine tuned to achieve the best visual effect.
  • Page 54 You can check the system log to examine any abnormal activities and trace the origins. Q Why can I not access the IT150W Network Camera when I setup some options in the application? A Since the IT150W Network Camera is a "IT150W", any incorrect network settings will make it unreachable.

  • Page 55: C Url Commands Of The It150W Network Camera

    For some customers who already have their own web site or web control application, the IT150W Network Camera can be easily integrated through convenient URLs. This section lists the commands in URL format corresponding to the basic functions of the IT150W Network Camera.

  • Page 56: Restart System

    IT150W User’s Manual Restart system /setup/reset.cgi Restart the IT150W Network Camera without warning. Page URL The configuration page has a frame layout including an option list frame and an option page frame. Referenced URLs, except for the configuration page, direct users to the option page frame only.

  • Page 57: System Resource Url

    System resource URL There are some images used on the homepage when the homepage layout is in image mode. Administrators may use the following links to show the images saved in the IT150W Network Camera on another page. Resource name...

  • Page 58: Security Configuration Url

    IT150W User’s Manual zone -12 ~ 12 time zone, 8 means GMT +8:00 Security configuration URL URL: /setup/security.cgi NAME VALUE DESCRIPTION rootpass <text string shorter than change root password characters> username <text string shorter than add new user characters> userpass <text...

  • Page 59: Network Configuration Url

    IT150W User’s Manual Network configuration URL URL: /setup/network.cgi NAME VALUE DESCRIPTION reset enable installation at next boot disable installation at next boot <IP address> IT150W Network Camera's address subnet <IP address> subnet mask router <IP address> default gateway dns1 <IP address>...
  • Page 60 IT150W User’s Manual 11 Mbps transmission rate 22 Mbps transmission rate preamb long preamble short preamble encr enable data encryption disable data encryption auth auto auto authentication shared shared-key authentication open open-key authentication klen 64 bits key length 128 bits key length...

  • Page 61: Mail&Ftp Configuration Url

    IT150W User’s Manual Mail&FTP configuration URL URL: /setup/mailftp.cgi NAME VALUE DESCRIPTION smtp1 <domain name or IP address> primary SMTP server mailto1 <string shorter than mail recipient address characters> smtp2 <domain name or IP address> secondary SMTP server mailto2 <text string...

  • Page 62: Video Configuration Url

    IT150W User’s Manual Video configuration URL URL: /setup/video.cgi NAME VALUE DESCRIPTION text <text string shorter than enclosed caption characters> size half half x 2 normal color monochrome <other than B/W> color quality fixb fix bit rate <other than fixb> fix quantization...
  • Page 63 IT150W User’s Manual set maximum frame rate to 30 fps mode 50Hz synchronize with 50Hz utility 60Hz synchronize with 60Hz utility auto white balance fixed indoor(2800K) fixed fluorescent 1(3600K) fixed fluorescent 2(4000K) fixed outdoor(6000K) flip flip image normal image mirror...

  • Page 64: Image Quality Configuration Url

    IT150W User’s Manual Image quality configuration URL URL: /setup/image.cgi NAME VALUE DESCRIPTION brightness <-5 ~ 5> adjust brightness of image contrast <-5 ~ 5> adjust contrast of image <-5 ~ 5> adjust hue of image saturation <-5 ~ 5> adjust saturation of image preview <not required>...

  • Page 65: Homepage Layout Configuration Url

    IT150W User’s Manual ioupload < not required > upload snapshot when DI condition matched mdupload < not required > upload snapshot when motion detected sinter <integer> seconds interval for sequential mode sbegin <hh:mm:ss> time to start sequential mode send <hh:mm:ss>...

  • Page 66: Technical Specifications

    IT150W User’s Manual D. Technical specifications - Remote management - Camera specification Configuration and system log can be accessed via Web 1/3 inch color CMOS sensor browser and FTP application remotely 640x480 2.5Lux/F1.4 AGC/AWB - Networking Electronic shutter: 1/60 ~ 1/15000 second Protocol Standard CS mount type lens, 6mm, F1.8...
  • Page 67 Intellisystem Technologies S.r.l. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
  • Page 68 IT150W User Manual – Ver 1.2 For any question and support please contact: Intellisystem Technologies S.r.l. Support: info@intellisystem.it Web Site: http://www.intellisystem.it Intellisystem Technologies S.r.l. - http://www.intellisystem.it...
  • Page 69 IT150W User Manual – Ver 1.2 NOTES: Intellisystem Technologies S.r.l. - http://www.intellisystem.it...
