Summary of Contents for Intellisystem IT110

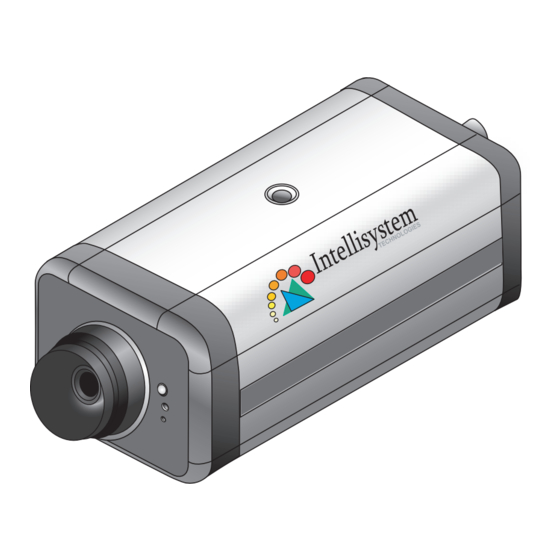

- Page 1 IT110 Network Camera Quick Installation Guide This guide describes the basic functions of IT110. All detailed information is described in the user's manual. Intellisystem Technologies - http://www.intellisystem.it...
-
Page 2: Check Package Contents
IT110 Quick Start Guide Check package contents IT110 Power adapter I/O connector (attached), Camera stand wrench and CS ring Software CD Warrenty card Intellisystem Technologies - http://www.intellisystem.it... -
Page 3: Physical Description
IT110 Quick Start Guide Physical description Front panel Status LED Manual focus ring Internal ring screw Back panel General I/O terminal block BNC video output connector VIDEO ETHERNET 12VDC 10/100 Ethernet 10/100 RJ45 socket Power cord socket Indented reset button... -
Page 5: Assign Ip Address
IT110 Quick Start Guide Assign IP address A Note the serial number from the label on the unit. Network Camera IT110 S/N : 0002D1XXXXXX Tested to comply with FCC standards This serial number is the same as Ethernet address, for example: 0002D1000012=00-02-D1-00-00-12... - Page 6 IT110 Quick Start Guide Using DOS command in Windows Start a DOS window and type the following command Syntax : arp -s <Server IP address> <Ethernet address> ping <Server IP address> Example : 1.Type arp command and press enter 2.Type ping command and press enter 3.If you see the reply message, the unit has been installed successfully...
- Page 7 IT110 Quick Start Guide Start the Internet Explorer to verify your installation 1.Type the IP address and press enter At the initial access to the “Connection Type” page, the web browser will ask for a new plug-in installation, the plug in being Network Camera.
