IT-FHDCC06 Series

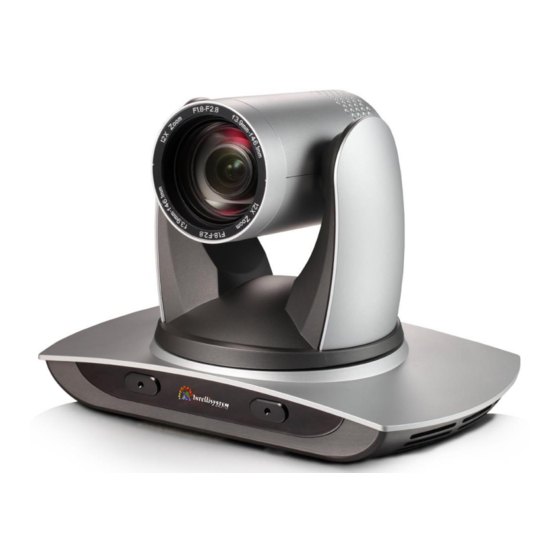

Information and Communication PTZ Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IT-FHDCC06 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intellisystem IT-FHDCC06 Series

Summary of Contents for Intellisystem IT-FHDCC06 Series

  • Page 1 IT-FHDCC06 Series Information and Communication PTZ Camera User Manual...
  • Page 2 Attentions Electric Safety Installation and operation must accord with electric safety standard Caution to transport Avoid stress, vibration and soakage in transport, storage and installation. Polarity of power supply The power supply of the product is ±12V; the max electrical current is 2A .Polarity of the power supply drawing.

  • Page 3: Table Of Contents

    Content 1. Fast Installation ................................ 3 1.1 Camera Interface Explanation ........................3 1.2 Power on Initial Configuration ........................3 1.3 Video output ..............................4 1.4 Audio in/out output ............................4 2. Product overview ..............................5 2.1 Product introduction ............................5 2.2 Main Features ..............................

  • Page 4: Fast Installation

    1. Fast Installation 1.1 Camera Interface Explanation Figure 1.1 Interface of IT-FHDCC06 Camera lens 10. RS232 control interface (output ) Camera base 11. RS485 input (left +,right-) Built-in pick-up 12. A-out: Audio output interface Remote Controller Receiver light 13. A-in: Audio input interface Bottom DIP switch 14.

  • Page 5: Video Output

    1.3 Video output This series has a variety of video output; ST models have video output from LAN, HDMI and 3G-SDI. 1) video output from LAN Network cable connection port: refer to No.16 in figure 1.1. Webpage Login: open your browser and enter 192.168.5.163 in the address bar (factory default); press Enter to enter into the login page;...

  • Page 6: Product Overview

    2. Product overview 2.1 Product introduction 2.1.1 Product model There are three main series according to different video output interface: Refer to figure 2.1: Model NO.X—XXX—XX IR ---IR remote controller WR---wireless remote controller 12---12x optical zoom lens 20---20x optical zoom lens S---1080P60 downward compatibility M---1080P30downward compatibility Figure 2.1: models...

  • Page 7: Main Features

    2.1.3 Accessory When you unpack, check that all the supplied accessories are included: refer to table 2.1: Model NO. Standard Optional Power adapter 1piece IR Remote controller 1 pcs RS232 cable 1piece wireless controller 1piece User manual 1piece Wall mounting bracket 1 set Accessory Upside-down mounting Double-side glue shim 4pcs...

  • Page 8: Technical Specification

    13. Wide application: tele-education, lecture 14. Capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems. 2.2.2 Network performance Audio Input Interface: Support 16000,32000,44100,48000 sampling frequency and AAC, MP3, PCM audio coding. Multiple Audio/Video compression: Support H.264/H.265 video compression; AAC,MP3 and PCM audio compression;...
  • Page 9 Input / Output Interface HDMI,3G-SDI,LAN,RS232（Ring through RS232 Video Interfaces port）,RS485,A-IN,A-OUT,Biult-in pick-up Image Code Stream Dual stream output Video Compression H.264,H.265 Format Control Protocol VISCA/PELCO-D/PELCO-P; Baud Rate: 115200/9600/4800/2400bps Audio Input Interface Double track 3.5mm linear input; Audio Compression AAC/MP3 Audio compression Format HD IP Interface 100M IP port(100BASE-TX);...

  • Page 10: Interface Instruction

    2.4 Interface instruction 2.4.1 External Interface 1) External interface: Rotary switch, RS232 input output, RS485 input, audio input, 3G-SDI output, VI（HDMI）output, LAN, DC12V power interface. Figure 2.3 external interface diagram 2.4.2 Bottom DIP Switch Bottom DIP Switch diagram shown in Figure 2.5:...
  • Page 11 Figure 2.5 Bottom DIP Switch diagram Two DIP switches are set to ON or OFF to select different modes of operation as shown in Table 2.2 Table 2.2 DIP Switch setting Explanation Software upgrade mode Working mode 2.4.3 Rotary DIP Switch Sixteen rotary DIP 0-F interface diagram shown in Figure 2.6;...
  • Page 12 2.4.4 RS-232 interface 1) RS-232C interface specification as shown below Computer or keyboard and camera connection method Camera WindowsDB-9 1.DTR 1.DCD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI 2) RS-232 Mini-DIN 8-pin Port Definition Port Definition Data Terminal Ready...
  • Page 13 3) RS232 (DB9) Port Definition Port Definition Data Carrier Detect Receive Data Transmit Data Data Terminal Ready System Ground Data Set Ready Request to Send Clear to Send Ring Indicator 4) VISCA networking as shown below: Camera cascade connection method Camera 1 Camera 2 1.DTR...

  • Page 14: Application Instruction

    3. Application Instruction 3.1 Video Output 3.1.1 Power-On Initial Configuration Connecting the power, camera will have initial configuration, IR indicator light will be flashing. When the camera return to the HOME position (middle position for P/T), and lens finish zoom in/out, the auto-testing is finished.

  • Page 15: Remote Controller

    3.2 Remote controller 3.2.1 Keys Instruction 1. Standby key After 3S long press, the camera will step into standby mode. Long press 3S again, the camera will initial configuration again and back to HOME position. (Note: If power-on mode is turned on and Preset 0 is set, and there is no operation within 12s,it will automatically point to the specified preset position.
  • Page 16 【*】+【＃】+【F3】:Camera Address No. 3 【*】+【＃】+【F4】:Camera Address No. 4 12. Key combination Functions 1) 【#】+【#】+【#】:Clear all presets 2) 【*】+【#】+【6】:Restore factory defaults 3) 【*】+【#】+【9】:Flip switch 4) 【*】+【#】+ Auto: Enter into the aging mode 5) 【*】+【#】+【3】:Menu set to Chinese 6) 【*】+【#】+【4】:Menu set to English 7) 【*】+【#】+ Manual: Restore the default user 8) 【#】+【#】+【0】:Switch the video format to name, password, and IP address...
  • Page 17 3) Zoom Control ZOOM IN: press “ZOOM “ key ZOOM OUT: press “ZOOM ” key Press and hold the key, the camera will keep zooming in or zooming out and stops as soon as the key is released. 4) Focus Control Focus (near):Press ”【focus+】”...

  • Page 18: Menu Setting

    7) Camera Remote Controller Address Setting 【*】+【＃】+【F1】:Camera Address No.1 【*】+【＃】+【F2】:Camera Address No. 2 【*】+【＃】+【F3】:Camera Address No. 3 【*】+【＃】+【F4】:Camera Address No. 4 3.3 MENU SETTING 3.3.1 Main menu In normal working mode, press 【MENU】 key to display the menu, using scroll arrow to point at or highlight the selected items.
  • Page 19 3.3.2、System setting Move the pointer to the (Setup) in the Main Menu, click the【HOME】key and enter into the (System Setting) as shown below, SETUP ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Protocol Auto Visca Address Visca Address Fix PELCO-P Address PELCO-D Address Baudrate 9600 [↑↓] Select [← →] Change Value [Menu] Back [←...
  • Page 20 1） EXPOSURE SETTING Move the pointer to the (EXPOSURE) in the Main Menu, click the【HOME】and enter the (EXPOSURE SET) as follow, EXPOSURE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Mode Auto Flicker 50Hz G. Limit [← →] Change Value [↑↓] Select [Menu] Back MODE: Auto, Manual, Shutter priority, Iris priority and Brightness priority. EV: exposure compensation setting, ON/OFF (only available under AUTO exposure mode) Compensation level:-7~7 for options(only available when EV is ON) BLC: ON/OFF for options (only available in auto mode)
  • Page 21 2） COLOR SETTING Move the pointer to the (COLOR) in the Main Menu, click the【HOME】and enter the (COLOR SET) as follow, COLOR ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ WB Mode Auto RG Tuning BG Tuning Saturation 100% AWB Sensitivity [↑↓] Select [← →] Change Value [Menu] Back MODE: Auto, Manual, Shutter priority, Iris priority and Brightness priority.
  • Page 22 Brightness: 0~14 Contrast: 0~14 Sharpness:0~15 Flip-H: horizontal flip, On/Off Flip-V: vertical flip, On/Off B&W mode: color, B/W for options Gamma:default,0.45,0.50,0.55,0.63 DZoom: digital zoom options: On/Off DCI: Dynamic Contrast: Off,1～8 4） FOCUS Move the pointer to the (FOCUS) in the Menu, click the【HOME】and enter the (FOCUS) as follow, FOCUS ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝...
  • Page 23 3.3.4、P/T/Z 。 Move the pointer to the (P/T/Z) in the Main Menu,click the【HOME】and enter the (P/T/Z) as follow P/T/Z ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Speed by zoom Zoom speed Image Freezing Acc Curve Slow [↑↓] Select [← →] Change Value [Menu] Back Speed by zoom: Only effective when use remote controller, On/ Off optional. When zoom in, the PT control speed by remoter decreases proportionally.
  • Page 24 3.3.6、VERSION Move the pointer to the (VERSION) in the Main Menu, click the 【HOME】 and enter the (VERSION) as follows. Note: Version information will be different for different models and manufacture date. VERSION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ MCU Version 2.0.0.15 2015-12-18 Camera Version 2.0.0.13 2015-12-18 AF Version 2.0.0.6 2015-12-11...

  • Page 25: Network Connection

    4. Network Connection 4.1 Connecting Mode Direct connection: Connect the camera and computer by network connecting cable. Internet connection mode: Connect the camera to Internet by Router or Switch and user can log in the device by browser. Note: Please do not put the power and network cable in places where can be easily touched to prevent video quality lowered by unstable signal transmission due to poor contact of cables.
  • Page 26 Note: The IP address to be added cannot be same with that of other computers or devices. The existence of this IP address needs to be verified before adding.

  • Page 27: Web Client

    Click the “Start” and select “Operation” to input cmd as picture below to verify if the network segment has been successfully added. Click “OK” and open the DOS command window, input ping 192.168.5.26 and press Enter key, it will show message as below: which means network segment adding is succeed.
  • Page 28 When first using IE browser to access the web conferencing camera, the login page will appear “Playback plug-in is not installed, please download and install!”. Click on this message, download and install MRWebXinstall.exe, according to information prompts. After installing the plug, enter user name and password, click and Sign (initial default user name and password: "admin", users can change the user name and password on their own after entering) into the Web client management interface.
  • Page 29 1) Local configuration Video Preview Mode: user can choose real-time priority or fluency priority: The delay will be small when under real time priority mode and fluency will be good when under fluency priority mode. Setting based on the user need (Default value: real time best (1),real time normal (2),fluency normal (3),fluency good (4) and fluency best (5)) Recording packing time (minute): Set recording video packing time (default is 3, range from 1~120 minutes) Recording/Snapshot file storage route: Set local recording video/snapshot file storage route.(Default D:\MyIPCam\)
  • Page 30 Gain limit: set the gain limits, auto, active when it is status of aperture or brightness priority (default 7,0-15 optional). Dynamic range: set the dynamic range (default 2,1-8 and OFF optional). Shutter speed: active when it is status of manual or shutter-priority (default 1 / 90,1 / 90,1 / 100,1 / 1/120 / 180,1 / 250,1 / 350,1 / 500,1 / 725 1 / 1000,1 / 1500,1 / 2000,1 / 3000,1 / 1/4000 / 6000,1 / 10000 optional).
  • Page 31 4.2.6、Network configuration 1) Network port Data port: set the data port, the device will restart automatically after changed (default 3000,0-65535 optional). Web Port: Set Web port, the device will restart automatically after changed (default is 80,0-65535 is optional). Onvif Port: Set Onvif port, the device will restart automatically after changed (default 2000,0-65535 optional). Soap Port: Set Soap port (default 1936,0-65535 optional).
  • Page 32 Time setting: Set time mode (to choose the computer time synchronization, NTP server time synchronization, or set manually). Computer Time: Set the computer synchronization valid. Set the time manually: Click calendar icon on the right to set time manually (only effective when time setting is MANUAL). 3) User Management Select users: Set the user type (the default administrator, Common User 1, Common User 2 optional) User name: set the user name (Select User Administrator default admin;...

  • Page 33: Serial Communication Control

    5. Serial Communication Control Under common working condition, the camera could be controlled through RS232/RS485 interface (VISCA), RS232C serial parameter are as follows: Baud rate: 2400/4800/9600/115200 bits / sec; Start bit: 1; data bits: 8; Stop bit: 1; Parity: None. After power on, the camera first go left, then back to the middle position.
  • Page 34 Command Function Command packet Note Manual Focus 8x 01 04 38 03 FF 8x 01 04 47 0p 0q 0r 0s pqrs: Zoom Position CAM_ZoomFocus Direct 0t 0u 0v 0w FF tuvw: Focus Position Auto 8x 01 04 35 00 FF 3000K 8x 01 04 35 01 FF 4000k...
  • Page 35 Command Function Command packet Note Down 8x 01 04 21 03 FF Direct 8x 01 04 51 00 00 00 0p FF p: WDR Level Positon CAM_NR（2D） 8x 01 04 53 0p FF P=0-7 0:OFF 8x 01 04 54 0p FF P=0-8 0:OFF CAM_NR（3D）...
  • Page 36 Command Function Command packet Note 8x 01 7D 01 03 00 00 FF IR(remote commander)receive message IR_ReceiveReturn 8x 01 7D 01 13 00 00 FF via the VISCA communication ON/OFF CAM_SettingReset Reset 8x 01 04 A0 10 FF Reset Factory Setting CAM_Brightness Direct 8x 01 04 A1 00 00 0p 0q FF...
  • Page 37 y0 50 03 FF One Push Mode y0 50 04 FF 5000K y0 50 05 FF Manual y0 50 00 FF 6500K CAM_RGainInq 8x 09 04 43 FF y0 50 00 00 0p 0q FF pq: R Gain CAM_BGainInq 8x 09 04 44 FF y0 50 00 00 0p 0q FF pq: B Gain y0 50 00 FF...
  • Page 38 1:1080P50 2:1080i60 3:1080i50 4:720P60 5:720P50 6:1080P30 7:1080P25 8:720P30 9:720P25 A：1080P59.94 B：1080i59.94 C：720P59.94 D：1080P29.97 E：720P29.97 ww: Pan Max Speedzz: Tilt Max Pan-tiltMaxSpeedInq 8x 09 06 11 FF y0 50 ww zz FF Speed y0 50 0w 0w 0w 0w wwww: Pan Positionzzzz: Tilt Pan-tiltPosInq 8x 09 06 12 FF 0z 0z 0z 0z FF...

  • Page 39: Pelco-D Protocol Command List

    5.2 PELCO-D protocol command list Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00...

  • Page 40: Pelco-P Protocol Command List

    5.3 PELCO-P protocol command list Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed 0xAF Right...

  • Page 41: Camera Maintenance And Troubleshooting

    6. Camera Maintenance and Troubleshooting Camera Maintenance 1) If camera is not used for long time, please turn off power adapter switch and AC plug. 2) Use soft cloth or tissue to clean the camera cover. 3) Use soft cloth to clean the lens; Use neuter cleanser if bad smeared. No use strong or corrosive cleanser or corrosive cleanser avoiding scuffing.
  • Page 42 ——a, Check whether the camera serial device protocol, baud rate, address is consistent b, Check whether the control cable is connected properly c, Check whether the camera working mode is the normal operating mode (see Table 1.2 and Table 1.3) 6) Web pages cannot log in ——a, Check whether the camera is showing normally.
  • Page 43 Copyright Notice: All the contents of this manual and the copyright ownership belong to the company. Without the approval of the Company, no one can imitate, copy, reproduce or translate arbitrarily. This manual does not have any form of warranty, express or other imply.
