K 4.86 M
K 5.86 M
Before first use of the unit
read these operating
instructions and act in
accordance with them



  Summary of Contents for Kärcher K 4.86 M

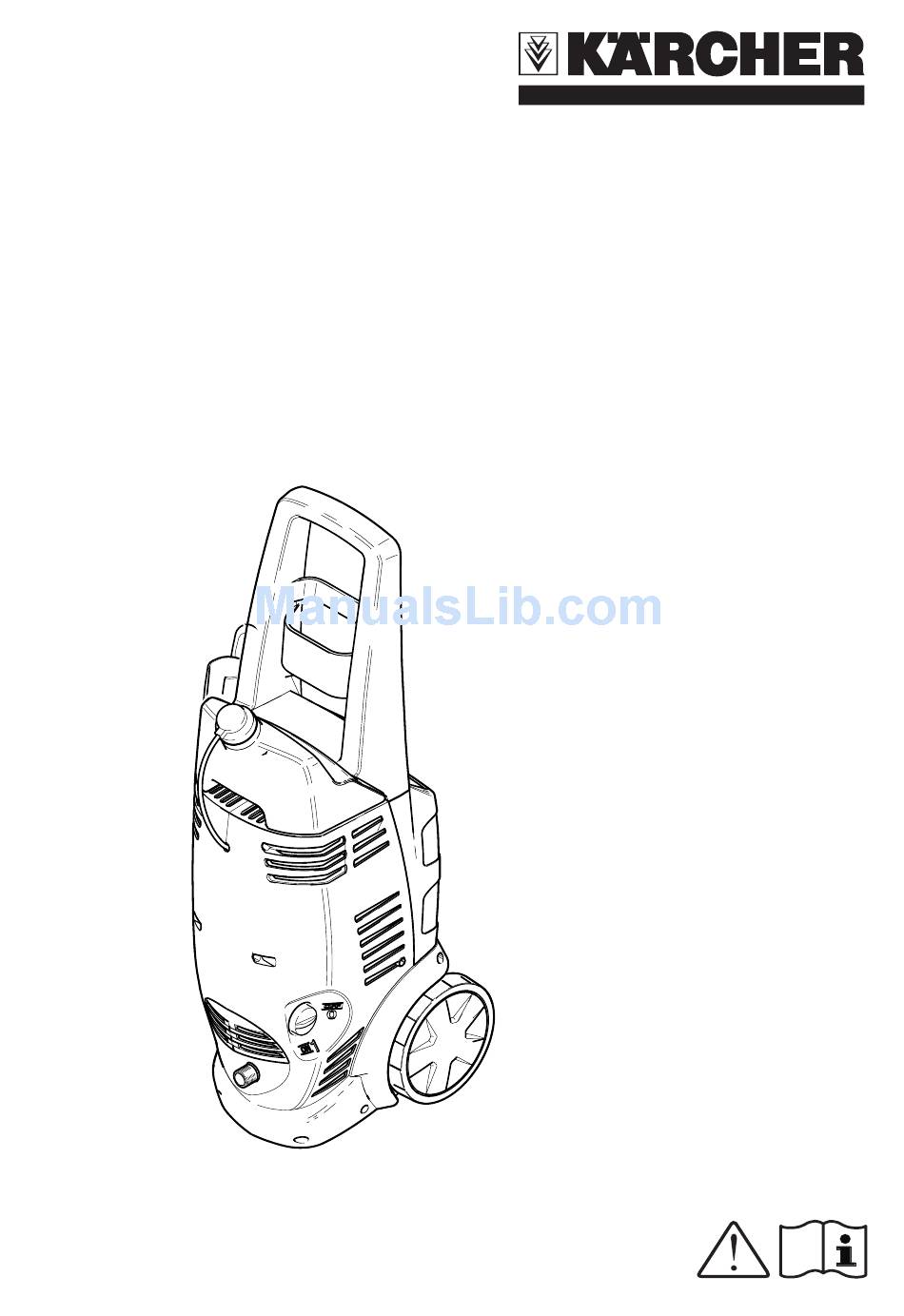

  • Page 1 K 4.86 M K 5.86 M Operating Instructions Before first use of the unit read these operating instructions and act in accordance with them 5.962-344.0 06/07...
  • Page 3: Proper Use

    Dear Customer, Please read and comply with these instructions prior to the initial operation of your appliance. Retain these operating instructions for future refer- ence or for subsequent possessors. Proper Use This high-pressure cleaner is designed for domestic use only: to clean machines, vehicles, buildings, –...
  • Page 4 sonous. Do not use acetone, undiluted acids and solvents as they are aggres- sive towards the materials from which the appliance is made. Warning Unsuitable extension cables can be hazardous. Only use extension cables outdoors which have been approved for this purpose and labelled with a suffi- cient cable cross section: 1 - 10 m: 1,5 mm...
  • Page 5: Safety Devices

    Safety Devices Safety devices prevent injury and may not be modified or bypassed. Unit switch The switch prevents unintended starting of the appliance. Stop the appliance during breaks or after operation. Safety catch The safety catch on the trigger gun pre- vents the appliance from being switched on unintentionally.
  • Page 6 Use the Kärcher water filter to protect the HP pump and accessories (special accessories, order no. 4.730-059). This filter removes dirt from incoming water. As the standard coupling system is not suitable for use in suction mode, the Kärcher suction hose with integrated fil- ter should be used instead (special ac- cessory, order no.
  • Page 7: Interrupting Operation

    Interrupting operation Release the lever on the trigger gun. During breaks, use the safety catch to secure the trigger gun lever. During longer breaks (more than 5 min- utes), also turn the appliance off using the ON/OFF switch. Finish operation If detergent has been added: Suspend detergent suction hose in a container filled with clear water, switch the appli-...
  • Page 8 Troubleshooting You can rectify minor faults yourself with the help of the following overview. If in doubt, please consult the authorized customer service. Risk of injury Always switch off the appliance and pull out the mains plug before care and mainte- nance work.
  • Page 9 Working pressure Max. permissible pressure Water flow rate Sound pressure level (EN60704-1) Sound power level (2000/14/EG) Weight with accessories K 4.86 M / K 5.86 M Power connection Voltage 1~50 Hz Mains fuse (slow-blow) Protective class Water connection Max. feed temperature Min.
  • Page 12 Karcher Limited (Ireland) 12 Willow Business Park Nangor Road Clondalkin Dublin 12 ☎ (01) 409 77 77 Karcher Co. Ltd. (South Korea) Youngjae B/D, 50-1, 51-1 Sansoo-dong, Mapo-ku Seoul 121-060 ☎ 032-465-8000 Karcher Cleaning Systems Sdn. Bhd. No. 8, Jalan Serindit 2...

This manual is also suitable for:

K 5.86 m
