User Manual
Installation Guide
for EHE0200153 & EHE0200154

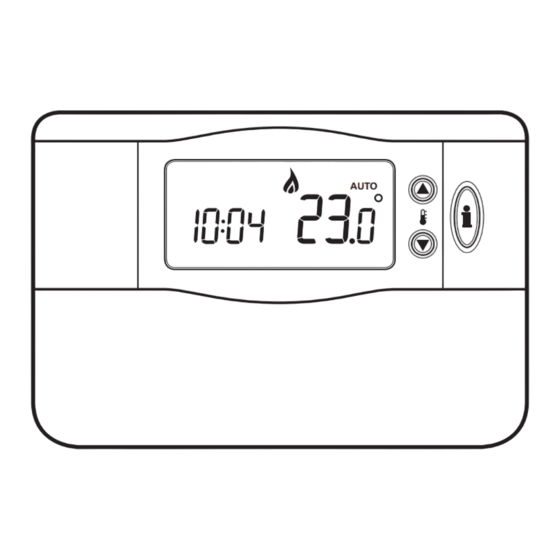

Programmable Room Thermostat
The EHE0200153 & EHE0200154 are modern
programmable room thermostats. To improve the ease of
use, these products include a large LCD display to assist
customers during daily use.
This product has been designed with your environment
in mind!
Please respect this by disposing of all packaging,
used parts and eventually the product itself in an
environmentally friendly manner.
Please follow the illustrations below to install the thermostat correctly.
1. Find a suitable location for mounting
3. Mount the backplate to wall
2. Remove from packaging
4. Connect the wiring correctly
=
M3.5
=
N
o
6
Mon
Tue
Wed
Thu
Fri
Sat
Sun
OFFMANAUTO
1.0-2.5mm²
6mm max.
