Installation Guide
340022
(EHE0200322)

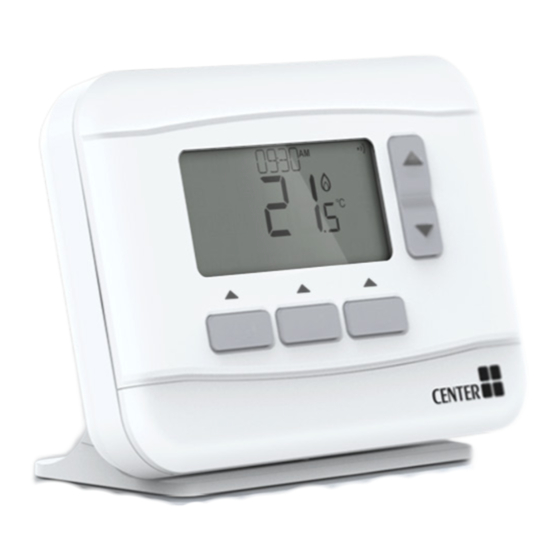

RF Wireless 7 Day Programmable Thermostat
IMPORTANT: Please read these instructions fully prior to use as
they contain information that will help get the best from your
wireless thermostat, ensuring it is operating correctly and safely.
If during the installation or set up you experience any issues
please call 0344 292 7060 for assistance.
Must be installed by a competent person. To ensure your
safety make sure the mains power is switched OFF before
accessing wiring.
To prevent a short circuit from a loose wire:
• Multi-core cables: Only remove enough outer insulation
to allow secure fixing of the cores into the terminal block.
• Single core cables: Secure them together with a cable tie
as close as possible to the terminal block.
The Thermostat and Receiver Box within this pack are
Pre-bound
Install the Receiver Box
0-30cm
>30cm
Wiring
On/off boiler (230V)
Combi boiler
Receiver Box
5(3)A
Permanent Live
not required
Basic Boiler
1
4
1
2
2-Port Zone Valve
Receiver Box
5(3)A
T1
T2
Combi-
Boiler
Contents
Thermostat
Receiver Box
Table Stand
2
a.
= M3.5
= N°6
5
ON
Receiver Box
5(3)A
V4043
Zone Valve
Wall Mount
Accessories
2 x AA LR6
3
1.5-2.5mm²
6mm max.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Center 340022
Summary of Contents for Center 340022
- Page 1 Installation Guide 340022 (EHE0200322) RF Wireless 7 Day Programmable Thermostat IMPORTANT: Please read these instructions fully prior to use as they contain information that will help get the best from your wireless thermostat, ensuring it is operating correctly and safely.
- Page 2 Install the Thermostat 1.2-1.5m The Thermostat and Receiver Box in this pack are pre-bound. Parameters 21.0 1:la Description Settings Min. On Time 1- 5min Lower Limit 5 - 21 °C Upper Limit 21 - 35 °C Fail Safe 0 = Disabled 1 = Enabled 10BL Backlight...
- Page 3 Table Stand and Wall Mount Table Stand Wall Mount = M3.5 = N°6 Wireless Receiver Box The Wireless Thermostat communicates wirelessly to the Receiver Box which is wired to the boiler. If the Thermostat loses wireless communication or becomes faulty, the boiler can be switched on or off manually using the button on the Receiver Box.
- Page 4 Binding / Rebinding The binding operation described below is required if: • Any of the system components (Wireless Thermostat or Receiver Box) are replaced. • The Receiver Box has incorrect or no binding data stored (e.g. when pre-bound system pack components have been mismatched).
