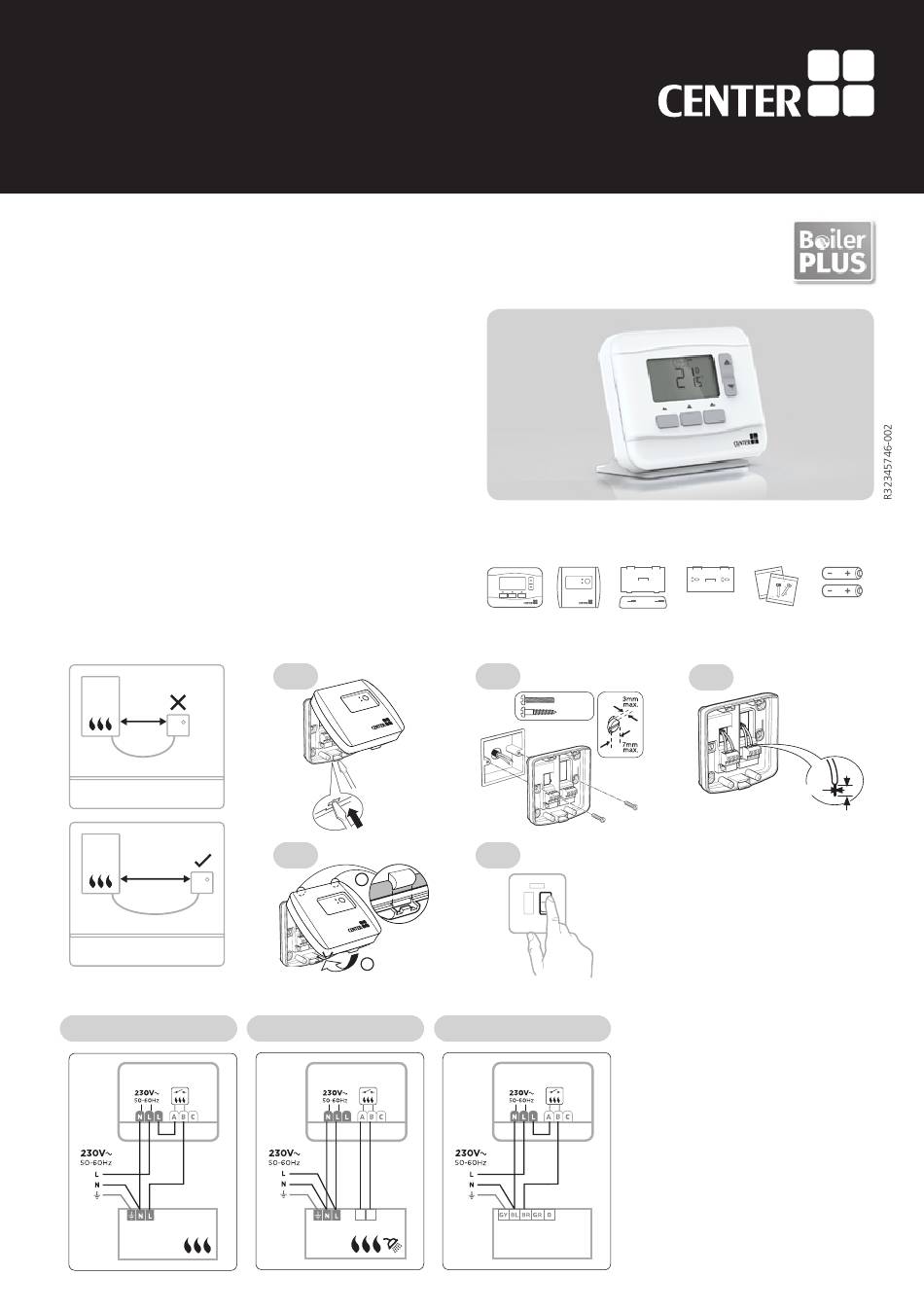

Center 340017 Installation Manual

Installation Guide
340017
(EHE0200373)
RF Wireless 7 Day Programmable Thermostat
IMPORTANT: Please read these instructions fully prior to use as
they contain information that will help get the best from your
wireless thermostat, ensuring it is operating correctly and safely.
If during the installation or set up you experience any issues
please call 0344 292 7060 for assistance.
Must be installed by a competent person. To ensure your
safety make sure the mains power is switched OFF before
accessing wiring.
To prevent a short circuit from a loose wire:
• Multi-core cables: Only remove enough outer insulation
to allow secure fixing of the cores into the terminal block.
• Single core cables: Secure them together with a cable tie
as close as possible to the terminal block.
The Thermostat and Receiver Box within this pack are
Pre-bound
Install the Receiver Box
0-30cm
>30cm
Wiring
On/off boiler (230V)
Receiver Box
5(3)A
Permanent Live
not required
Basic Boiler
1
4
1
2
Combi boiler
Receiver Box
5(3)A
T1 T2
Combi-
Boiler
Contents
Thermostat Receiver Box Table Stand
2
a. = M3.5
= N°6
5
ON
2-Port Zone Valve
Receiver Box
5(3)A
V4043
Zone Valve
Wall Mount Accessories 2 x AA LR6
3
1.5-2.5mm²
6mm max.
