Connecting Your Device - Modecom MC-4220 User Manual

Label
LINE
RESET
LAN 4/3/2/1
ANETENNA
POWER
ON/OFF
SWITCH
WLAN
WPS

Connecting your device

This chapter provides basic instructions for connecting the Wireless ADSL2+
Router to a computer or LAN and to the Internet.
In addition to configuring the device, you need to configure the Internet properties
of your computer(s). For more details, see the following sections:
Function
Connects the device to a telephone port in the wall of your home/
office for DSL communication
Pressing this button restores the factory default configuration on
your device
Connects the device via Ethernet to up to four PCs on your LAN
ANETENNA
Connects to the supplied power cable
Power on/off the device
Press this button for 5 seconds to Disable or Enable Wireless
LAN.
Press this button for 3 seconds to Enable WPS function.
802.11n WLAN ADSL2+ Router

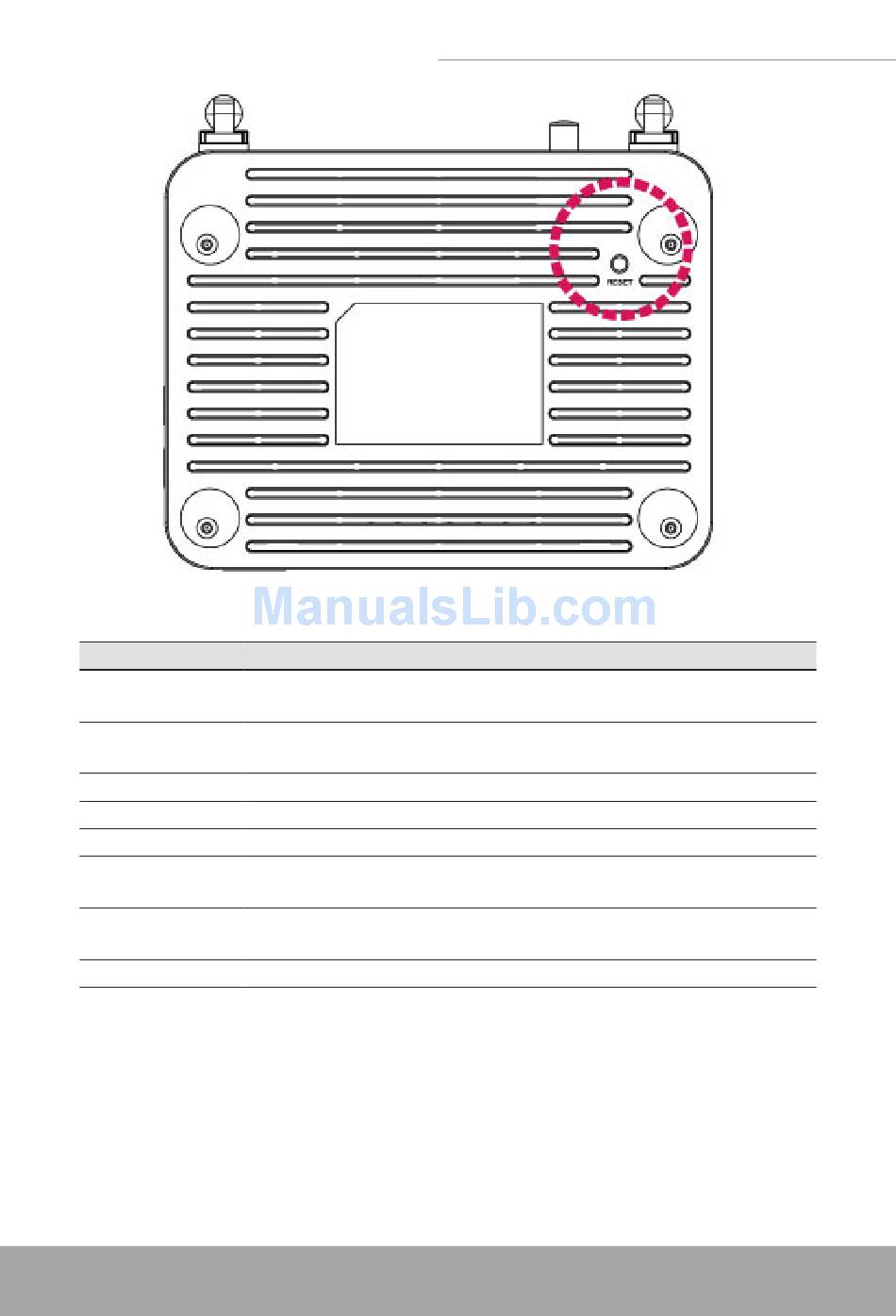

Figure 1: Bottom Side for Reset button
