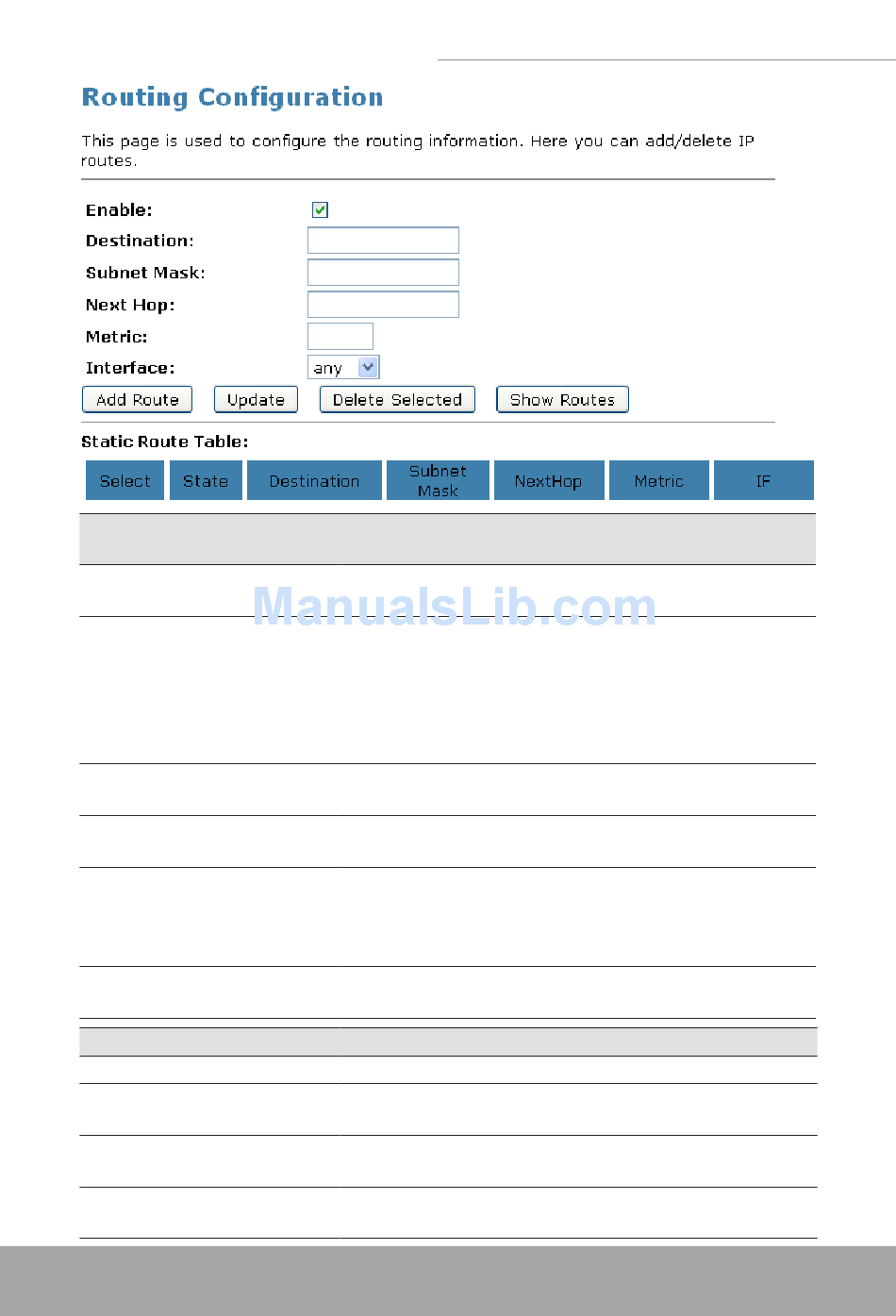

Fields on the first setting
block
Enable
Destination
Subnet Mask
Next Hop
Metric
Interface
Function buttons
Add Route
Update
Delete Selected
Show Routes
802.11n WLAN ADSL2+ Router
Description
Check to enable the selected route or route to be
added.
The network IP address of the subnet. The destination
can be specified as the IP address of a subnet or a
specific host in the subnet. It can also be specified as
all zeros to indicate that this route should be used for
all destinations for which no other route is defined (this
is the route that creates the default gateway).
The network mask of the destination subnet. The
default gateway uses a mask of 0.0.0.0.
The IP address of the next hop through which traffic
will flow towards the destination subnet.
Defines the number of hops between network nodes
that data packets travel. The default value is 0, which
means that the subnet is directly one hop away on the
local LAN network.
The WAN interface to which a static routing subnet is
to be applied.
Description
Add a user-defined destination route.
Update the selected destination route on the Static
Route Table.
Delete a selected destination route on the Static
Route Table.
Click this button to view the DSL device's routing table.
The IP Route Table displays, as shown in Figure.
