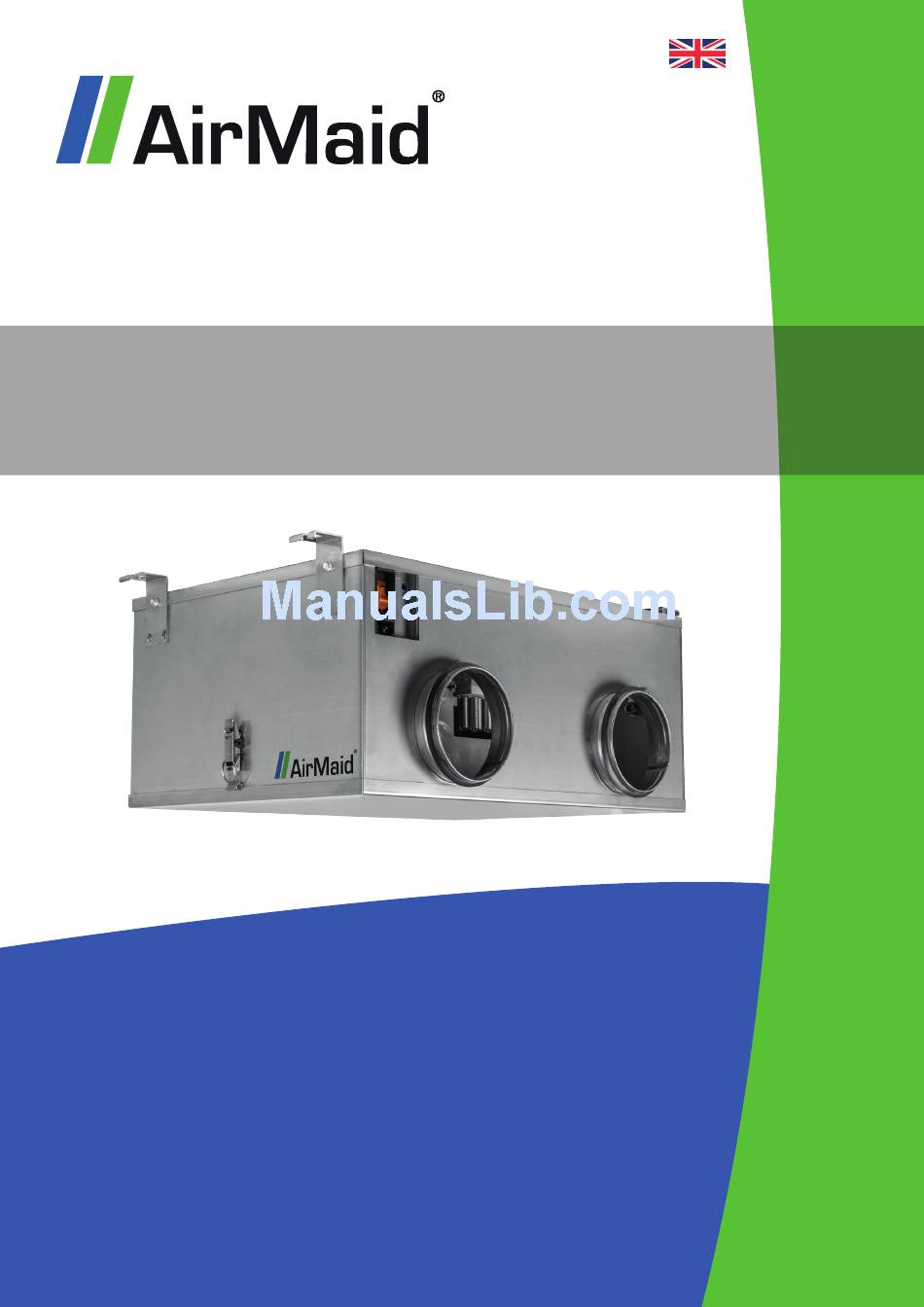

- Page 1 20 000 V Installation and service guide for AirMaid® V ozone cleaning system ® A i d o z o n e c l e A n i n g s y s t e M n n o v A t i v e r e A t M e n t...
-
Page 2: Table Of Contents
A new product is warranted to be free from defects and workmanship for a period of 2 years. If the product regis- tration form is submitted to Interzon within ten (10 days) from the completion of the installation, the guarantee will commence on this date. -
Page 3: System Overview
2 SYSTEM OVERVIEW You should carefully study the example installations below. Select the type of installation that works best for you and that complies with all national standards and regulations. If a central air supply cannot be used, a filter box EU3 class or higher is required;... -
Page 4: Installation Guidelines
3 INSTALLATION GUIDELINES Prepare two circular holes in the kitchen duct 6 7 or in the kitchen hood 8 . The diameter of the holes depends on the diameter of the pipe you select. The diameter of the pipe should be between Ø 80 and 125 mm. Install the ozone generator. - Page 5 4 ELECRICAL CONNECTION AND SETTINGS ASSEMBLY AND ELECTRICAL INSTALLATION The installation must be performed by an authorised electrician and follow national standards and regulations.The in- terlock device displayed on the diagram below is mandatory. A Typical example of the safety interlock would be to shut down the main power to the generator when the exhaust fan is shutting down.
- Page 6 FIRST START Once you have adjusted and configured the required airflow and under-pressure, you can then apply power to the generator. The first time the Alarm panel is started the time and date must be configured. CONFIGURING THE AIRMAID® ALARM PANEL ...
- Page 7 SETTINGS OPTIONS (*values that should be set at time of installation) Text displayed Description of the menu option * Set time: Set the time. * Set date: Set the date. Reset Active Alarm: Reset an active alarm status and restart the functional test. View event log: View a list of historic events, including alarms and recalibration.
-
Page 8: System Test
5 SYSTEM TEST AIRFLOW AND PRESSURE Measure the airflow through the ozone generator and note the value here __________ Measure the pressure inside the ozone generator and note the value here __________ The values above must be entered in the supplied product registration form. The specified airflow must be 30±10 l/s and the specified pressure must be less than -20 Pa (max -10 kPa). -
Page 9: Service And Maintenance
6 SERVICE AND MAINTENANCE The ozone cells inside the ozone generator must be checked and if necessary cleaned at least once a year according to the instructions below. If a separate air filter is used for the inlet air, make sure that this filter is changed at least one time per year. -
Page 10: Technical Specification
7 TECHNICAL SPECIFICATIONS Designed by Checked by Approved by - date Date Material 2012-12-04 Mikael Scale Project AirMaid® Ozone Capacity (mg/t) Output Pressure drop at 70 l/s Voltage Weight AM 20000V monterings Edition anv manual 1 (12-12-04) 20000V 20000 400W 130pa 230V/50Hz... -
Page 11: Airmaid® Product Registration
8 AIRMAID® PRODUCT REGISTRATION In order to receive the 2-year warranty from the installation date, you have to submit the product registration form to Interzon within ten (10) days. The easiest way to do this is online at www.interzon.com. INSTALLATION/SERVICE COMPANY... - Page 12 Reproduction, modification or translation without a prior written consent is forbidden with the exception of what is permitted by the Act on Copyright. Original instructions © 2012 Copyright Interzon AB Edition 2, 05/2013 Distributor: Manufacturer: Interzon AB Phono: +46 8 544 444 30 Propellervägen 4A...
