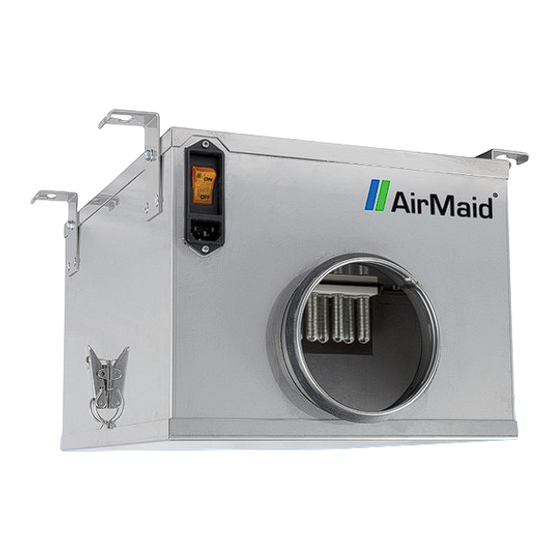

AirMaid 10 000 V Installation And Service Manual
V ozone cleaning system
Hide thumbs
Also See for 10 000 V:
- Installation and service manual (20 pages) ,
- Installation and service manual (20 pages)
Related Manuals for AirMaid 10 000 V
Summary of Contents for AirMaid 10 000 V
- Page 1 10 000 V 5 000 V 2 000 V Installation and service guide for AirMaid® V ozone cleaning system ® A i d o z o n e c l e A n i n g s y s t e M...
-
Page 2: Table Of Contents
Check that the shipment consists of the components below and that there are no visible damages. Any discrepancy must always be reported to the distributor or manufacturer. Read through the complete guide before starting the installation. 1 x AirMaid® Ozone Generator 1 x AirMaid® Alarm Panel... -
Page 3: System Overview
If central ventilation (inlet) 1 cannot be used, use filtered (EU3) fresh outdoor air less than 40°C. Do newer use just indoor air for the generator. AirMaid® is very effective in reducing odours provided that the reaction time between the ozone and the exhaust air in the kitchen exhaust duct is at least 2 seconds. -
Page 4: Installation Guidelines
Make sure that you have selected the correct ozone generator. General sizing would be: Typical sizing for McDonald’s AirMaid® 2000 V: Exhaust-airflow max. 1000 m /h (300 l/s) AirMaid® 2000 V: For each fryer AirMaid® 5000 V: Exhaust-airflow max. 2500 m /h (700 l/s) AirMaid®... - Page 5 MAX 6A Remove the four screws that fasten the AirMaid® alarm panel to it’s base. Fasten the base to the wall using devices suitable for the wall material. In commercial kitchens place the alarm panel where it will be visable to the staff but not to customers.
- Page 6 Press to display run and alarm time. AirMaid® Not Running: The RED lamp is flashing. An error has occurred. Please see the troubleshooting guide under section ”5 SySTEM TEST”. Inspect/Clean: Both the RED and the GREEN lamps are flashing. Contact the service company for a routine inspection and cleaning of the generator according to the instructions found in this manual.
- Page 7 This menu option must be used after the generator has been repaired and electronic components have been replaced. Do not recalibrate at any other time. EXIT MENU: Leave the settings menu. SETTINGS MENU FLOW DIAGRAM AirMaid 5 sec. RUNNING ...
-
Page 8: System Test
The specified airflow must be 30±10 l/s and the specified pressure must be less than -20 Pa (max -10 kPa). Usually the airflow is measured over the damper while the pressure can be measured from the pressure checkpoint on the long side of the ozone generator. AirMaid® Ozone Unit Minimum 1m Clean Air 30 +/- 10 l/s (Target: 35 l/s) -
Page 9: Service And Maintenance
Open the service hatch on the bottom of the ozone generator. Make sure that the glass electrodes of the ozone cells are not damaged or cracked. In AirMaid® 10000 V there are two ozone cells whereas there is only one ozone cell in AirMaid® 2000 V and 5000 V. -
Page 10: Technical Specification
7 TECHNICAL SPECIFICATION AirMaid® Ozone Capacity (mg/t) Output Pressure drop at 30 l/s Voltage Weight 2000 V 2000 100 W 100 Pa 230V/50 Hz 10 kg 5000 V 5000 100 W 100 Pa 230V/50 Hz 10 kg 10000 V 10000... -
Page 11: Airmaid® Warranty Application
8 AIRMAID® WARRANTY APPLICATION THE WARRANTY FORM MUST BE SENT TO INTERZON TO VALIDATE THE 2-YEAR WARRANTY! This can be done online at www.interzon.com. INSTALLATION/SERVICE COMPANY Company Name: Installed by: Telephone E-mail: PLACE OF INSTALLATION Name: Address: Town: Postal code:... - Page 12 Reproduction, modification or translation without a prior written consent is forbidden with the exception of what is permitted by the Act on Copyright. Original Instructions Copyright Information © 2012 Copyright Interzon AB Edition 11, 05/2012 Distributor: Manufacturer: Interzon AB Tel: +46 8 544 444 30 Propellervägen 4A Fax:...
