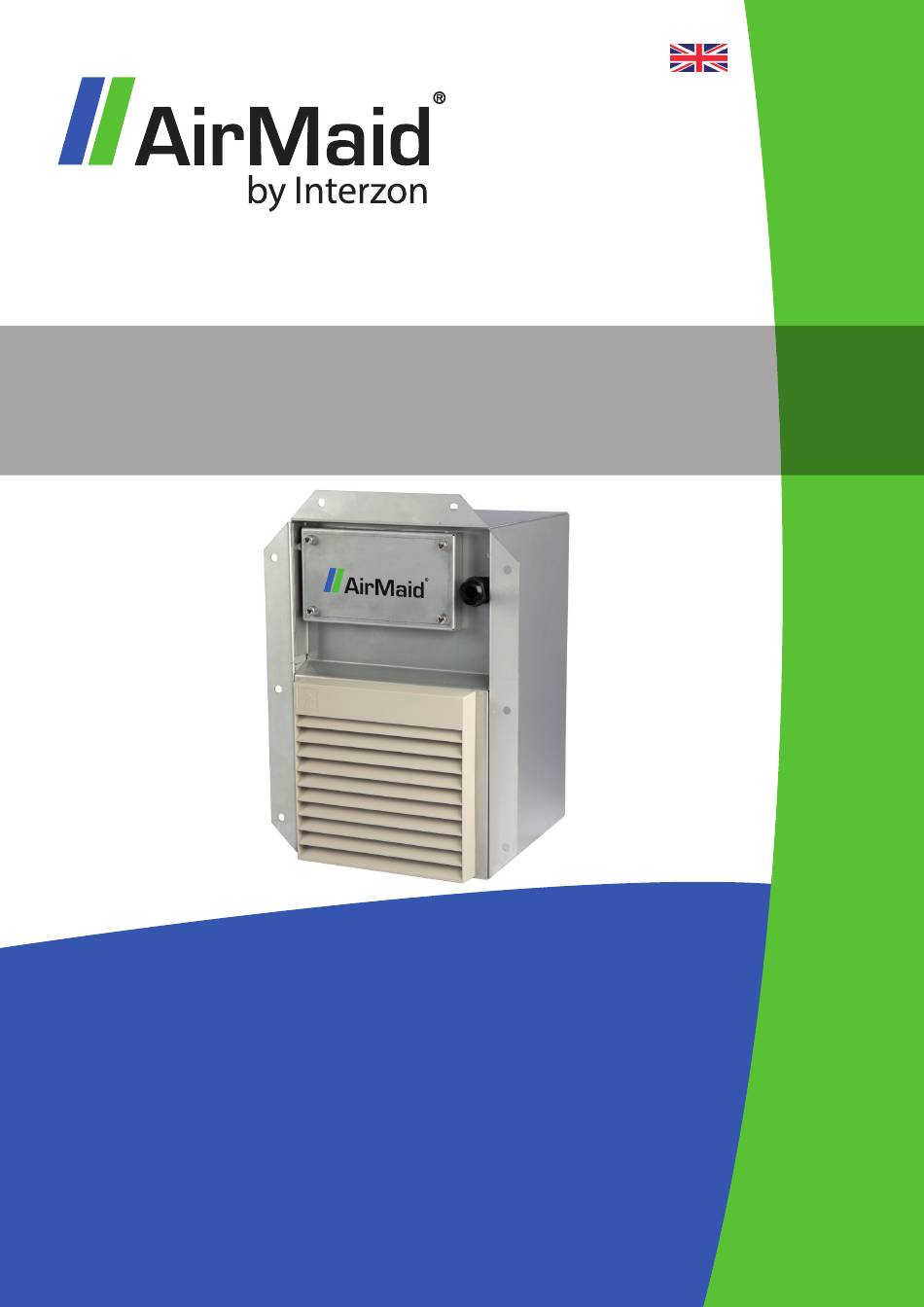

- Page 1 500 C AirMaid® C Operating Instructions ® A I D O Z O N E C L E A N I N G S Y S T E M N N O V A T I V E R E A T M E N T...
- Page 3 This manual describes a typical installation of an AirMaid® 500 C ozone generator. The installation can vary depending on local rules and regulations for building materials, ventilation systems or building/ room design.
- Page 4 PRODUCT WARRANTY LIMITED WARRANTY FOR INTERZON’S EQUIPMENT This guarantee is subject to the following conditions. A new product is guaranteed to be free from damage and/or workmanship fault for a period of 3 years from the original purchase date. The warranty of a new product covers the repair or replacement of the damaged part and shipping the product back to the customer.
- Page 5 10xM6 bolts from the outside. AirMaid® C By default, the generator is delivered with a 5m cable without plug. A qualified electrician should connect the cable to a 2-pole safety switch.
- Page 6 3. SERVICE AND MAINTENANCE Under normal conditions the air fi lter should be changed at least one time per year. If the incoming air is very dirty, the fi lter should be replaced more often. 1. Turn off the safety switch and remove the screws, as shown on the left.
- Page 7 Dimensions Electrical data Fan capacity Materials WxLxD: 182x293x220mm Voltage: 230V / 50-60 Hz AirMaid 500 C 0-500 mg/h 160m³/h (ideal) AISI 316 Weight: 5,5 kg Power: 55W The ozone unit is supplied with overheating protection, which protects the generator from overheat- ing.
- Page 8 Reproduction, revision or translation without prior written permission is prohibited, except as permitted under copyright laws. Copyright © 2018 Copyright Interzon AB Edition 3, 01/2018 36077 Reseller Manufacturer: Interzon AB Tel: +46 8 544 444 30 Propellervägen 4A Fax: +46 8 544 444 39 SE-183 62 Täby, Stockholm Email: info@interzon.com Sweden...
