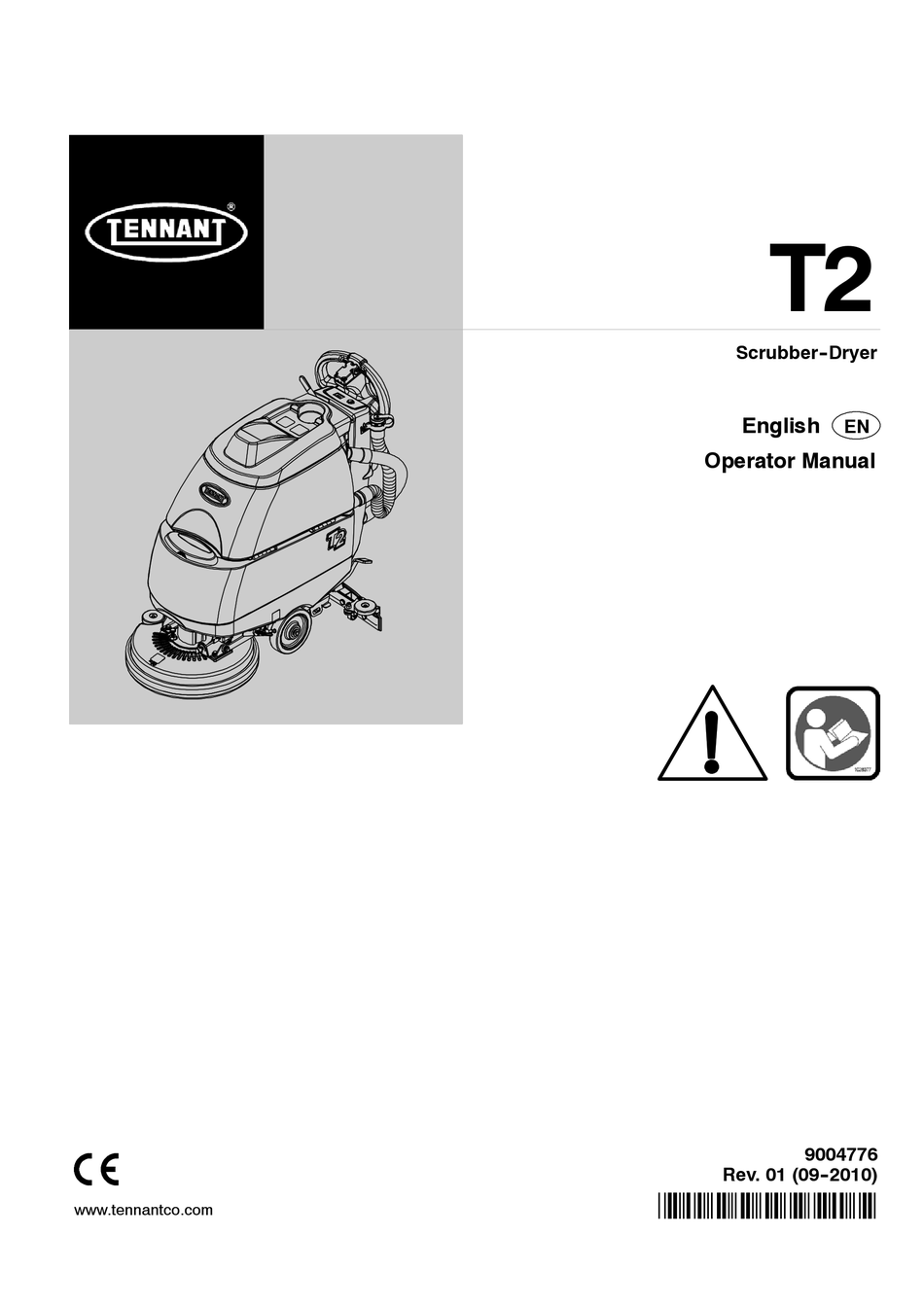

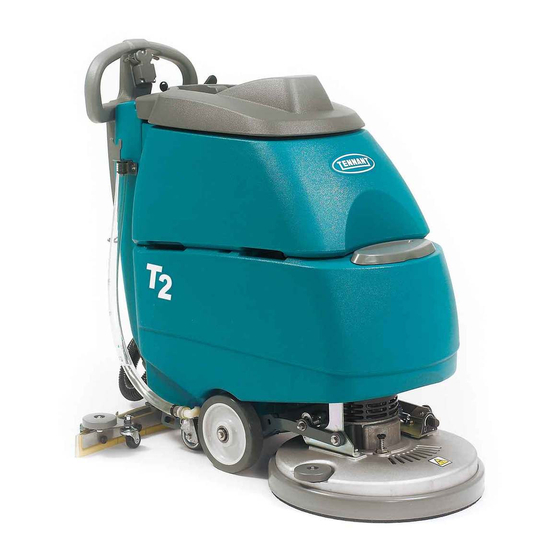

  • Page 1 Scrubber- -Dryer English Operator Manual 9004776 Rev. 01 (09- - 2010) *9004776* www.tennantco.com Home Find... Go To..

  • Page 2: Table Of Contents

    P.O. Box 6 5400 AA Uden- -The Netherlands europe@tennantco.com www.tennantco.com Specifications and parts are subject to change without notice. Original instructions, copyright E2008, 2010 Tennant Company. All rights reserved. Printed in the Netherlands. Tennant T2 (09- -10) Home Find... Go To..

  • Page 3: Safety Precautions

    1. Do not operate machine: truck or trailer. In an area where flammable liquids/vapors Put scrub head in the lowered position. or combustible dusts are present. Set parking brake if equipped. Unless trained and authorized. Tennant T2 (07- -08) Home Find... Go To..

  • Page 4: Safety Labels

    Located at bottom side of recovery tank. Power Before Working On Machine. WARNING: Fire Or Explosion Hazard. Batteries Emit Hydrogen Gas. Keep Sparks And Open Flame Away. Keep Battery Compartment Open When Charging. Tennant T2 (07- -08) Home Find... Go To..

  • Page 5: Machine Components

    14. On--board Battery Charger (optional) 28. Battery Compartment MACHINE OPERATION SYMBOLS 2% (1°) Maximum Battery Discharge Main Power Grade Level Indicator I/O Key Switch Solution Flow Brush Motor Parking Brake Control Circuit Breaker (option) Tennant T2 (07- -08) Home Find... Go To..

  • Page 6: Machine Installation

    1. Park the machine on a level surface and remove the key. 2. Carefully install the batteries into the battery compartment as shown (Figure 1). 3. Connect the battery cables as shown (Figure 1). Tennant T2 (07- -08) Home Find... Go To..

  • Page 7: How The Machine Works

    Used for stripping of floor finish to prepare the floor for recoating. Heavy Duty Stripping Pad (Black) - - Used for aggressive stripping of heavy finishes/sealers, or very heavy duty scrubbing. FIG. 4 Tennant T2 (07- -08) Home Find... Go To..
  • Page 8 (Figure 7). FIG. 9 4. Turn the brush motor hub until the slot with the spring clip is visible through the scrub head window (Figure 10). FIG. 7 Spring Clip FIG. 10 Tennant T2 (07- -08) Home Find... Go To..
  • Page 9 ADJUSTING CONTROL CONSOLE HEIGHT Loosen the control console height adjustment knob and lift or lower the console to a comfortable operating height. Tighten knob to lock in position (Figure 15). FIG. 13 FIG. 15 Tennant T2 (07- -08) Home Find... Go To..

  • Page 10: Machine Operation

    17). The vacuum motor will automatically turn on. FIG. 20 6. To stop scrubbing, release the triggers, raise the scrub head and the squeegee and turn the key to the off position. FIG. 17 Tennant T2 (07- -08) Home Find... Go To..
  • Page 11 (Figure 21). If the red light appears, the scrubbing function will shut off automatically. This protects the batteries from total discharge. Recharge the batteries immediately. FIG. 23 Tennant T2 (07- -08) Home Find... Go To..

  • Page 12: Draining Tanks

    NOTE: When using a bucket to drain the machine, do not use the same bucket to fill the solution tank. 2. Open the recovery tank cover and rinse out the tank (Figure 25). FIG. 27 FIG. 25 Tennant T2 (07- -08) Home Find... Go To..

  • Page 13: Charging Batteries

    1. Transport the machine to a well--ventilated area. 2. Park the machine on a flat, dry surface and turn the key off. 3. If charging wet (lead acid) batteries check the fluid level before charging (See BATTERY MAINTENANCE). Tennant T2 (07- -08) Home Find... Go To..
  • Page 14 Output short circuit -- damaged output cable Contact Service Center Internal short circuit -- blown output fuse Replace battery charger Red Light Flashing Safety timer exceeded maximum charging Repeat charging cycle. If error repeats, time replace batteries Tennant T2 (07- -08) Home Find... Go To..

  • Page 15: Machine Maintenance

    When machine is not in use, raise squeegee assembly off floor or hang on storage bracket. FIG. 35 3. Remove and clean the float shut--off screen located in the recovery tank (Figure 36). FIG. 39 FIG. 36 Tennant T2 (07- -08) Home Find... Go To..
  • Page 16 2. Lead Acid Batteries: Clean the battery tops to prevent corrosion (See BATTERY MAINTENANCE). 3. Check for loose battery cable connections. 4. Inspect and clean the recovery tank cover seal (Figure 45). Replace if damaged. FIG. 42 FIG. 45 Tennant T2 (07- -08) Home Find... Go To..
  • Page 17 3- -slot edge on grouted tile 6. Check the machine for loose nuts and bolts. floors. 7. Check the machine for leaks. MOTOR MAINTENANCE Contact an Authorized Tennant Service Center for carbon brush replacement. Carbon Brush Replacement Hours Vacuum Motor Brush Motor WARNING: Electrical Hazard.

  • Page 18: Transporting Machine

    4. Open the recovery tank cover to promote air circulation. ATTENTION: Do not expose machine to rain, store indoors. 5. If storing machine in freezing temperatures, follow the FREEZE PROTECTION instructions below. Tennant T2 (07- -08) Home Find... Go To..

  • Page 19: Troubleshooting

    Low battery charge Recharge batteries. Short run time Batteries not fully charged Fully recharge batteries Defective batteries Replace battery Service batteries See BATTERY MAINTENANCE Faulty battery charger Repair or replace battery charger Tennant T2 (07- -08) Home Find... Go To..

  • Page 20: Machine Specifications

    2% (1°) * Measured A- -weighted emission sound pressure level, per ISO 11201, in accordance with ISO 4871. Uncertainty value is 2 decibels. MACHINE DIMENSIONS 486mm 1093 mm 1128 mm 763 mm Tennant T2 (07- -08) Home Find... Go To..
