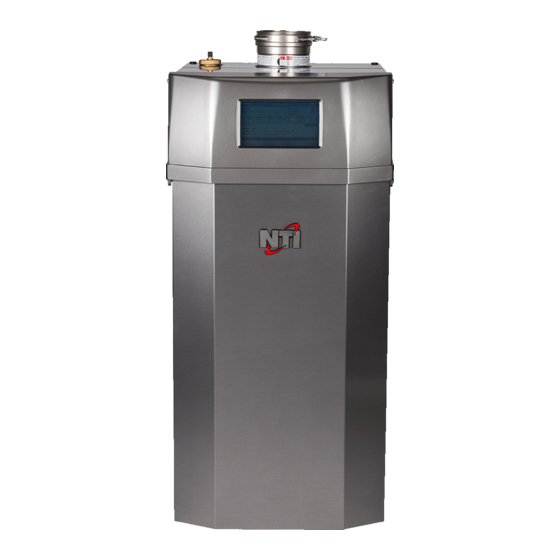

NTI Lx150-400 Installation And Operation Instructions Manual

Trinity lx series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Trinity Lx
Model Numbers: Lx150-400
Version Date: 2010-01-01
INSTALLATION AND OPERATION INSTRUCTIONS FOR
TRINITY LX SERIES
This manual to be read in conjunction with the following documents which
provide specific instructions for controller setup, plumbing and wiring:
Appendix A - Controller and Touchscreen Display Instructions
Appendix B - Boiler Applications: Plumbing and Wiring
Appendix C - Water Heater Applications: Plumbing and Wiring

TABLE OF CONTENTS

1.0
INTRODUCTION ................................................................................................................ 3
2.0
SPECIFICATIONS .............................................................................................................. 6
3.0
APPLIANCE LOCATION................................................................................................... 7
4.0
GENERAL VENTING....................................................................................................... 11
5.0
VENT/AIR-INTAKE TERMINATION CLEARANCES.................................................. 20
6.0
CONDENSATE DRAIN .................................................................................................... 24
7.0
INSTALLING GAS PIPING.............................................................................................. 25
8.0
LIGHTING THE APPLIANCE ......................................................................................... 27
9.0
GAS VALVE AND BURNER SET-UP ............................................................................ 29
10.0 WIRING SCHEMATICS ................................................................................................... 34
11.0 INSTALLATION CHECKLIST ........................................................................................ 36
12.0 ANNUAL MAINTENANCE AND INSPECTION ........................................................... 37
13.0 PARTS LIST ...................................................................................................................... 39
14.0 TROUBLESHOOTING ..................................................................................................... 45
HAZARD SYMBOLS AND DEFINITIONS
unit may result in property damage, serious injury to occupants, or possibly death.
Danger Sign: Indicates a hazardous situation which, if not avoided, will
result in serious injury or death.
Warning Sign: Indicates a hazardous situation which, if not avoided,
could result in serious injury or death.
Caution Sign plus Safety Alert Symbol: Indicates a hazardous situation
which, if not avoided, could result in minor or moderate injury.
Caution Sign without Safety Alert Symbol: Indicates a hazardous
situation which, if not avoided, could result in property damage.
Notice Sign: Indicates a hazardous situation which, if not avoided,
could result in property damage.
This Appliance must be installed by a licensed and trained Heating
Technician or the Warranty is Void. Failure to properly install this
NEW FEATURES
Second Central Heat Input
Internal Lead-Lag Control
System Sensor
Modulation Sensor Alternatives
Warm Weather Shutdown
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lx150-400 and is the answer not in the manual?

Questions and answers

Related Manuals for NTI Lx150-400

Summary of Contents for NTI Lx150-400

  • Page 1: Table Of Contents

    NEW FEATURES Trinity Lx Second Central Heat Input Internal Lead-Lag Control System Sensor Model Numbers: Lx150-400 Modulation Sensor Alternatives Version Date: 2010-01-01 Warm Weather Shutdown INSTALLATION AND OPERATION INSTRUCTIONS FOR TRINITY LX SERIES This manual to be read in conjunction with the following documents which...
