Trin & Stor
Model Numbers: S, S-SR, SL Series
Version Date: 2010-06-01
INDIRECT WATER HEATERS
INSTALLATION AND OPERATION INSTRUCTIONS
To be installed in conjunction with a NTI Boiler
TABLE OF CONTENTS
1.0
INTRODUCTION ................................................................................................................ 2
Trin & Stor Specifications.................................................................................................... 2
I.O.M. Checklists.................................................................................................................. 3
General Installation Requirements ....................................................................................... 4
Safe Temperatures for Potable Water................................................................................... 5
2.0
WATER HEATER PIPING ................................................................................................. 7
Domestic Side Piping ........................................................................................................... 7
Boiler System Piping............................................................................................................ 9
Solar System Piping.............................................................................................................. 9
3.0
FIELD WIRING ................................................................................................................. 14
TPI Thermostat Wiring....................................................................................................... 14
TPI and Boiler Controls...................................................................................................... 16
4.0
START UP AND CHECK OUT ........................................................................................ 18
5.0
ANNUAL MAINTENANCE AND INSPECTION ........................................................... 18
6.0
PARTS LIST ...................................................................................................................... 19
7.0
TROUBLESHOOTING ..................................................................................................... 19
HAZARD SYMBOLS AND DEFINITIONS
install this unit may result in property damage, serious injury to occupants, or possibly death.
SL Series
Danger Sign: Indicates a hazardous situation which, if not avoided, will
result in serious injury or death.
Warning Sign: Indicates a hazardous situation which, if not avoided,
could result in serious injury or death.
Caution Sign plus Safety Alert Symbol: Indicates a hazardous situation
which, if not avoided, could result in minor or moderate injury.
Caution Sign without Safety Alert Symbol: Indicates a hazardous
situation which, if not avoided, could result in property damage.
Notice Sign: Indicates a hazardous situation which, if not avoided,
could result in property damage.
This Indirect Water Heater must be installed by a licensed and trained
Heating Technician or the Warranty is Void. Failure to properly

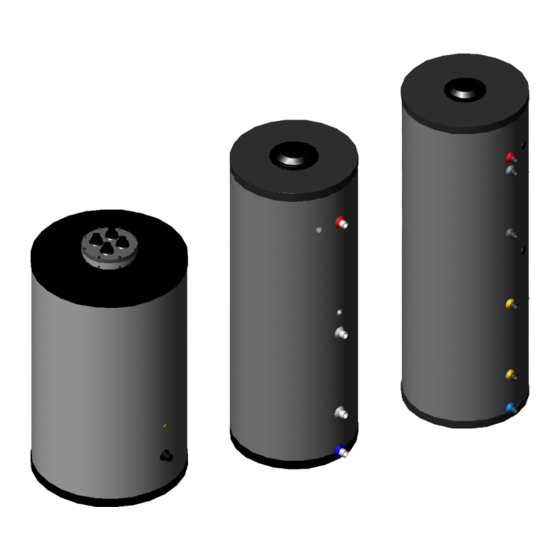

NEW PRODUCT LINE
Indirect Water Heaters
Stainless Steel
Stainless Steel Solar
Stone Lined
S-SR Series
S Series
Advertisement
Table of Contents
Related Manuals for NTI S Series
Summary of Contents for NTI S Series
-
Page 1: Table Of Contents
Stainless Steel Solar Stone Lined Version Date: 2010-06-01 INDIRECT WATER HEATERS INSTALLATION AND OPERATION INSTRUCTIONS To be installed in conjunction with a NTI Boiler TABLE OF CONTENTS INTRODUCTION ........................ 2 Trin & Stor Specifications....................2 I.O.M. Checklists........................3 General Installation Requirements ..................4 Safe Temperatures for Potable Water................... -
Page 2: Introduction
Series comes equipped with a Solar Domestic Hot Water backup via a second heat exchanger coil for boiler supply connections ("S-SR" models). The "S-SR" series can also be used with a single boiler as a normal indirect or with a second boiler for increased recovery rate. For the complete NTI Trin & Stor line, visit www.nythermal.com. -
Page 3: Checklists
Trin & Stor Indirect Water Heaters Installation and Operation Instructions I.O.M. Checklists The various Installation, Operation and Maintenance (IOM) Checklists contained in this manual are meant to be read in conjunction with the details, drawings and safety information to ensure a complete and proper installation. Pre-Installation Checklist Inspection and Preparation 1. -
Page 4: General Installation Requirements
Users Responsibility – This manufacturer anticipates the proper installation and care in use of the product. As with any hot water system, there is a risk of property damage and personal injury inherent in the use. NTI cannot supervise the installation and therefore makes it a specific condition for the warranty that the customer will supervise the installation and use of the product to be sure they are performed in accordance with the instructions and I.O.M. -
Page 5: Safe Temperatures For Potable Water
Trin & Stor Indirect Water Heaters Installation and Operation Instructions Safe Temperatures for Potable Water Two factors used to determine safe hot water temperatures are Legionella and scalding. Potable water needs to be stored at temperatures hot enough to limit the growth of Legionella, yet be cool enough to prevent scalding. Since both hazards present a potential risk to the user, they must be monitored and controlled. - Page 6 │ Trin & Stor Installation and Operation Instructions Indirect Water Heaters Legislation and Guidelines - At the time this document was written, standards and guidelines regulating the prevention of Legionella in the United States and Canada were mostly voluntary. The American Society of Heating, Refrigerating and Air-Conditioning Engineers, Inc. (ASHRAE) is currently in the process of converting its guideline entitled "Minimizing the Risk of Legionellosis Associated with Building Water Systems"...
-
Page 7: Water Heater Piping
Domestic Side Piping The various series of NTI Trin & Stor indirect water heaters are dimensioned and connection ports marked in Figures 2-1 and 2-2. Dimensioned drawings are to be read in conjunction with Table 2-3 and 2-4 which identify the connection type and port size and illustrates typical domestic water piping for a single indirect water heater. - Page 8 Indirect Water Heaters Indirect Water Heater - NTI Trin & Stor Indirect Water Heaters are equipped with a single-walled internal heat exchanger coil. To maintain the efficient and reliable operation of the heat exchanger, and to avoid heat exchanger failure, it is critical to ensure the rules and guidelines in this section are followed.
-
Page 9: Boiler System Piping
Boiler System Piping The NTI Trin & Stor line of high efficiency Indirect Water Heaters are intended to be heated by an external hot water boiler where hot water supplied from the boiler is connected to ports 4 and 5 on the indirect tank, and circulated through an internal heat exchanger coil in the tank. - Page 10 │ Trin & Stor Installation and Operation Instructions Indirect Water Heaters Figure 2-1 Indirect Water Heater Dimensions Table 2-3 Indirect Water Heater Dimensions Dimensions (inches) Model S120 S80SR S120SR SL35 SL50 SL70...
- Page 11 Trin & Stor Indirect Water Heaters Installation and Operation Instructions Figure 2-2 Solar Indirect Water Heater Dimensions Installation Checklist Install domestic side piping as per National and local codes. Refer to Figures 2-3 and 2-4. 2. Do not over tighten brass threads on water supply connections.
- Page 12 │ Trin & Stor Installation and Operation Instructions Indirect Water Heaters Figure 2-3 Indirect Water Heaters Domestic Plumbing Schematic...
- Page 13 Trin & Stor Indirect Water Heaters Installation and Operation Instructions Figure 2-4 Solar Indirect Water Heaters Domestic Plumbing Schematic...
-
Page 14: Field Wiring
│ Trin & Stor Installation and Operation Instructions Indirect Water Heaters 3.0 FIELD WIRING Ensure all field wiring complies with this manual and is installed in accordance with the National Electrical Code ANSI/NFPA 70 or Canadian Electrical Code CSA C22.1, and any applicable local codes. TPI Thermostat Wiring 24VA Transformer (Hot, GND) - The TPI requires a 24VAC power supply to function. - Page 15 Trin & Stor Indirect Water Heaters Installation and Operation Instructions Figure 3-1 Top Performer Immersion (TPI) Features Dimensions 5.0"H x 2.6"W x 1.7"D Indicator Temperature Control voltage 24VAC Light Adjustment Maximum control power 0.6 W TT contact rating 125V, 10A Adjustment increment 1 Temperature set point range 110 F to 160...
-
Page 16: Tpi And Boiler Controls
I&O manual). See Figure 3-6. TPI connected to NTI Trinity LX Boiler - The LX provides DHW priority. To connect the TPI to an LX boiler, wire the TPI 24VAC input to LX contacts "COM" and "R"; connect TPI output contacts (Pump/TT) to LX DHW input terminals, "DHW"... - Page 17 Indirect Water Heaters Installation and Operation Instructions Figure 3-6 TPI wired to Boiler with DHW Input Figure 3-7 TPI wired to NTI Trinity LX Boiler Figure 3-8 TPI wired to Zone Valve Figure 3-9 TPI wired to DHW Priority Zone Controller...
-
Page 18: Start Up And Check Out
│ Trin & Stor Installation and Operation Instructions Indirect Water Heaters 4.0 START UP AND CHECK OUT Filling the Water Heater 1. Thoroughly flush the water heater so that three (3) times the tank’s volume has been drawn through it. 2. -
Page 19: Parts List
SL-70 Coil, 70 Gal Installers needing technical 84219 SL Series O-ring 6 1/4" ID for Coil assistance can contact NTI 84220 SL Series O-ring 6 3/4" ID for Coil directly at 1-800-688-2575. 7.0 TROUBLESHOOTING Locate the TPI indicator light at the top of the case as shown. Refer to Table 7-1 for TPI troubleshooting guide. - Page 20 NY Thermal Inc. 65 Drury Cove Road Saint John, NB E2H 2Z8 Canada Technical Assistance: 1-800-688-2575 Website: www.nythermal.com Fax: 1-506-432-1135...
