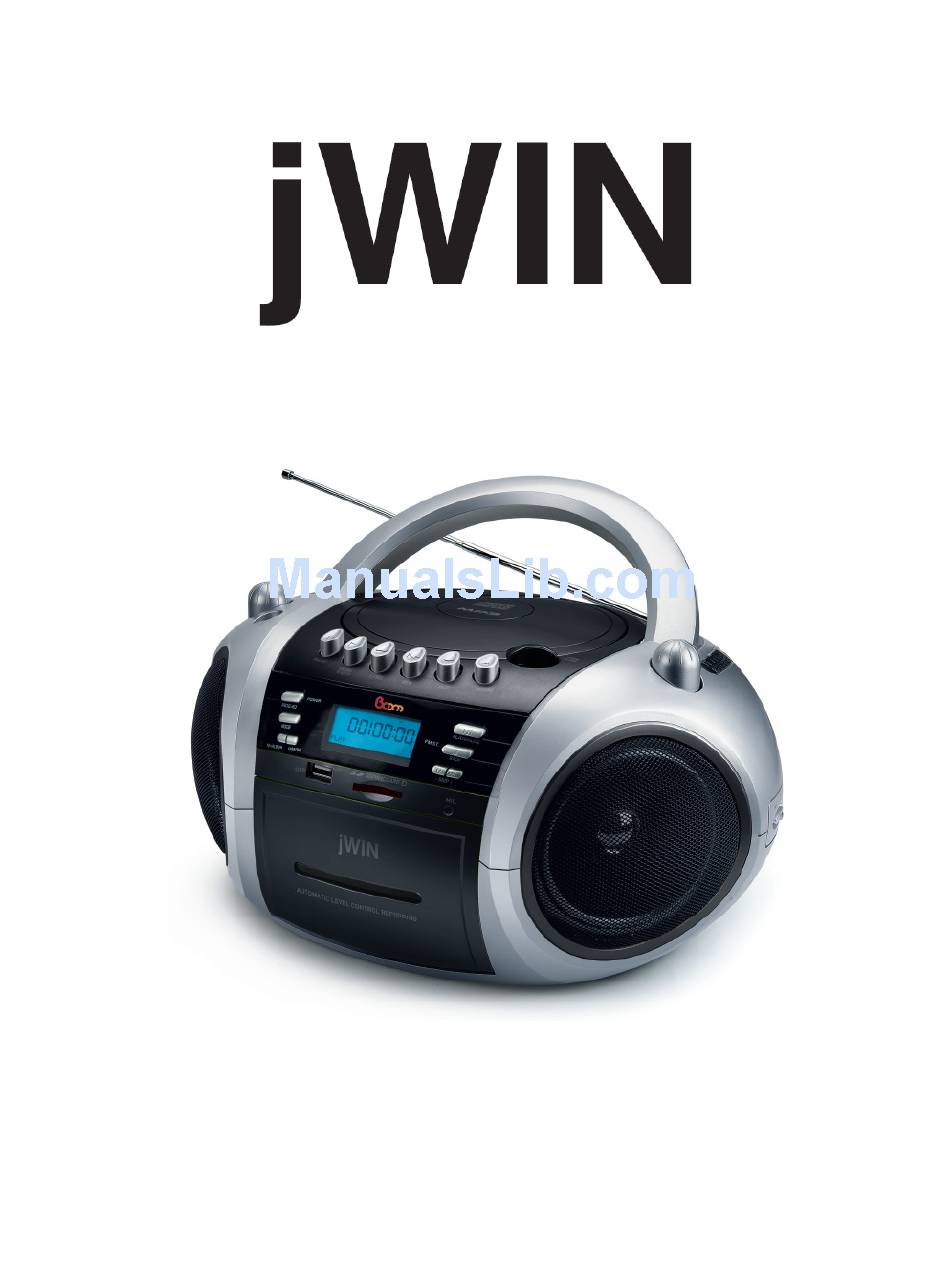

Page 1: Instruction Manual
Portable MP3 CD / CD Player with Cassette and USB / SD / MMC Slot Instruction Manual JX-CD573 Please read this manual carefully before operating and save it for future reference. Have a question? Please visit http://www.jWIN.com... -
Page 2: Important Safety Instructions
Portable MP3 CD Radio Cassette Recorder USER SAFETY GIUDE IMPORTANT SAFETY INSTRUCTIONS WARNING: To prevent fire or shock hazard, do not expose this appliance to rain or moisture. These markings are located on the bottom, side or back of the unit. CAUTION: To prevent the risk of electric shock, do not remove cover (or back). -
Page 3: Important Safety Precautions
Portable MP3 CD Radio Cassette Recorder USER SAFETY GIUDE INSTRUCTIONS ON ENVIRONMENT PROTECTION Do not dispose of this product in the usual household garbage at the end of its life cycle; bring it to a collection point for the recycling of electrical and electronic appliances. -
Page 4: Fcc Notice (Usa)
Portable MP3 CD Radio Cassette Recorder USER SAFETY GIUDE IMPORTANT SAFETY PRECAUTIONS – CONTINUED 14. OBJECT and LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the device’s openings. 15. CARTS AND STANDS - The appliance should be used only with a cart or stand that is recommended by the manufacturer. -
Page 5: Table Of Contents
Portable MP3 CD Radio Cassette Recorder TABLE OF CONTENTS Getting Started Introduction ……………………………………………………………………… Location of Controls (top, speaker, right, left) ………………………………. Location of Controls (Back Panel) …..……………………………………….. Location of Controls (Remote) ………………………………...……………… Connecting the Speakers ……………………………………………………… AC Operation …………………………………………………………………… Antennas ………………………………………………………………………… Listening with Stereo Headphones ……………………………………………... -
Page 6: Getting Started
Portable MP3 CD Radio Cassette Recorder GETTING STARTED Thank you for purchasing the JX-CD573. Unpack the unit and make sure to put aside all accessories so they will not be lost. We recommend that you retain the original carton and packaging materials for future use, should you transport or ship the unit in the future. -
Page 7: Location Of Controls (Top, Speaker, Right, Left)
Portable MP3 CD Radio Cassette Recorder V10M10_IM_EN_11152007 GETTING STARTED Location of Controls 1 8 9 10 11 12 13 14 15 16 17 18 19 20 21 7 - 6 - www.jWIN.com... -
Page 8: Battery Operation
Portable MP3 CD Radio Cassette Recorder GETTING STARTED Location of Controls-continued 4 3 2 1 8 1. VOLUME CONTROL 2. HEADPHONE JACK 3. HANDLE 4. FM ANTENNA 5. CD COVER 6. ANALOG RADIO FREQUENCY READER 7. TUNING KNOB 8. AUX JACK 9. -
Page 9: Listening To The Radio
Auxiliary (AUX) Mode Slide the FUNCTION SWITCH to the AUX position. Connect the earphone socket from the Auxiliary unit (e.g. MP3 player or MD player) into AUX-IN jack on the rear of this product via an Audio Line Cord (3.5mm plug on both ends;... -
Page 10: Audio Cd Playback
Portable MP3 CD Radio Cassette Recorder OPERATIONAL INSTRUCTIONS Audio CD Playback When the CD DOOR is closed and a CD is inside, the total number of the tracks in the disc show on the LCD DISPLAY and will enter Stop mode. The DISC indicator will always show on the LCD DISPLAY when the JX-CD483 is in CD mode. -
Page 11: Repeat Mode
Portable MP3 CD Radio Cassette Recorder OPERATIONAL INSTRUCTIONS REPEAT MODE Repeat 1: When the MODE BUTTON is pressed once, the REPEAT indicator show on the LCD DISPLAY. This single track of music will be repeated. Repeat All: When the MODE BUTTON is pressed twice, the REPEAT ALL indicator show on the LCD DISPLAY. - Page 12 Portable MP3 CD Radio Cassette Recorder OPERATIONAL INSTRUCTIONS Audio CD Playback-continued PROGRAM MODE-continued Press the CD PLAY/PAUSE BUTTON once to start the program playback and the CD play Indicator “ ” will light up. To check the program you have stored after complete programming, press the PROGRAM BUTTON once during CD stop mode, then press the CD SKIP/SEARCH...
-
Page 13: Lcd Display
Portable MP3 CD Radio Cassette Recorder OPERATIONAL INSTRUCTIONS MP3 CD Playback-continued PLAY/PAUSE MODE-continued Example: To select Album # 4, track # 3. STEP – 1: Press the FOLDER UP/DOWN (+/-) BUTTON to select the Album # 4. STEP – 2: Press the CD SKIP/SEARCH SKIP/SEARCH BUTTON to select the Track # 3 inside this Album # 4. -
Page 14: Random Play Mode
Portable MP3 CD Radio Cassette Recorder OPERATIONAL INSTRUCTIONS MP3 CD Playback-continued RANDOM PLAY MODE This feature allows the tracks on the disc to be played in a random order. During the CD Stop mode, press the MODE BUTTON four times, the RANDOM Indicator will show on the LCD DISPLAY and all music will be played in random order automatically. -
Page 15: Fm Stereo Indicator
Portable MP3 CD Radio Cassette Recorder OPERATIONAL INSTRUCTIONS MP3 CD Playback-continued PROGRAM MODE-continued To check the program you have stored after programming is complete, press the PROGRAM BUTTON once during the CD Stop mode. The LCD DISPLAY will show “ ”... -
Page 16: Cleaning The Lens
Portable MP3 CD Radio Cassette Recorder MAINTENANCE Notes on CDs Before playing, clean the CD with a cleaning cloth. Wipe the CD from the center out to the ends. Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs. -
Page 17: Troubleshooting Guide
Portable MP3 CD Radio Cassette Recorder TROUBLESHOOTING GUIDE When the instructions in this manual are followed, this unit should function properly. However, if any of the following difficulties occur and cannot be corrected by the user or if a problem arises that is not mentioned here, please contact jWIN Customer Service or a qualified service technician. -
Page 18: Specifications
Portable MP3 CD Radio Cassette Recorder SPECIFICATIONS • Audio Output Power RMS output at 10% THD: 1.2W x 2 • Inputs & Outputs 3.5mm Stereo Headphone jack 3.5mm AUX in jack • Power Sources AC 110V Battery: C x 8 (not included) •... - Page 19 TEL: 516-626-7188 FAX: 516-626-7105 website: www.jWIN.com © 2007 jWIN Electronics Corp. All rights reserved. No portion of this printed material or product enclosed herewith including design, shape and graphics, may be reproduced or transmitted in any form without prior written consent of jWIN Electronics Corp. by any means, electronic or mechanical, including photocopying, recording or use of an information storage and retrieval system.
