Summary of Contents for jWIN JX-43000D

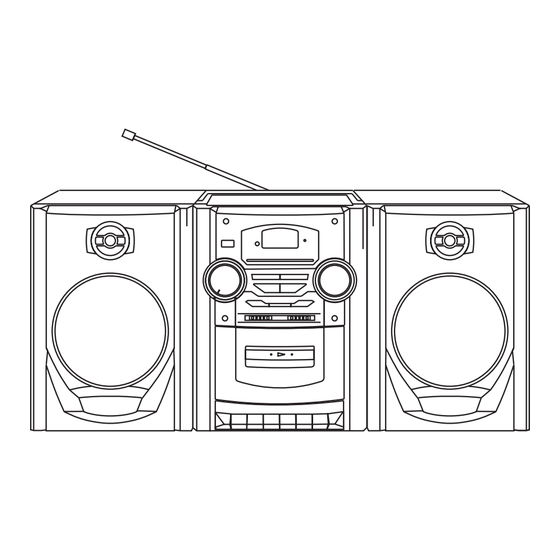

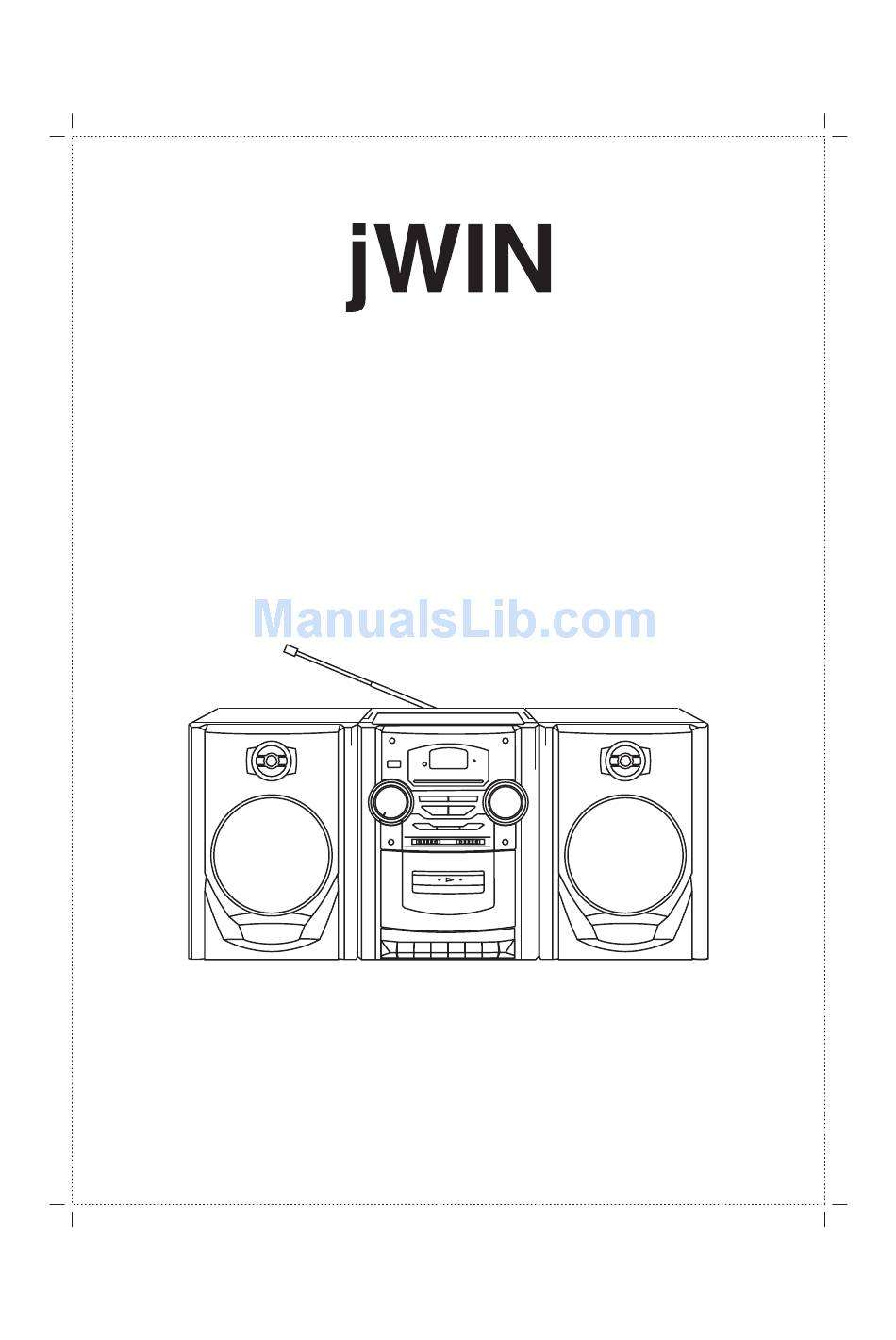

- Page 1 JX-CD 4300D MICRO COMPONENT SYSTEM INSTRUCTION MANUAL Web site: http://www.jwin com...
- Page 2 CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read Instructions - All the safety and operating instructions should be road before the product is operated Retain Instructions - The safety and operating Instructions should be retained for future reference. Heed Warnings - All warnings on the product and in the operating instructions should be adhered to. - Page 4 Outdoor Antenna Grounding - If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of...
- Page 5 VOLTAGE SELECTOR (For dual voltage model only!) FM MODE /BEAT CANCEL MONO VOLTAGE SELECTOR Fig.1 Fig.2...
- Page 6 Fig. 3a Fig. 3b Fig. 3c Fig.4...
- Page 7 Fig.5 Fig.6 Fig.7 Fig.8 Fig.9...
-
Page 8: Power Supply
Do not use where there are extremes of tem- perature (below 5 C or exceeding 35 C). Because of the CD player's extremely low noise and wide dynamic range, there might be a tendency to set the volume on the am- plifier unnecessarily high. -
Page 9: General Operation
Press the button to end disc play. When the last track has been played, the player stops automatically. To turn the CD Player off, set the function switch to TAPE/OFF. Note: Do not open the CD compartment during CD play. Always press the... - Page 10 Notes on handling compact discs Do not expose the disc to direct sunlight, high humidity or high temperatures for ex- tended periods of time. Discs should be returned to their cases after use. Do not apply paper or write anything on the disc surface.
-
Page 11: Listening To Tapes
LISTENING TO TAPES 1. Set the FUNCTION switch to TAPE. 2. Press the STOP/EJECT button. The cass- ette holder opens. 3. Load the cassette into the cassette holder (Fig.7). After loading the cassette, press the cassette holder back into position. 4. -
Page 12: Maintenance
Do not use benzene, thinner, or alcohol since they will mar the finish of the surfaces. Cleaning the CD player lens The lens should never be touched. If dust is on the lens, blow it off using a camera lens blower. (Fig. - Page 14 Esta unidad tambien puede reproducir el CD-R/ RW. sin embargo. y dependiendo de las condici- ones de grabacion, algunos CD-R/RW no pueden reproducirse.
-
Page 18: Specifications
CD Player Channels: 2-channel stereo Sampling frequency: 44.1 kHz Pick-up: Semiconductor laser Laser output: 0.6 mW (Continuous wave max.) Wave length: 790 nm Wow/Flutter: Below measurable limits Radio Reception frequency: FM 88 - 108 AM 530 - 1710 KHz Cassette deck...
