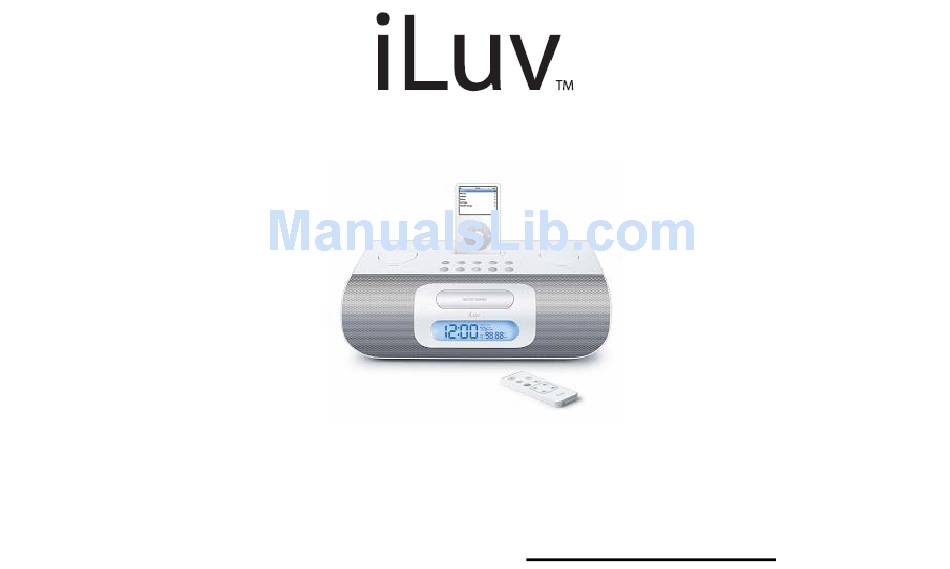

Stereo Audio System for Your iPod

Instruction Manual

Model: i177
Please read this manual carefully before operating and save it for future reference.
Have a question? Please visit http://www.i-Luv.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i177 and is the answer not in the manual?

Questions and answers

Summary of Contents for jWIN i177

  • Page 1: Instruction Manual

    ® Stereo Audio System for Your iPod Instruction Manual Model: i177 Please read this manual carefully before operating and save it for future reference. Have a question? Please visit http://www.i-Luv.com...
  • Page 2 Stereo Audio System for Your iPod USER SAFETY GUIDE INSTRUCTIONS ON ENVIRONMENT PROTECTION Do not dispose of this product in the usual household garbage at the end of its life cycle; bring it to a collection point for the recycling of electrical and electronic appliances.
  • Page 3 Stereo Audio System for Your iPod USER SAFETY GUIDE IMPORTANT SAFETY INSTRUCTIONS – CONTINUED POWER SOURCES – The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance itself. CLEANING –...
  • Page 4 Stereo Audio System for Your iPod USER SAFETY GUIDE FCC NOTICE (USA) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 5: Table Of Contents

    Stereo Audio System for Your iPod TABLE OF CONTENTS Getting Started General features ……………………………………………………………………………………………………………………………………………...… Installing the AC adapter…………….……………………………………………………………..………………………………………………………..… Installing the backup battery for clock and alarm settings ………………..……………………….………………………………………………………. Installing the remote control battery …...………………………………………………………………………………………………………….………… Installing the AM loop antenna ………………………………………………………………………………………………………………………….…….. Installing the dock adapter ……………………………………………………………………………………………………………………………………..
  • Page 6: Getting Started

    GETTING STARTED Congratulations on your purchase of the new iLuv i177 for your iPod. Uniquely designed to work with your iPod, this iLuv stereo audio system with built-in universal dock provides advanced audio and radio performance that brings out the best in your music. Remember to keep this manual for future reference.
  • Page 7: Installing The Ac Adapter

    Installing the Backup Battery for Clock and Alarm Settings In order to offer consistent clock settings and alarm functions, the i177 uses a backup battery system. This means that in the event of a power failure, all the settings of i177 will remain saved. For example, after the installation of the Backup Battery, the AC cord is disconnected or a power failure occurs, the display will NOT remain lit, but the time and date settings will be temporarily maintained.
  • Page 8: Installing The Remote Control Battery

    Stereo Audio System for Your iPod GETTING STARTED Installing the Remote Control Battery The remote control battery has been previously installed and ready for operation for immediate use. When the remote control stops functioning, you must replace the battery with a new one. To do so, locate the battery compartment on the side of the remote and follow the steps below: Squeeze the notch labeled “Tab A”...
  • Page 9: Location Of Controls On The Main Unit

    Stereo Audio System for Your iPod GETTING STARTED Location of Controls on the Main Unit SLEEP VOLUME 9-Pin Connector for iPod shuffle 10. SEARCH 13. TIME SET 16. LCD Display 19. FM Antenna Wire 22. LINE-OUT Jack WAKE TO BAND/RADIO Built-in Universal Dock 11.
  • Page 10: Location Of Controls On The Remote Control

    32. VOLUME + Note: The included remote control commands all basic functions on the i177. Aim the remote control toward the bottom right corner of the main unit for the best results. Please note that the provided remote control cannot control iPod shuffle, the first generation iPod, or the second generation iPod.
  • Page 11: Location Of Indications On The Lcd Screen

    Stereo Audio System for Your iPod GETTING STARTED Location of Indications on the LCD Screen Sleep Indicator Alarm 1 Armed - 10 - V10M10_IM_EN_10192006 www.i-Luv.com...
  • Page 12: Setting The Clock Time

    Notes: • With the Alarm set, the i177 is now activated to wake you up. To ensure this setting, check to see if the alarm and wake icons appear on the display. • Take notice of the adjusted volume level and make sure it is set at an appropriate level for waking up.
  • Page 13: Operational Instructions

    To power the unit off, press the POWER OFF button on the i177 (or on the remote control). If your iPod is left in the built-in universal dock, it will continue to charge.
  • Page 14: Listening To Other Audio Devices

    Listening to Other Audio Devices You can still listen to the first and second generations of iPod, or any other audio player that is not an iPod, with i177 by simply using the LINE-IN jack, located on the rear of i177. Please ensure that before using the LINE-IN jack there is no iPod in the built-in universal dock.
  • Page 15: Using The Alarm Function

    Set your iPod to the repeat mode if you’ve selected Wake To iPod, and your iPod has less than one hour of songs. • If you have selected the Wake To iPod setting, yet no iPod is present or there is no music on the iPod at the alarm time, the i177 will automatically switch to the buzzer mode.
  • Page 16: Setting The Sleep Time

    Setting the Sleep Time To enter into sleep mode, press the SLEEP button while the i177 is off or while listening to your iPod or the radio. The unit will automatically turn off after the selected time. The sleep mode also has a feature called the “Gentle Sleep”, which gradually decreases the volume.
  • Page 17: Maintenance & Troubleshooting Guide

    The software of your iPod is outdated. Upgrade the software on your iPod. For the details on how to upgrade the software on your iPod, please visit Apple Computer’s website: http://www.apple.com. You are using the first or second generation iPod. The i177 does not recognize first or second generation iPod. Use the line-in jack for the first or second generation of iPod.
  • Page 18 The installed battery is weak. Replace with a new battery. It is not aimed to the i177 or too far away from it. Move within 10 feet of the unit and point the remote control toward the i177. - 17 - V10M10_IM_EN_10192006 www.i-Luv.com...
  • Page 19 TEL: 516-626-7188 FAX: 516-626-7105 website: www.i-Luv.com e-mail: info@i-Luv.com iLuv is a trademark of jWIN Electronics Corp. iPod is a trademark of Apple Computer Inc. All logos and brands are property of their respective owners. iPod is not included in this package. Features and specifications are subject to change without prior notification. ©...
