Summary of Contents for jWIN JX-CD7160

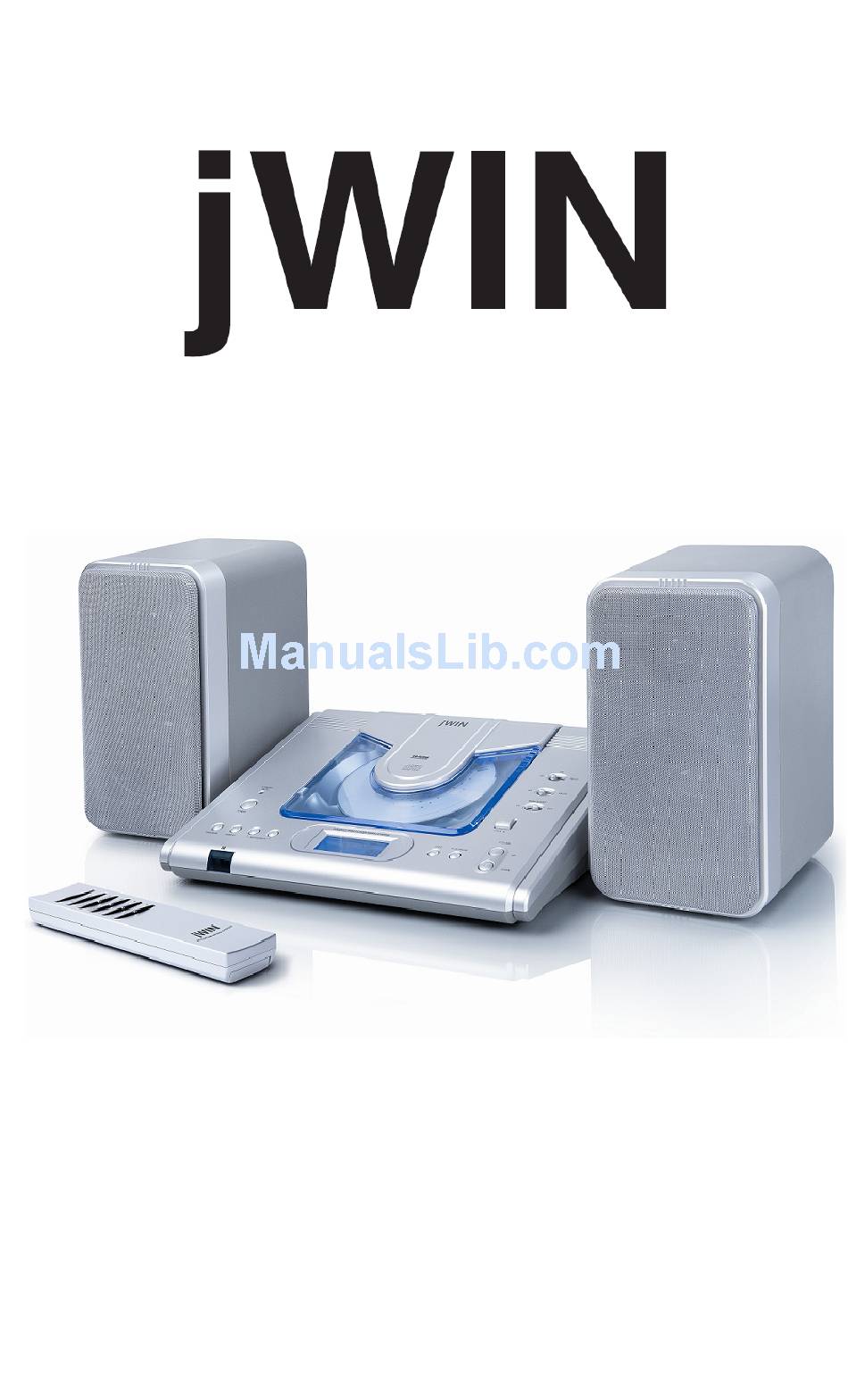

- Page 1 CD MICRO SYSTEM Instruction Manual JX-CD7160 Please read this manual carefully before operating and save it for future reference. Have a question? Please visit http://www.jWIN.com...
-
Page 2: Important Safety Instructions
Mini Portable Stereo Audio System USER SAFETY GIUDE IMPORTANT SAFETY INSTRUCTIONS WARNING: To prevent fire or shock hazard, do not expose this appliance to rain or moisture. These markings are located on the bottom, side or back of the unit. CAUTION: To prevent the risk of electric shock, do not remove cover (or back). -
Page 3: Important Safety Precautions
Mini Portable Stereo Audio System USER SAFETY GIUDE INSTRUCTIONS ON ENVIRONMENT PROTECTION Do not dispose of this product in the usual household garbage at the end of its life cycle; bring it to a collection point for the recycling of electrical and electronic appliances. - Page 4 Mini Portable Stereo Audio System USER SAFETY GIUDE IMPORTANT SAFETY PRECAUTIONS – CONTINUED 14. OBJECT and LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the device’s openings. 15. CARTS AND STANDS - The appliance should be used only with a cart or stand that is recommended by the manufacturer.
-
Page 5: Table Of Contents
Mini Portable Stereo Audio System TABLE OF CONTENTS Getting Started Introduction ……………………………………………………………………… Location of Controls (top, speaker, right, left) ………………………………. Location of Controls (Back Panel) …..……………………………………….. Location of Controls (Remote) ………………………………...……………… Connecting the Speakers ……………………………………………………… AC Operation …………………………………………………………………… Antennas ………………………………………………………………………… Listening with Stereo Headphones ……………………………………………... -
Page 6: Getting Started
Mini Portable Stereo Audio System GETTING STARTED Thank you for purchasing the JX-CD7160. Unpack the unit and make sure to put aside all accessories so they will not be lost. We recommend that you retain the original carton and packaging materials for future use, should you transport or ship the unit in the future. -
Page 7: Location Of Controls (Top, Speaker, Right, Left)
Mini Portable Stereo Audio System GETTING STARTED Location of Controls (top, speaker, right, left) 1. STANDBY/MUTE LED INDICATOR 2. POWER BUTTON 3 CD REPEAT BUTTON 4. CD PROGRAM BUTTON 5. REMOTE CONTROL SENSOR 6. CD SKIP/SEARCH BACKWARD BUTTON 7. CD SKIP/SEARCH FORWARD BUTTON 8. -
Page 8: Location Of Controls (Back Panel)
Mini Portable Stereo Audio System GETTING STARTED Location of Controls (back) 1. FM ANTENNA CONNECTION Location of Controls (Remote Control) 2. SPEAKER TERMINALS 1. POWER BUTTON 2. PLAY/PAUSE BUTTON 3. RANDOM BUTTON 4. REPEAT BUTTON 5. SEARCH - BUTTON 6. VOLUME - BUTTON 7. -
Page 9: Connecting The Speakers
AC Operation Before operating this unit, make sure the voltage indicated on the JX-CD7160 matches the voltage in the wall outlet. 1. Plug the AC POWER CORD into a standard AC wall outlet. -
Page 10: Operational Instructions
Mini Portable Stereo Audio System OPERATIONAL INSTRUCTIONS Loading a CD into the Player Set the FUNCTION switch to CD. The total number of tracks on the CD will appear on the LCD display. When the FUNCTION switch is in the CD position and there is no disc inside, the LCD display will show “00”... -
Page 11: Repeat Mode
Mini Portable Stereo Audio System OPERATIONAL INSTRUCTIONS Repeat Mode Press the REPEAT button once to enter the REPEAT 1 mode. The REPEAT indicator will light and flash continuously. A single CD track will be repeated. Press the REPEAT button twice to enter the REPEAT ALL mode. The REPEAT indicator will now display constantly. -
Page 12: Listening To The Radio
Mini Portable Stereo Audio System OPERATIONAL INSTRUCTIONS Listening to the Radio Slide the FUNCTION switch to the RADIO position. Turn the TUNING knob to the desired radio station (appears on the LCD display). Adjust the sound level using the VOLUME (+/-) control. To turn off the radio, press the POWER button once. -
Page 13: Maintenance
Mini Portable Stereo Audio System MAINTENANCE Notes on CDs Before playing, clean the CD with a cleaning cloth. Wipe the CD from the center out to the ends. Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs. -
Page 14: Troubleshooting Guide
Mini Portable Stereo Audio System TROUBLESHOOTING GUIDE When the instructions in this manual are followed, this unit should function properly. However, if any of the following difficulties occur and cannot be corrected by the user or if a problem arises that is not mentioned here, please contact jWIN Customer Service or a qualified service technician. -
Page 15: Technical Specifications
Mini Portable Stereo Audio System SPECIFICATIONS • Audio Output: 2.0W RMS/ Channel • Frequency Range AM: 530kHz – 1710kHz FM: 88MHz – 108MHz • Connectivity 3.5mm stereo headphone jack • Power Requirement Main Unit: AC 120V / 60Hz • Power Consumption: ≤ 15W •... - Page 16 TEL: 516-626-7188 FAX: 516-626-7105 website: www.jWIN.com © 2007 jWIN Electronics Corp. All rights reserved. No portion of this printed material or product enclosed herewith including design, shape and graphics, may be reproduced or transmitted in any form without prior written consent of jWIN Electronics Corp. by any means, electronic or mechanical, including photocopying, recording or use of an information storage and retrieval system.
