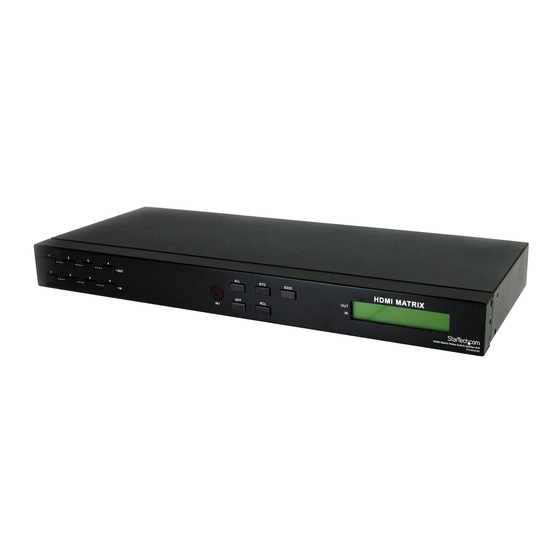

4x4 HDMI Matrix Video Switch Splitter with RS232
VS440HDMI
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 02/06/2012
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com VS440HDMI
Summary of Contents for StarTech.com VS440HDMI
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 02/06/2012...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Front View ..............................2 Rear View ..............................2 Installation ....................3 Hardware Installation ..........................3 Software Installation ..........................3 How to Use ....................4 Front Panel ..............................4 Software ............................... 5 Troubleshooting ..................7 Specifications ..................8 Technical Support ..................9... -
Page 4: Introduction
Introduction The VS440HDMI 4x4 HDMI Matrix Video Switch Splitter with Audio and RS232 allows you to share up to four distinct HDMI or DVI inputs (Using HDMI to DVI adapters - not included) with audio between four independent displays or projectors. -
Page 5: Front View
Front View Rear View Instruction Manual... -
Page 6: Installation
Installation Hardware Installation 1. Make sure that all devices are powered off before beginning installation. 2. Connect the HDMI display device(s) to the HDMI Output connectors on the rear of the matrix switch. 3. Connect the HDMI video source device(s) to the HDMI Input connectors on the rear of the matrix switch. -
Page 7: How To Use
How to Use Front Panel OUT 1~4: Selects the numbered Output Port to be configured. An output must be selected before selecting an input. IN 1~4: Selects the numbered Input Port to map to an Output Port. Should only be used after an Output Port has been selected first, otherwise an error message will be generated on the LCD status display. -
Page 8: Software
Software Once the software is installed and the matrix switch is properly connected to the host computer, launch the AV Matrix software to bring up the main control panel. The panel on the left side will list all compatible matrix switches that are connected to the host computer system. - Page 9 Options: Used to configure the serial port on the computer, if necessary. Selecting Video Output Mapping the “Output” ports to an “Input” port can be accomplished through one of two methods Method 1: 1. Ensure the “Video” checkbox is checked in the bottom right corner of the center panel. 2.
-
Page 10: Troubleshooting
Troubleshooting If switching input/output with the front panel keys are not responsive. • Press and hold the key for 2 seconds, then release, instead of just a quick press. Loss of video output or color, or the unit becomes unusually hot. • If the signal voltage difference between the video source device(s) and the matrix switch is too large, hot plugging could easily cause damage to the IC chips. -
Page 11: Specifications
Specifications Video Signal High Speed HDMI (HDMI 1.3) Number of Inputs Number of Outputs 4 x HDMI type A female (input) 4 x HDMI type A female (output) External Connectors 1 x DB9 female 1 x IR Extender connector 1 x DC Power LEDs Maximum Video Resolution 1080p / 1920x1200... -
Page 12: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 13 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
