StarTech.com HDMI-SPLITTER-4K60UP Quick Start Manual

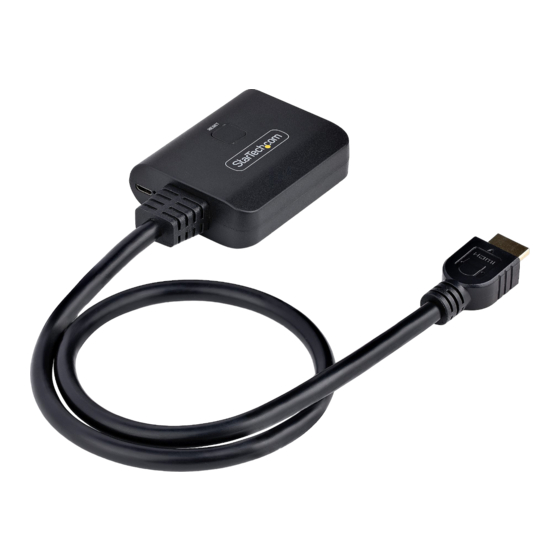

2-Port Portable HDMI® Video Splitter with USB Power - 4K 60Hz
Product ID
HDMI-SPLITTER-4K60UP

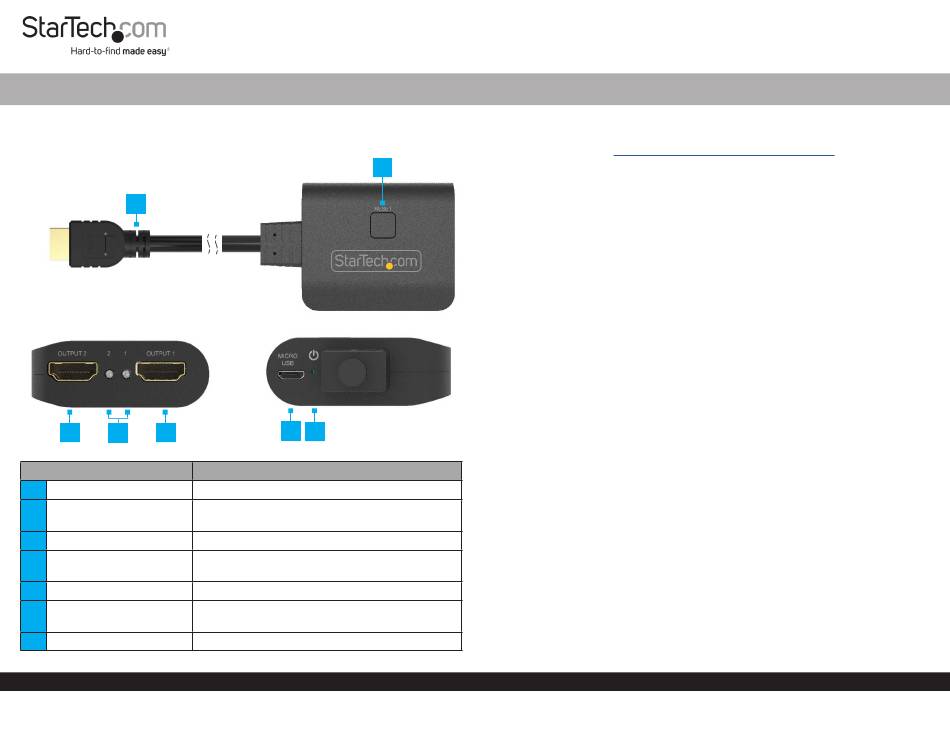

Top View
1
Front View
3 5
4
Component
1
HDMI Input Dongle Cable
2 Reset Button
3 HDMI Output 2
4
Display Activity LEDs
5
HDMI Output 1
6 USB Micro-B Power Port
7 Power LED
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
2
Rear View
6 7
Function
Connect to an HDMI Source Device
•
Resets the HDMI Splitter, forcing re-detection of
•
the HDMI Displays
Connect to an HDMI Display
•
Solid Blue: Connection to an HDMI Display
•
detected
Connect to an HDMI Display
•
Connect to the included USB Wall Charger for
•
power
Solid Blue: Indicates if power is being received
•
Product Information
For the latest manuals, product information, technical specifications, and declarations of
conformance, please visit: www.StarTech.com/HDMI-SPLITTER-4K60UP
Package Contents
2-Port HDMI Splitter x 1
•
USB Micro-B Cable x 1
•
USB Wall Charger x 1
•
Quick-Start Guide x 1
•
Requirements
HDMI Source x 1
•
HDMI Display x 2
•
HDMI Cables (sold separately) x 2
•
Installation
Note: Ensure your HDMI Source Device, and the HDMI Displays are powered off before
you begin installation.
Connect the HDMI Input Dongle Cable on the HDMI Splitter to the HDMI Output
1.
Port of your HDMI Source Device.
Connect the HDMI cables (not included) from each of the HDMI Output Ports on
2.
the HDMI Splitter, to the HDMI Input Port on your HDMI Displays.
Note: Each port is numbered, please take note of which number is assigned to each
HDMI-enabled display device.
Power on each HDMI Display, followed by your HDMI Source Device.
3.
Plug in the included USB Wall Charger to an available Wall Outlet.
4.
Connect the included USB Micro-B Cable from the USB Wall Charger, to the USB
5.
Micro-B Power Port, located on the rear of the HDMI Splitter.
Your HDMI Source Device will now display an identical image on each attached
6.
HDMI-enabled display device.
Quick-Start Guide
Manual Revision: August 2, 2022 8:40 AM
