Summary of Contents for Hoggi ZIP

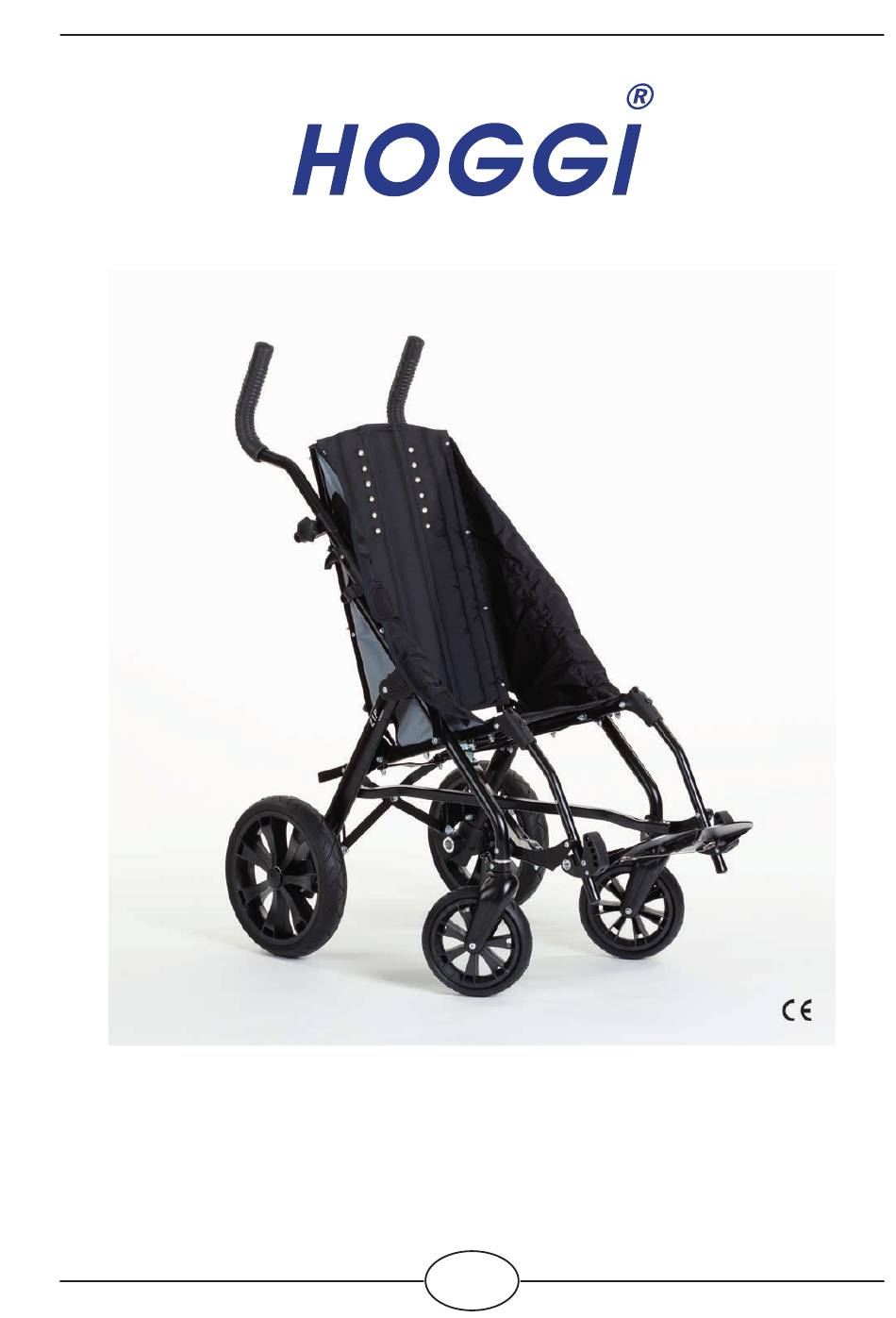

- Page 1 Service instructions...
-
Page 2: Table Of Contents
ZIP - Service and maintenance instructions Page Content Model identification & basic configuration 1.1 Model identification (label)_____________________________________________________ 4 1.2 Basic configuration___________________________________________________________ 4 Overview ZIP ___________________________________________________________________ 5 Common information ____________________________________________________________ 6 3.1 Preface ___________________________________________________________________ 6 3.2 Application_________________________________________________________________ 6 3.3 Declaration of conformity______________________________________________________ 6 3.4 Terms of warranty ___________________________________________________________ 6... - Page 3 7.11 Braking system ____________________________________________________________ 18 7.12 Tie down kit________________________________________________________________18 7.13 Abduction block_____________________________________________________________19 7.14 Grab rail__________________________________________________________________ 19 7.15 Therapy tray_ _____________________________________________________________ 19 7.16 Belt fixations_____________________________________________________________20-21 7.17 Winter warmer______________________________________________________________21 7.18 Canopy __________________________________________________________________ 21 Operating life _________________________________________________________________ 22 Specifications _________________________________________________________________ 22...
-
Page 4: Model Identification (Label)

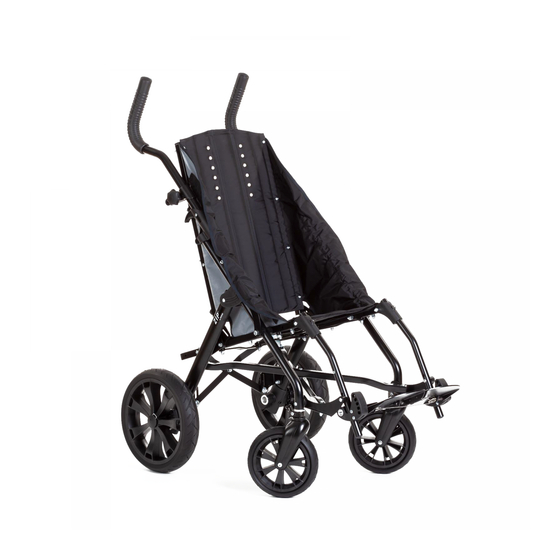

Manufacturer Place of manufacture Year of manufacture 1.2 Basic configuration - ZIP rehab buggy - Reinforced nylon seat and back cover - Stepless, height and angle adjustable and fold-away footrest - Ball bearing PU or pneumatic tires - Parking brake... -
Page 5: Overview Zip
2 Overview ZIP 2.1 ZIP... -
Page 6: Common Information
• General weakness The ZIP rehab pushchair is able to be used indoor and outdoor as well as for further service. For further service the product has to be cleaned and sanitised efficiently. Afterwards the product has to be checked concerning condition, wearout and damage by an authorised technician. -
Page 7: Customer Service
3.6 Service and repairs Service and repairs on the ZIP rehab pushchair may only be carried out by your specialist dealer. In case of problems, contact your responsible specialist dealer. In case of repairs, you will only receive original spare parts there. -
Page 8: Safety Instructions
Familiarize yourself with the functions of the product. If you are not familiar with the product, study the user manual before testing. If no user mauals are available, request them from us. You can also download documents from our homepage at: www.hoggi.de Attention! Study the service and maintenance instructions before starting work. -
Page 9: Required Tools And Maintenance Schedule
5 Required tools and maintenance schedule 5.1 Required tools The following list shows the tools and utilities required for service. Reversible ratchet and sockets Torque wrench Wrench size 8-24 Measuring ranges 5-50 Nm Size 6 - 24 Hexagon wrench Screwdriver Phillips screwdriver Gr. -
Page 10: Maintenance Schedule
Customer: 5.2 Maintenance ..........Basic product schedule Pos. Area Check (Checklist to tick off Serial number: Function / Setting Screw connections none (see manual) damage / defor- ........mation Mobility base Front frame Rear frame and axle - Parking brake Push handles - Folding mechanism - Locking... - Page 11 Customer: 5.2 Maintenance ..........Accessories Pos. Area Check (Checklist to tick off Serial number: Function / setting Screw connections none (see manual) damage / defor- ........mation Accessories Tie down kit - Damage Abduction block (accessories) Retainer for accessories Grab rail (accessories) - Locking (tripod springs) Therapy tray (accessories)
-
Page 12: Seat Settings
Size 1: 35 cm Size 2: 40 cm 6.2 Seat depth ZIP offers a decent ability to grow along with the seat depth. The following adjustment ranges apply to the two sizes: Size 1: 30 or 35 cm Size 2: 35 or 40 cm Measuring point from front edge of seat upholstery to lower edge of back upholstery. -
Page 13: Back Height
Size 1: 60 cm / 66 cm (lang) Size 2: 68 cm 6.4 Recline The back angle of ZIP can be adjusted between 90° and 100° for size 1 or 95° and 105° for size 2 in relation to the seat surface. -
Page 14: Footrest Angle
The back angle of ZIP can be adjusted between 90° and 100° for size 1 or 95° and 105° for size 2 in relation to the seat surface. 6.5 Footrest angle The footrest angle is preset to 90°. The adjustment range is +- 10°... -
Page 15: Push Handles
7.3 Push handles - Check for general damage - Folding in via the release button - Latching of the push handles in unfolded state, bolt must release from the lock when folded and lock again when unfolded. Check of the screw connections: - Lower screw connection of the push handle lower parts to the slider - Fastening of the trigger - Rivet connection of the trigger... -
Page 16: Individual Upholstery System
Back cover (rear side) - Check for general damage - Check the bolting to the frame - Check folding struts and folding lever 7.6 Individual upholstery system - Check for general damage or impurities - Wear of the upholstered surfaces 7.7 Footrest holder &... -
Page 17: Swivel Lock
- Camber of the wheel worn too much Check of the bolted connections: - Screw connection of the wheel axle - Bolting of the steering fork axle to the frame Make sure that the steering fork is set up as follows! The sealing washer with the O-ring prevents excessive „fluttering“... -
Page 18: Braking System
7.11 Braking system ZIP can be equipped with 2 brake variants! Parking brake: - Basic configuration - Not in combination with drum brake wheels - Easily replaceable - Locking when locked? - Pivoting Brake for attendant - Check for general damage... -
Page 19: Abduction Block
Rear securing eyelets: - Check of the screw connections to the frame 7.13 Abduction block Functional test: - Check for general damage - Pivoting and latching mechanism - Removal Check of the screw connections: - Bracket abduction block to the seat panel 7.14 Grab rail Functional test: - Check for general damage... -
Page 20: Belt Fixations
7.16 Belt fixations Lap belt Functional test: - Check for general damage - Check of the fastener - Check of the screw connection of the bracket 4-point lap belt Functional test: - Check for general damage - Check of the fastener - Check of the screw connection of the bracket Ankle huger Functional test:... -
Page 21: Winter Warmer
Fixation jacket Functional test: - Check for general damage - Check of the fastener - Check of the screw connection of the brackets - Function of the buckles on the back panel - Rivet connection of the clamping buckles Chest-shoulder harness Functional test: - Check for general damage - Check of the fastener... -
Page 22: Operating Life
8. ZIP operating life: The expected operating life of the ZIP is 5 years, depending on the intensity of use, care as well as maintenance. We recommend an annual inspection by the authorized specialist dealer. In case of malfunctions or defects of the wheelchair, it must be immediately handed over to the medical supply store or the specialist dealer. - Page 24 HOGGI GmbH Eulerstraße 27 • 56235 Ransbach-Baumbach • Deutschland Telefon: (+49) 2623 / 92 499-0 • Telefax: (+49) 2623 / 92 499-99 E-mail: info@hoggi.de • www.hoggi.de...
