INSTALLATION AND USER INSTRUCTIONS
ELECTRICAL SAUNA HEATER:
C an be connected to the following control unit:
RA 18 Midi control unit
RA 12 Digi II control unit
RA 13 Digi I control unit
RA 16 Easy control unit
INSTALLATION OF THE SAUNA HEATER
The following points have to be observed when installing the heater:
Adhere to the given installation measurements.
-
-
Wood panelling is recommended as material for the walls and ceiling of the sauna.
-
Ensure that the panel wall has been reinforced at the point of the fixing screws.
-
Only one heater may be installed into a sauna.
-
The heater must only be connected to the mains by a qualified person as defined by current
electricity regulations.
NOTE! Prior to switching the heater on, ensure that the sauna room is ready for heating.
CONNECTING THE HEATER TO THE MAINS
The heater is semi-connected to the mains with H07RN-F (VSN) or A07BB-F(VSB) rubber cable.
HEATER STONES
We recommend that the heater stones are cleaned before placing them onto the heater. The largest stones are placed
at the bottom and the smallest on the top. Stones must not be structured too tightly, or air circulation is inhibited. Nor
must the stones be placed so that heat resistance elements become wedged together or against the heater body. The
stones must completely cover the heat resistance elements. The stones have to be replaced at the latest when they
start to crumble, because otherwise the air circulation through the stones is affected. When replacing the stones, new
stones have to be of a high quality.
NOTE!
- The heater stones MUST NOT be placed in the space between the front soapstones and the first resistance
element.
- Before use it must be checked that the soapstones in the heater are undamaged and installed according to
instructions. Otherwise the use of the heater is prohibited. The guarantee does not cover faults due to poor
air circulation caused by small and tightly packed stones. Ceramic stones may damage the heater. The
guarantee of the heater does not cover any damage caused by their use.
INSTALLATION OF THE CONTROL UNIT AND SENSOR ELEMENTS
The control unit is electrically connected via a cable to the heater. The control unit is intended for installation in the
sauna room or outside of it, depending on the model of the control unit. Check the control unit location from the control
unit installation and user instructions.
The sensor is fixed to the wall of the sauna, directly on the middle line of the heater, 40mm from the ceiling. Any
deviation from the given installation measurements will cause a risk of burns.
The temperature limiter in the sensor element cuts off all the heating energy to the heater if the heater temperature
increases to a level where it causes a danger to the wooden parts of the sauna. Once the temperature is reduced the
limiter can be restored by pressing the restore button.
Before pressing restore, the reason for the triggering of the temperature limiter must always be clarified!

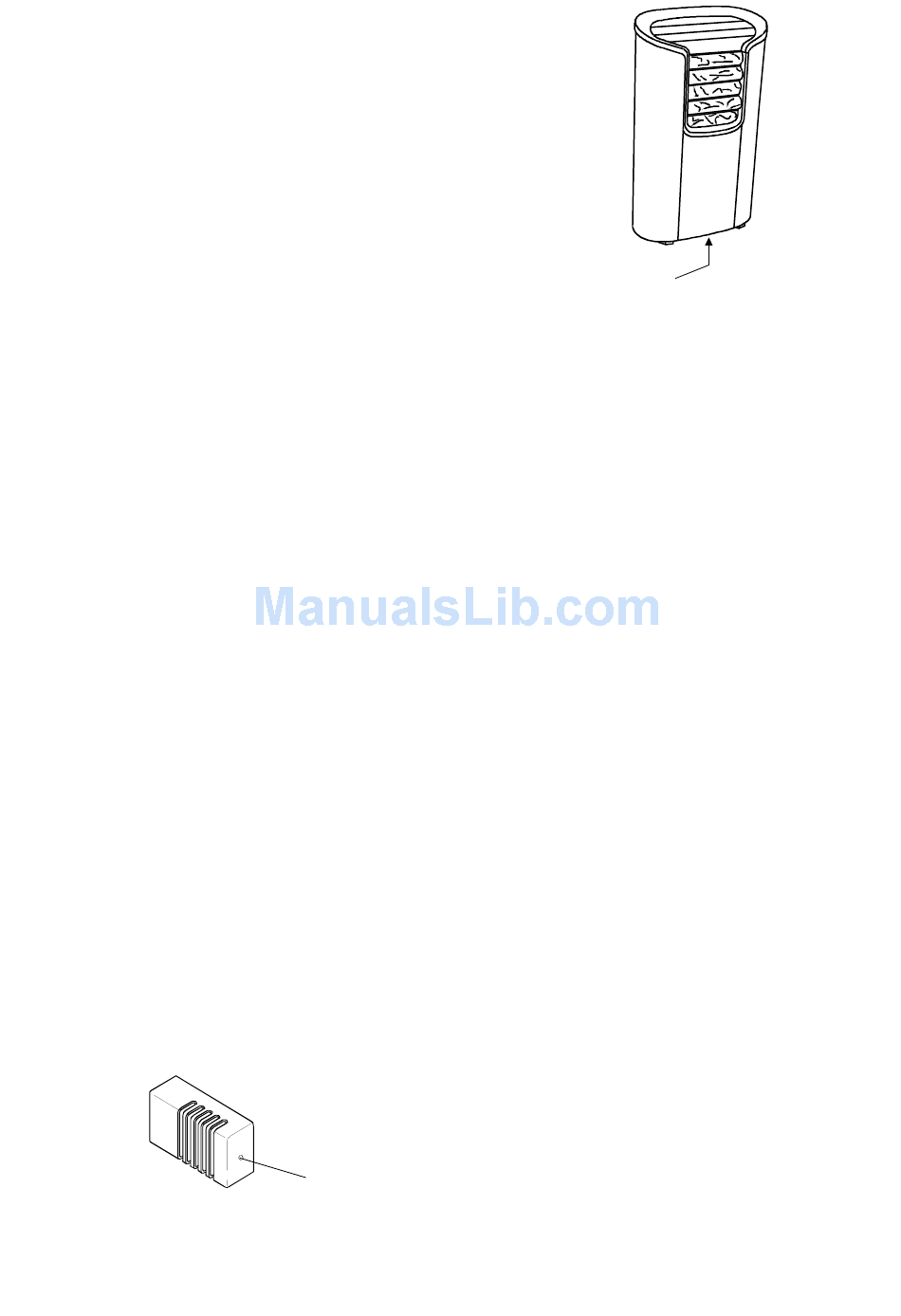

Sensor OLET 19
1118-60-0405
1118-90-0405
Restore
Main switch
7013482 314 SKLT 3 B
