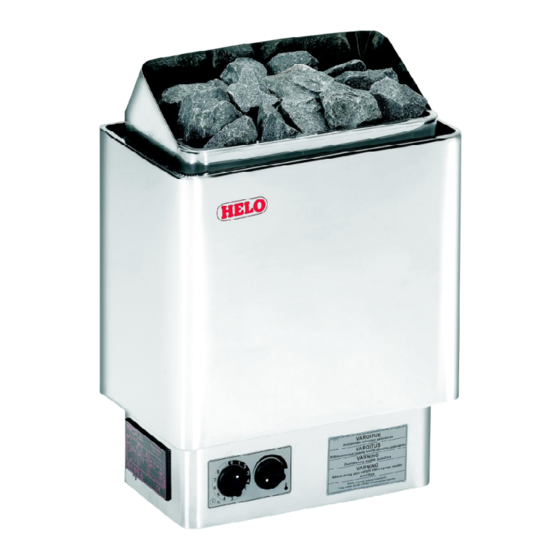

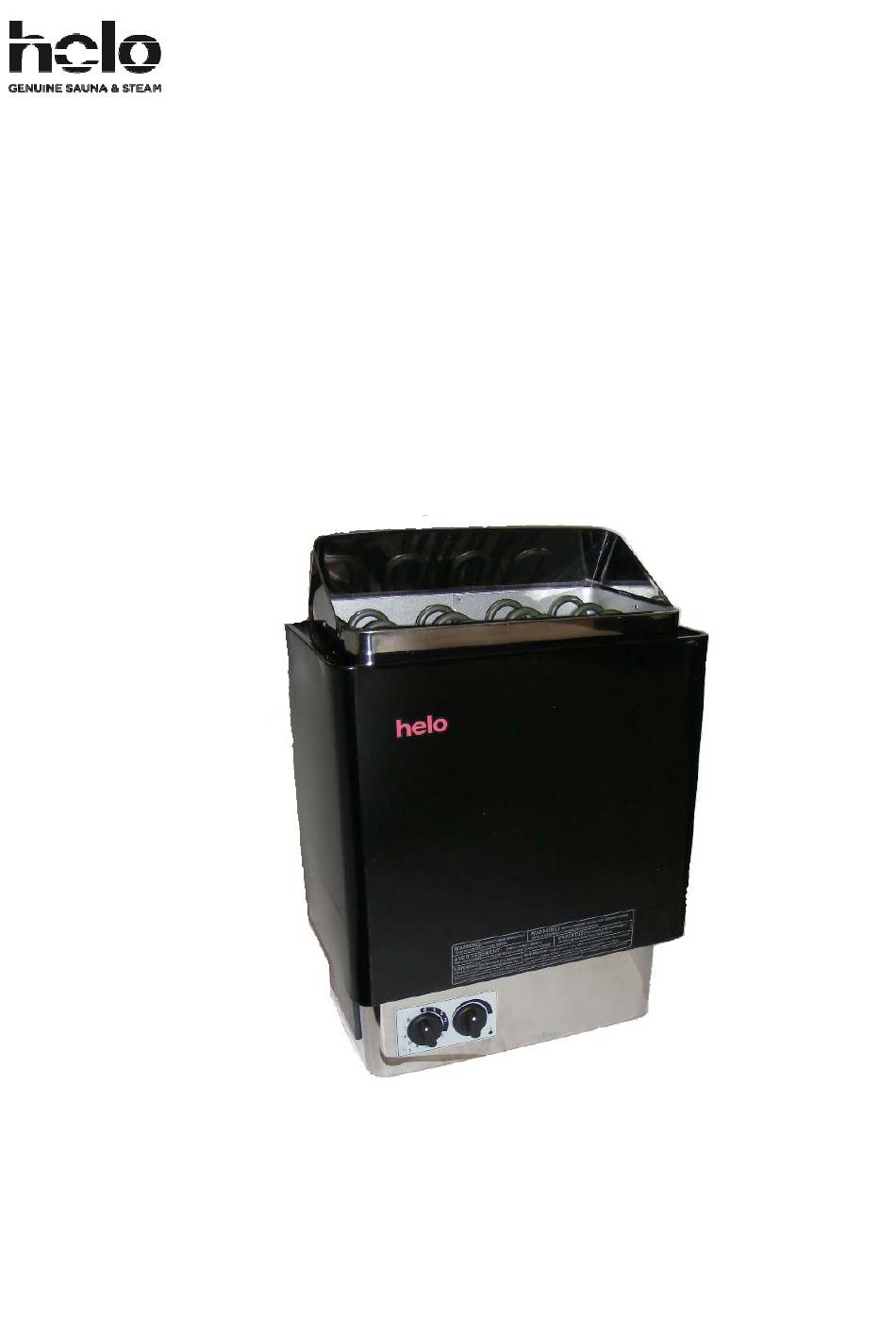

- Page 1 Product Manual SKSM STJ ELECTRIC SAUNA HEATER: 1712-30-171809 1712-45-171809 1712-60-171809 1712-80-171809 1712-90-171809 314 SKSM 204-3 A...
-
Page 2: Table Of Contents
2.10 Connection of the sauna heater to the mains 2.11 Electric heating toggle 2.12 Location for the connection box 2.13 Viring diagram 3. Spare parts for the SKSM STJ-electric sauna heater 4. ROHS Images and Tables Image 1 Recommended sauna room ventilation... -
Page 3: Quick Instructions For Use Of The Sauna Heater
If you encounter any problems, please contact the manufacturer's warranty service shop. A list of warranty service shops is included in the delivery. For additional information about enjoying a sauna bath, please visit our website at www.helo.fi 2. Information for users Persons with reduced physical and mental capacity, sensory handicap, or little experience and knowledge about how the device is operated (e.g. -
Page 4: Recommended Sauna Room Ventilation
Product Manual SKSM STJ 2.2 Recommended sauna room ventilation 1000 mm 500 mm Image 1 Recommended sauna room ventilation 1. Sauna room 3. Electric sauna heater 5. Exhaust flue or channel 2. Washroom 4. Exhaust valve 6. Door to the sauna room 7. -
Page 5: Sauna Heater Stone
Product Manual SKSM STJ 2.4 Sauna heater stone Quality stones meet the following requirements: Sauna stones should withstand heat and heat variation caused by vaporisation of the water thrown on the stones. Stones should be rinsed before use in order to avoid odour and dust. -
Page 6: Sauna Heater Controls
Product Manual SKSM STJ 2.5 Sauna heater controls 2.5.1 Timer The sauna heater is controlled by operating a 12-hour timer with three operating zones. The timer is set by twisting the knob clockwise until the desired operating zone is reached. When operating, the timer gradually travels counter-clockwise towards the zero position. -
Page 7: Electric Heating Toggle
Product Manual SKSM STJ 2.6 Electric heating toggle Electric heating toggle applies to homes with an electric heating system. The sauna heater thermostat also controls the heating toggle. In other words, home heating turns on once the sauna thermostat cuts power off the sauna heater. -
Page 8: Sauna Heater Safety Clearances
Product Manual SKSM STJ 2.9.1 Sauna heater safety clearances (mm) (mm) min 30 min 30 min 30 MIN. Minimium distances to the mounting bracket (mm) Grill Ø 3,5 mm Screws 6 x 40 (2 kpl) Screws 6 x 16 (2 kpl) -
Page 9: Connection Of The Sauna Heater To The Mains
Product Manual SKSM STJ 2.10 Connection of the sauna heater to the mains The sauna heater must be connected to the mains by a qualified electrician and in compliance with current regulations. Sauna heater is connected with a semi-permanent connection. Use A07BB-F or H07RN-F (60245 IEC 66) cables or a corresponding type. -
Page 10: Location For The Connection Box
Product Manual SKSM STJ Heater image 3 Locating the connection box for connection cable in the sauna room 2.12 Location for the connection box A = Specified minimum safety clearance 1. Recommended location for the connection box 2. Silumin box recommended in this area. -
Page 11: Viring Diagram
Product Manual SKSM STJ 2.13 Viring diagram Lämpövastukset, Värmeelement, Tennid, Heating elements, Teho, Effekt Heizeelement, Resistores Térmicos, Éléments chauffants, Input, Potencia Elementy grzewcze, Leistung, Moc ТЭНы, 230V Vöimsus,Wejscie Puissance SEPC 62 SEPC63 SEPC 64 SEPC 65 SEPC 65B SEPC65C 1000W... -
Page 12: Spare Parts For The Sksm Stj-Electric Sauna Heater
Product Manual SKSM STJ 3. Spare parts for the SKSM STJ-electric sauna heater Product SKSM STJ SKSM STJ SKSM STJ SKSM STJ SKSM STJ Part Product title number 4071002 Basic grate Clock 5509053 OYKF 1 Thermostat 5408013 OLCH 1 Mains connector... -
Page 13: Rohs
Product Manual SKSM STJ ROHS Ympäristönsuojeluun liittyviä ohjeita Anvisningar för miljöskydd Tämän tuotteen käyttöiän päätyttyä sitä ei Denna produkt får inte kastas med saa hävittää normaalin talousjätteen vanliga hushållssopor när den mukana, vaan se on toimitettava inte längre används. Istället ska den sähkö- ja elektroniikkalaitteiden kierrätykseen...
