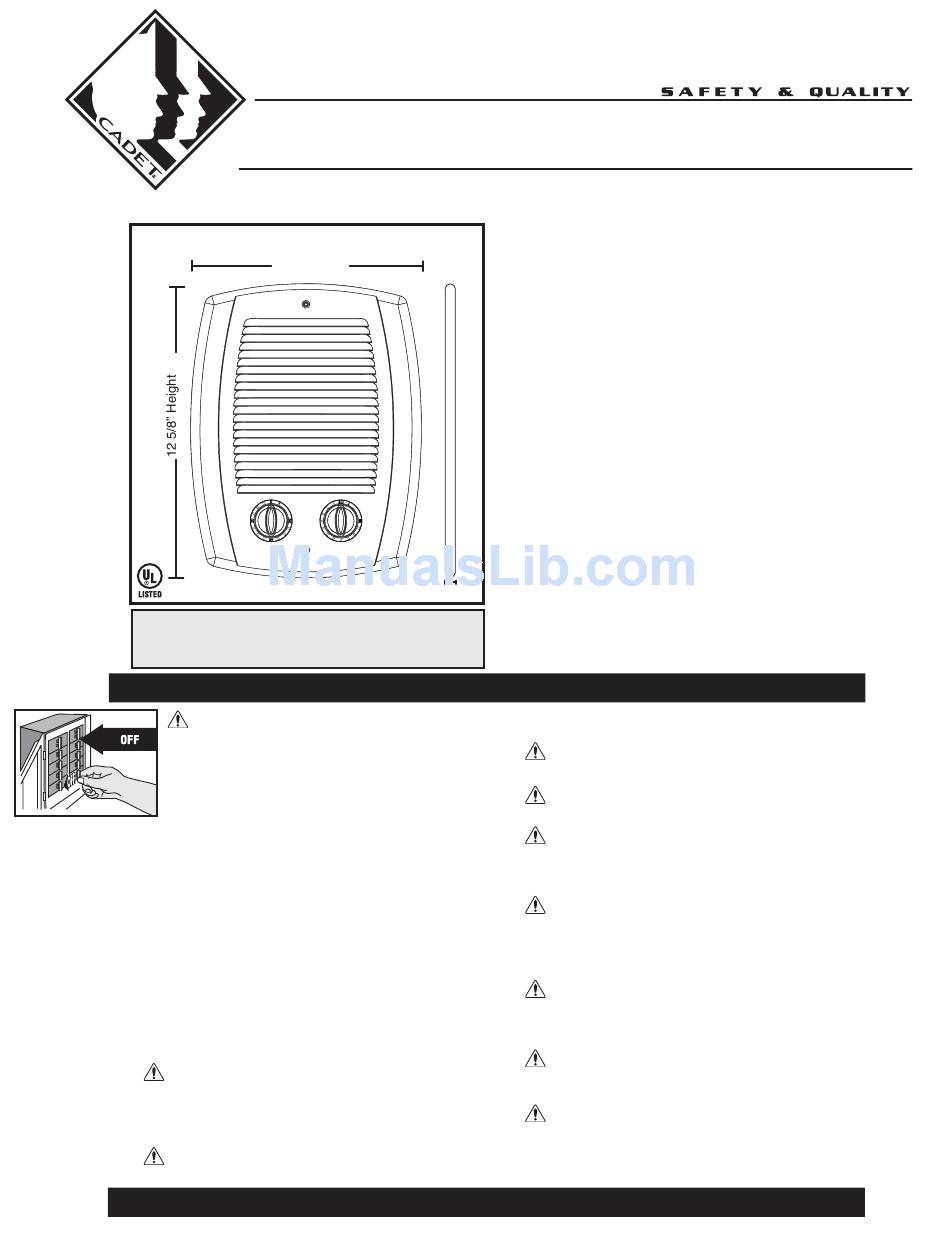

Cadet The Com-Pak CBC132TW Owner's Manual

The Com-Pak™ Bath Heater
OWNER'S GUIDE FOR MULTI-WATT MODELS
The Com-Pak™ Bath Heater
10" Width
Tools Required:
Phillips Screwdriver
Straight Screwdriver
Wire Strippers
WARNING
Turn the electrical power off at the electrical panel
board (circuit breaker or fuse box) and lock or tag
the panel board door to prevent someone from
turning on power while you are working on the
heater. Failure to do so could result in serious
electrical shock, burns, or possible death.
1. Read all instructions before using this heater.
2. Read all information labels. Verify that the electrical
supply wires are the same voltage as the heater.
3. All electrical work and materials must comply with the
National Electric Code (NEC), the Occupational Safety
and Health Act (OSHA), and all state and local codes.
4. Connect the grounding pigtail (copper wire) provided in
the wall can to the supply ground wire.
5. If you need to install a new circuit or need additional
wiring information, consult a qualified electrician.
6. Protect electrical supply from kinks, sharp objects, oil,
grease, hot surfaces or chemicals.
7. WARNING
Overheating or fire may occur. DO NOT install the heater
in a floor, in the ceiling, below a towel bar, behind a door,
or anywhere the air discharge may be blocked in any
manner.
8. WARNING
Fire or explosion may occur. DO NOT install heater in any
360-693-2505 Fax: 360-694-8668 P.O. Box 1675 Vancouver, WA 98668-1675
1/2" Depth
Utility Knife
4 1 / " Wood Screws
1
2
3 Insulated Wire Connectors
1 Strain Relief Connector
IMPORTANT INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Features & Benefits
■ Primary and secondary thermal
safeguards
• High temperature manual reset
• Over temperature one-time thermal
device
■ Commercial grade steel element painted
to resist rusting
■ Built-in controls
• Single pole thermostat • 60 minute timer
■ Powder coat paint process eliminates
sharp cutting edges
■ Three year extended warranty on
element and motor.
■ Factory tested
■ Multi-Watt
• 1300–800–500 at 240 Volt AC
• 975–600–375 at 208 Volt AC
Models: The Com-Pak Bath Heater CBC132TW and CB132T
area where combustible vapors, gases, liquids, or
excessive lint or dust are present.
9. WARNING
DO NOT install where heater is likely to get wet.
10. WARNING
Heater must be connected to a GFCI protected branch circuit.
11. WARNING
Burn Hazard. This heater is hot when in use. To avoid burns,
do not let bare skin touch hot surfaces. Use extreme
caution when any heater is used by or near children or invalids.
12. WARNING
Risk of Electrical Shock. DO NOT install the heater
directly above bathtub or sink. DO NOT install in shower
stall area (Manufacturer recommends a minimum 2 foot
clearance).
13. WARNING
Risk of Electrical Shock. Connect grounding lead to
grounding wire provided. Keep all foreign objects out of
heater.
14. WARNING
Risk of Electrical Shock. Never place a switch where it can
be reached from the tub or shower enclosure.
15. WARNING
Risk of Fire. Do not block heater. Heater must be kept clear of
all obstructions: a minimum of 3 feet in front, 6 inches above
and on both sides. Heaters must be kept clean of lint, dirt and
debris. (See Maintenance Instructions).
