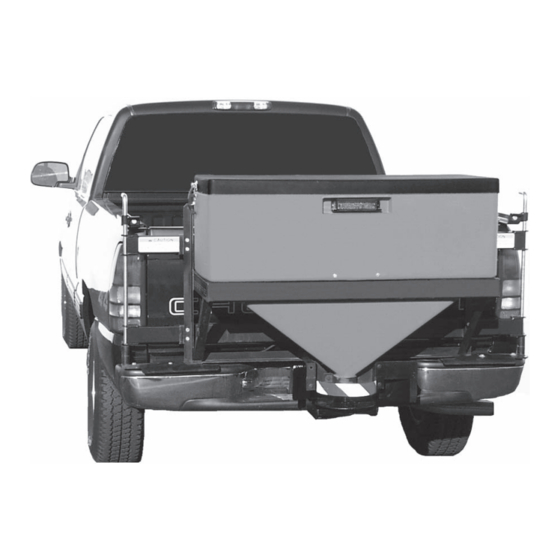

- Page 1 March 1, 2009 Lit. No. 94432, Rev. 05 LOW PROFILE TAILGATE SPREADERS SWING AWAY MOUNT ® Installation Instructions CAUTION Read this manual before installing or operating the spreader.
-
Page 2: Safety Information
SAFETY INFORMATION WARNING WARNING Indicates a potentially hazardous situation Overloading could result in an accident or that, if not avoided, could result in death or damage. Do not exceed GVWR or GAWR serious personal injury. ratings as found on the driver-side cornerpost of the vehicle. - Page 3 SAFETY INFORMATION Please become familiar with the Warning and Caution labels on the spreader! Caution Label Caution Label Located on both sides ® SWING AWAY mount only. Warning/Caution Label Located on both sides. Warning/Caution Label WARNING CAUTION • DO NOT exceed GVWR or GAWR with spreader and load.
-
Page 4: Torque Chart
LOADING This manual covers vehicles which have been When tightening fasteners, refer to Torque Chart for recommended for carrying the spreader. Please see the recommended fastener values. your local dealer for proper vehicle applications. Torque Chart WARNING Recommended Fastener Torque Overloading could result in an accident or Chart (ft-lb) damage. - Page 5 SWING AWAY MOUNT INSTALLATION INSTRUCTIONS ® SWING AWAY Mount Installation 1/2" x 1-3/4" Cap Screw Hinge Pin Top Bracket Hinge Pin Top Swivel Support Top Swivel Support 1/2" x 1-3/4" Cap Screw Top Bracket 5/16" x 1-1/4" Cap Screw 1/2" x 1-3/4"...
- Page 6 SWING AWAY MOUNT INSTALLATION INSTRUCTIONS ® 9. Repeat this process on the passenger side of the vehicle. 10. Replace the hinge pins through the top supports and into the base plates. 11. Re-adjust the baseplates if necessary to ensure vertical alignment with the top brackets and clearance to the vehicle.
- Page 7 SWING AWAY MOUNT INSTALLATION INSTRUCTIONS ® 19. Use the pre-punched holes in the connector 27. Reinstall the channel assemblies and hinge pins channel as a guide to drill two 13/32" diameter on the truck. Verify that the caution labels located...
- Page 8 Do not exceed vehicle ratings with a spreader. The company offers a limited warranty for all spreaders. See separately printed page for this important information. The following is a registered (®) trademark of Douglas Dynamics, L.L.C.: SWING AWAY ®...
