Direction: INBOUND (from WAN to LAN) or OUTBOUND (from LAN to WAN)
Action: DENY(block) or PERMIT(allow)
Description: Type a description for your customized service..
Src. IP Address: The source addresses or ranges of addresses to which this packet filter rule
applies. (Address 0.0.0.0 is equivalent Any)
Dest. IP Address: The destination addresses or ranges of addresses to which this packet filter rule
applies. (Address 0.0.0.0 is equivalent Any)
Schedule: Select everyday (always) or the day(s) of the week to apply the rule. Enter the start and
end times in the hour-minute format to apply the rule.
For example, If you want to ban all of the protocol from the IP (e.g.: 200.1.1.1) to access the all
PCs (e.g.: 192.168.0.2 ~ 192.168.0.50) in the LAN, key in the parameter as:
Protocol: ANY
Direction: INBOUND (INBOUND is from WAN)
Action: DENY
Description: Hacker
Src. IP Address: 200.1.1.1
Dest. IP Address: 192.168.0.2-192.168.0.50
Schedule: You can set always or any time range which you want
Press OK to finish.

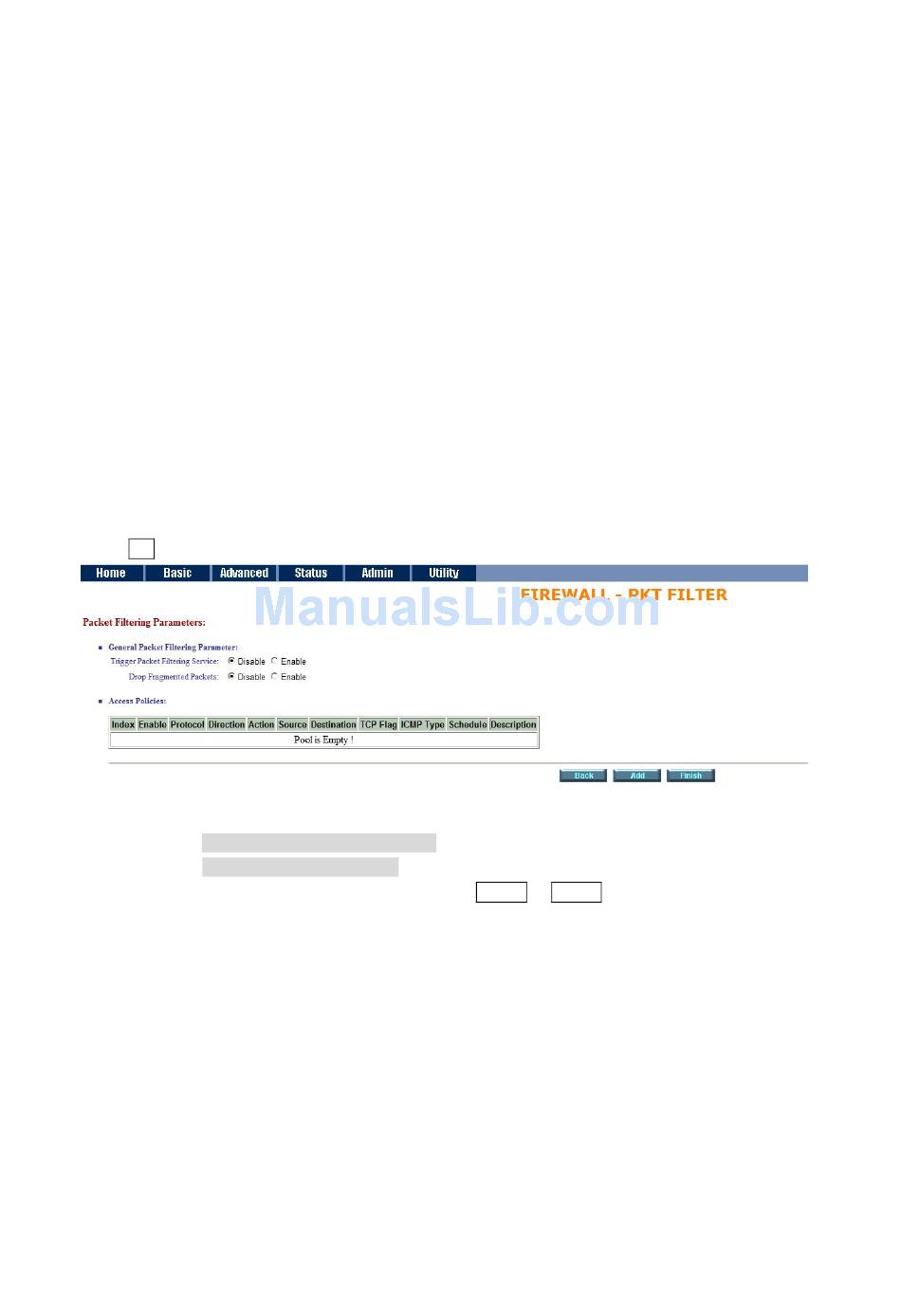

The screen will prompt the configured parameters.
Click Enable on Trigger Packet Filtering Service item, to active the packet filtering service.
Click Enable on Drop Fragmented Packets item, to active the drop fragmented packets operation.
You can modify or delete the access policies by click Modify or Delete command.
