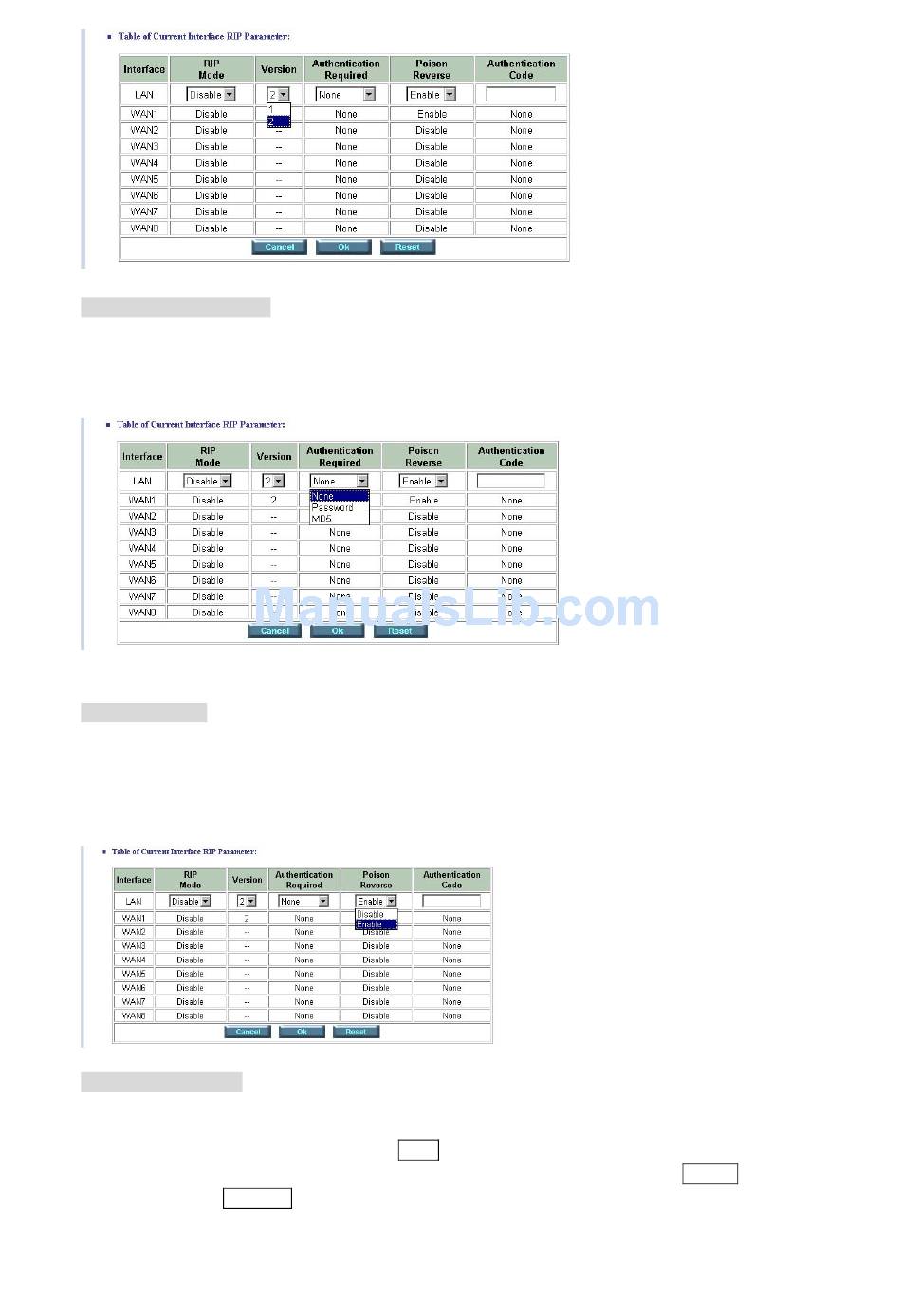

TaiwanSys G.SHDSL.bis User Manual page 53

Authentication required:
None: for RIP, there is no need of authentication code.
Password: the RIP is protected by password/authentication code.
MD5: The RIP will be decoded by MD5 then protected by password/authentication code.
Poison Reserve:
Poison Reserve is for the purpose of promptly broadcast or multicast the RIP while the route is
changed. (ex shuting down one of the routers in routing table)
Enable: the gateway will actively broadcast or multicast the information.
Disable: the gateway will not broadcast or multicast the information.
Authentication code:
You can set up a authentication code here.
After modifying the RIP parameters, press finish.
The screen will prompt the modified parameter. Check the parameters and perss Restart to restart
the router or press Continue to setup another parameters.
G.SHDSL.bis Router User Manual V0.01
52
