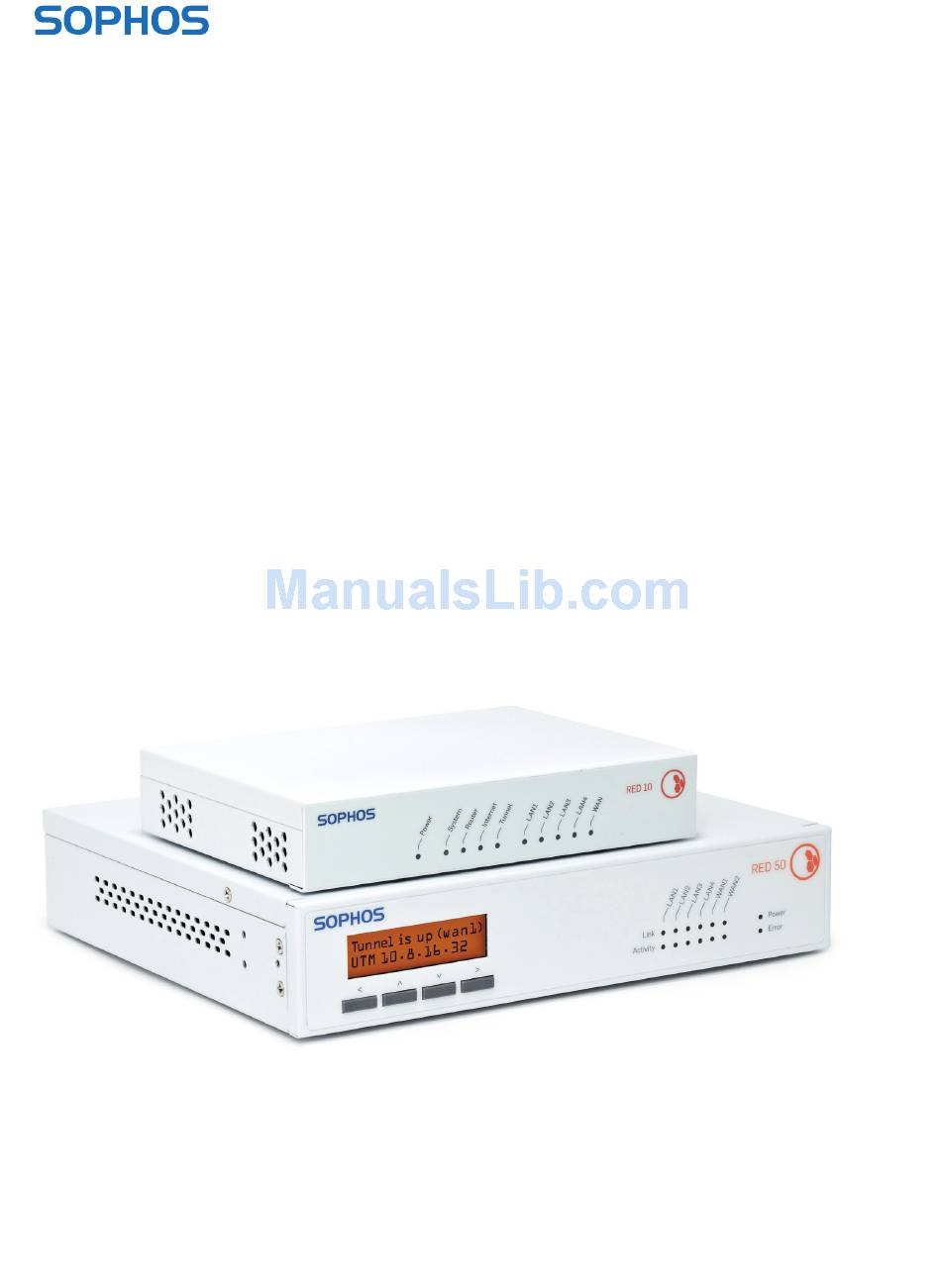

  • Page 1 Operating Instructions Sophos RED Appliances...

  • Page 2: Installation

    Ì Sophos RED Appliances Security Notes & Regulatory Compliance (part of the scope of supply) Ì Sophos RED 10/50 Quick Start Guide (part of the scope of supply depending on RED model) Ì Sophos UTM Administration Guide The instructions must be read carefully prior to using the device and should be kept in a safe place.
  • Page 3 "Controls and LED codes" section below to identify the error. Controls and LED Codes Status signal 4 x 10/100 Base-TX ports Power Power 10/100 Base-TX ports 1 x 10/100 1 x USB port Base-TX port Sophos RED Appliances Operating Instructions...
  • Page 4 LED error codes System Router Internet Tunnel Description DHCP or static address settings failed, default gateway not reachable Internet not reachable No connection to UTM appliance No configuration or firmware update failed flashing On continuously Sophos RED Appliances Operating Instructions...

  • Page 5: Technical Specifications

    Technical specifications Sophos RED 10 Chassis Metal housing (painted white) Mounting Desktop Dimensions (W x H x D) 155 x 117 x 30 mm Weight 510 g Power supply Input: 100-240 V, 50/60 Hz, 0.5 A Output: 12 V Power consumption 7 W (max.)

  • Page 6: Wall Mounting Instructions

    RED 50 is connected. Wall mounting instructions The Sophos RED 50 can be mounted on the wall. Screws are not included in the scope of supply. Only use screws whose dimensions correspond with the mounting holes on the back.
  • Page 7 RED50 Mounting template Do not shrink to fit when printing Sophos RED Appliances Operating Instructions...
  • Page 8 The RED tunnel has been established; $uplink UTM $hostname can be wan1, wan2, or umts; $hostname can be hostname or IP address of UTM appliance ERROR The RED device has not been provisioned correctly Invalid device ID Sophos RED Appliances Operating Instructions...

  • Page 9: Rack Mount Instructions

    Technical specifications Sophos RED 50 Chassis Heavy-duty steel (painted white) Mounting Desktop/wall/rack (optional) Dimensions 216 x 44 x 189 mm (W x H x D) Weight 1,1 kg Power supply Input: 100-240 V, 50-60Hz, 1.3 A Output: 12V 3.33A Power 38.2 W (max.)
  • Page 10 Toll Free: 1-866-866-2802 Tel: +61 2 9409 9100 Email: sales@sophos.com Email: nasales@sophos.com Email: sales@sophos.com.au Boston, USA | Oxford, UK © Copyright 2012. Sophos Ltd. All rights reserved. All trademarks are the property of their respective owners. Sophos Operating Instructions 02.12v1.dNA...
